Electrical installation

Version: Mains power supply

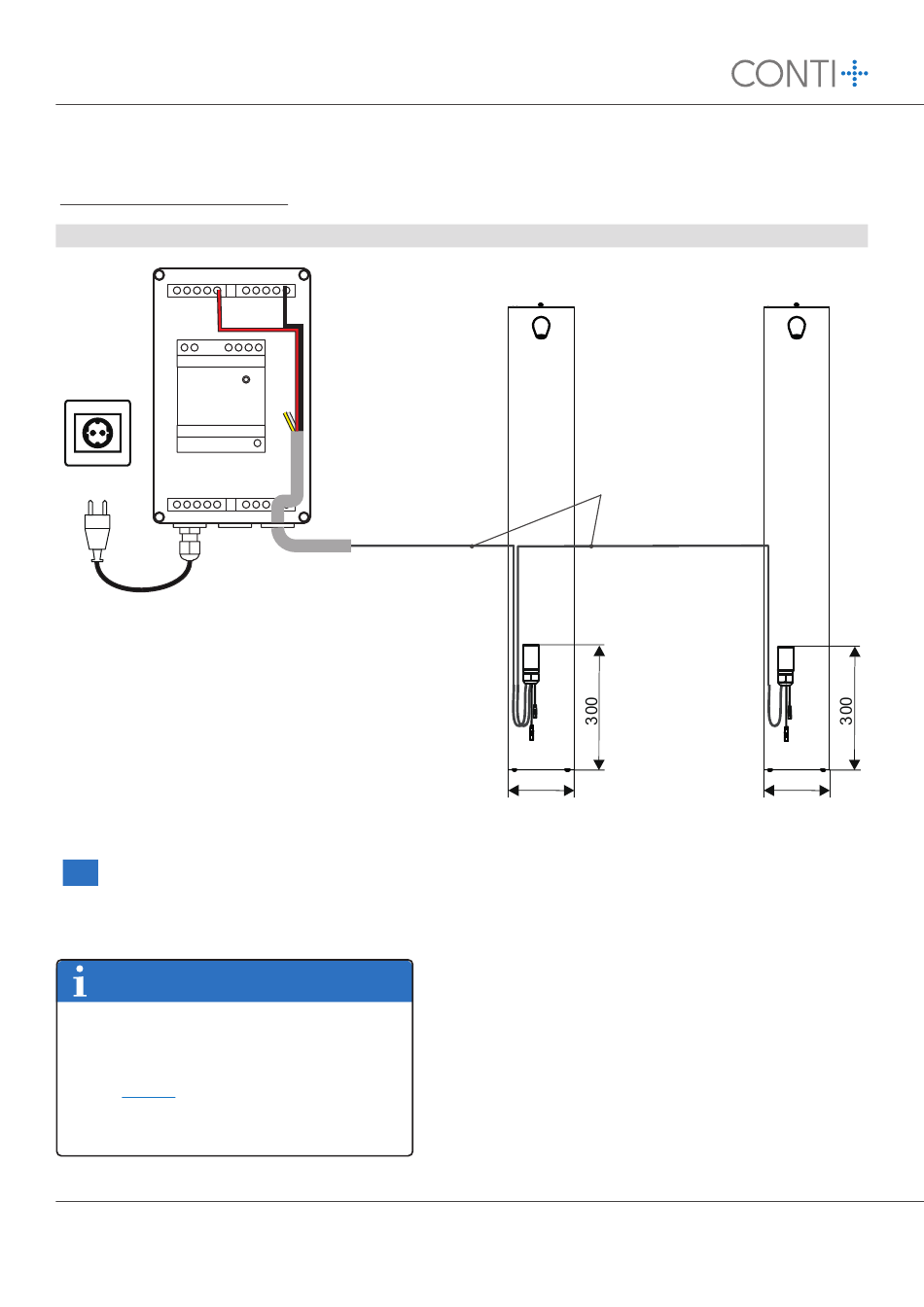

Wiring scheme shower panels

X1:
+12VDC
+V -V
N L
DC OK
X3:
Sektion Sektion
230 V/AC
Topology up to max�
!
100m / 10 fittings
Note!
electrical installation
Mandatory connecting cables are to be laid
and clamped on site in a thermowell / empty
conduit.
▪
The required cable types are specified in the corres-
ponding installation instructions:
Example: J-Y(ST)Y 2x2x0,8 mm²
Electrical wiring may only be carried out by a
qualified electrician in accordance with DIN VDE
105-100.
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
X2:
0VDC
X4:
12 V/DC
Insert the cables into the shower panel from behind� Then
observe the detailed description of the wiring on the follo-
wing pages�
Cable type
J-Y(ST)Y 2x2x0,8mm
220 220
