Water installation

Montagehöhe und Abstände | Installationheight and pitches
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Please note!
!
*900
Water installations are to be carried out only in pressureless condition!
Do not perform a water flow test until a shower head is fitted to the
shower head connector!
Please make sure that the building's pipes are free of impurities
!
before connecting CONTI+ shower elements�

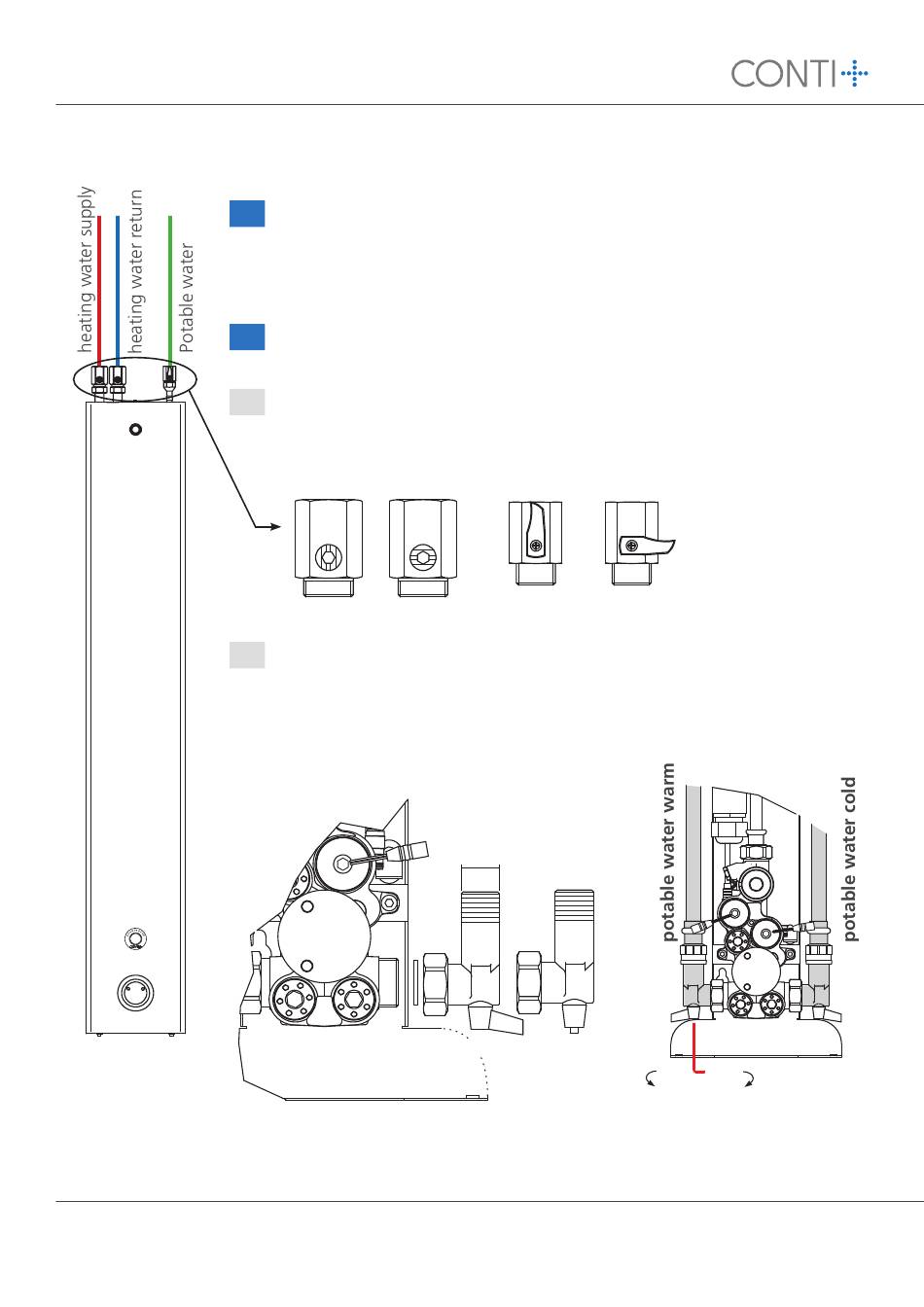

1.
Attach the supplied ball valves with the enclosed seals to the water in-
lets of the shower panel and connect them to the piping on the building
side� Seal properly and ensure that the valves are in the closed position�
* Montageempfehlung siehe:
VDI 3818, VDI 6000 B2 / B6
i
Hinweis!
Wandbeschaffenheit
OPEN CLOSED
Prüfen Sie, ob die Wandbeschaffenheit für die
Montage des Waschplatzverteilers geeignet ist.
Apply pressure to the water system on the building side and then
2.
Gegebenenfalls sind abweichende Schrauben
und Dübel erforderlich. Open the valves on the water inlets of the shower panel and the CONGENIAL
water line�
Check all water-carrying parts for leaks! Observe notes!
*900
TWW
TW
PHW PCW
i
OPEN CLOSED
G1/2B
OPEN CLOSED
open
3 x Schraube 6 x 60
(Torx 25 / 1.4301)
3 x Universaldübel Würth
(W-ZX-KST 8x46)
0901440
Befestigungssatz f.
Duschelement
Note!
Property of wall
Check property of wall before installa�on
Use right screws and wall plugs
SW 2,5
close
Emergency shutt-off from
the outside!
