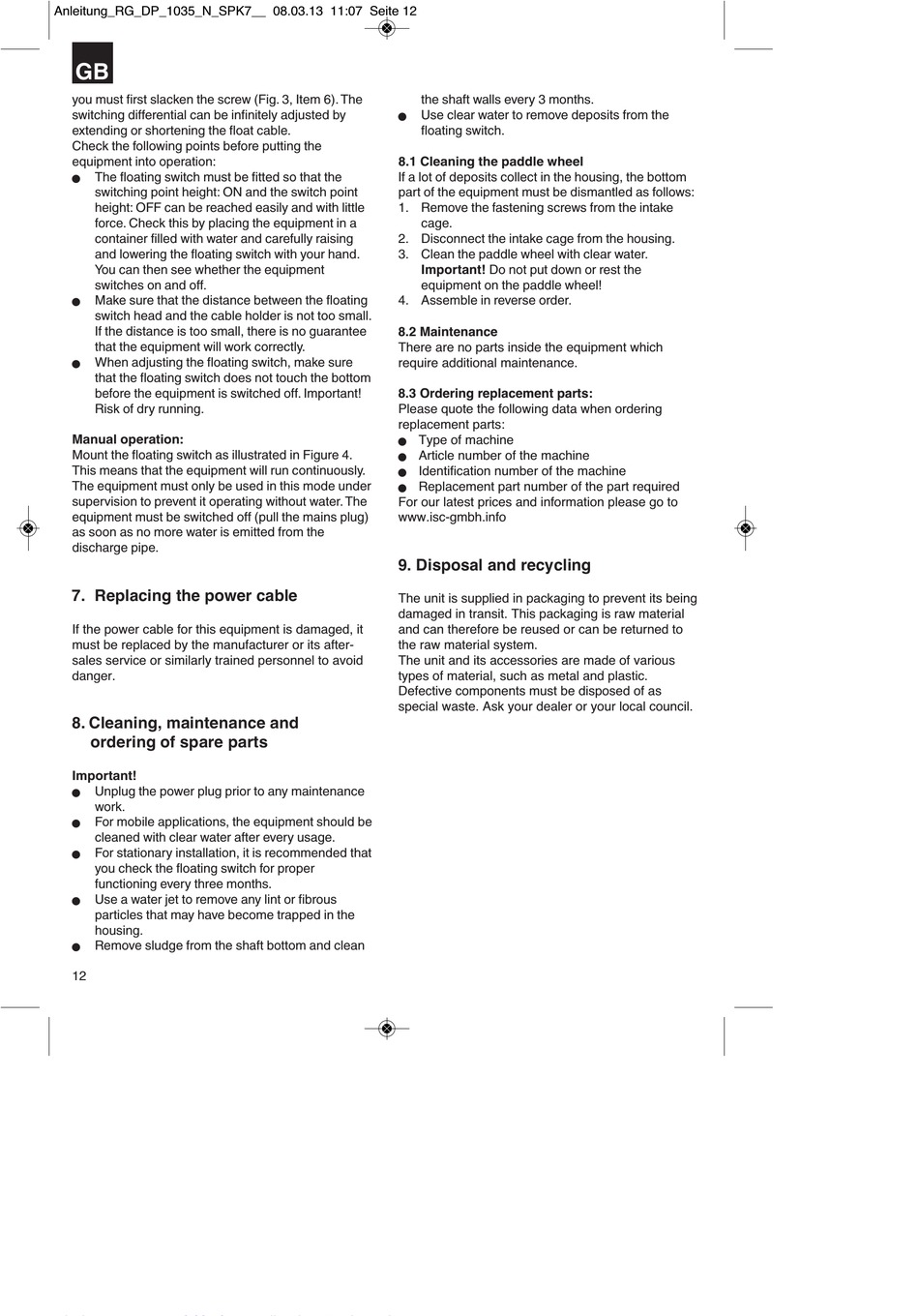

you must first slacken the screw (Fig. 3, Item 6). The
switching differential can be infinitely adjusted by
extending or shortening the float cable.
Check the following points before putting the
equipment into operation:
The floating switch must be fitted so that the
n
switching point height: ON and the switch point
height: OFF can be reached easily and with little
force. Check this by placing the equipment in a
container filled with water and carefully raising
and lowering the floating switch with your hand.
You can then see whether the equipment
switches on and off.
Make sure that the distance between the floating
n
switch head and the cable holder is not too small.
If the distance is too small, there is no guarantee
that the equipment will work correctly.
When adjusting the floating switch, make sure
n
that the floating switch does not touch the bottom
before the equipment is switched off. Important!
Risk of dry running.
Manual operation:
Mount the floating switch as illustrated in Figure 4.
This means that the equipment will run continuously.
The equipment must only be used in this mode under
supervision to prevent it operating without water. The
equipment must be switched off (pull the mains plug)
as soon as no more water is emitted from the
discharge pipe.

7. Replacing the power cable

If the power cable for this equipment is damaged, it
must be replaced by the manufacturer or its after-
sales service or similarly trained personnel to avoid
danger.
8. Cleaning, maintenance and
ordering of spare parts
Important!
Unplug the power plug prior to any maintenance
n
work.
For mobile applications, the equipment should be
n
cleaned with clear water after every usage.
For stationary installation, it is recommended that
n
you check the floating switch for proper
functioning every three months.
Use a water jet to remove any lint or fibrous
n
particles that may have become trapped in the
housing.
Remove sludge from the shaft bottom and clean
n
12
the shaft walls every 3 months.
Use clear water to remove deposits from the
n
floating switch.
8.1 Cleaning the paddle wheel
If a lot of deposits collect in the housing, the bottom
part of the equipment must be dismantled as follows:
1. Remove the fastening screws from the intake
cage.
2. Disconnect the intake cage from the housing.
3. Clean the paddle wheel with clear water.
Important! Do not put down or rest the
equipment on the paddle wheel!
4. Assemble in reverse order.
8.2 Maintenance
There are no parts inside the equipment which
require additional maintenance.
8.3 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
Type of machine
n
Article number of the machine
n
Identification number of the machine
n
Replacement part number of the part required
n
For our latest prices and information please go to
www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste. Ask your dealer or your local council.
