Mounting and Installation
EN
8.3
Installation
EN
EN
EN
EN
EN
EN
EN
EN
Before connection
• Ensure that all voltage sources are switched off and secured against unintentional
EN
reactivation.
EN
• Ensure that the FO splice cassette is clean and undamaged.
EN
• Ensure that the specified minimum bend radius (35 mm) is complied with.
EN
EN
EN
EN
EN
8.3.1 Laying Fibre Optics
EN

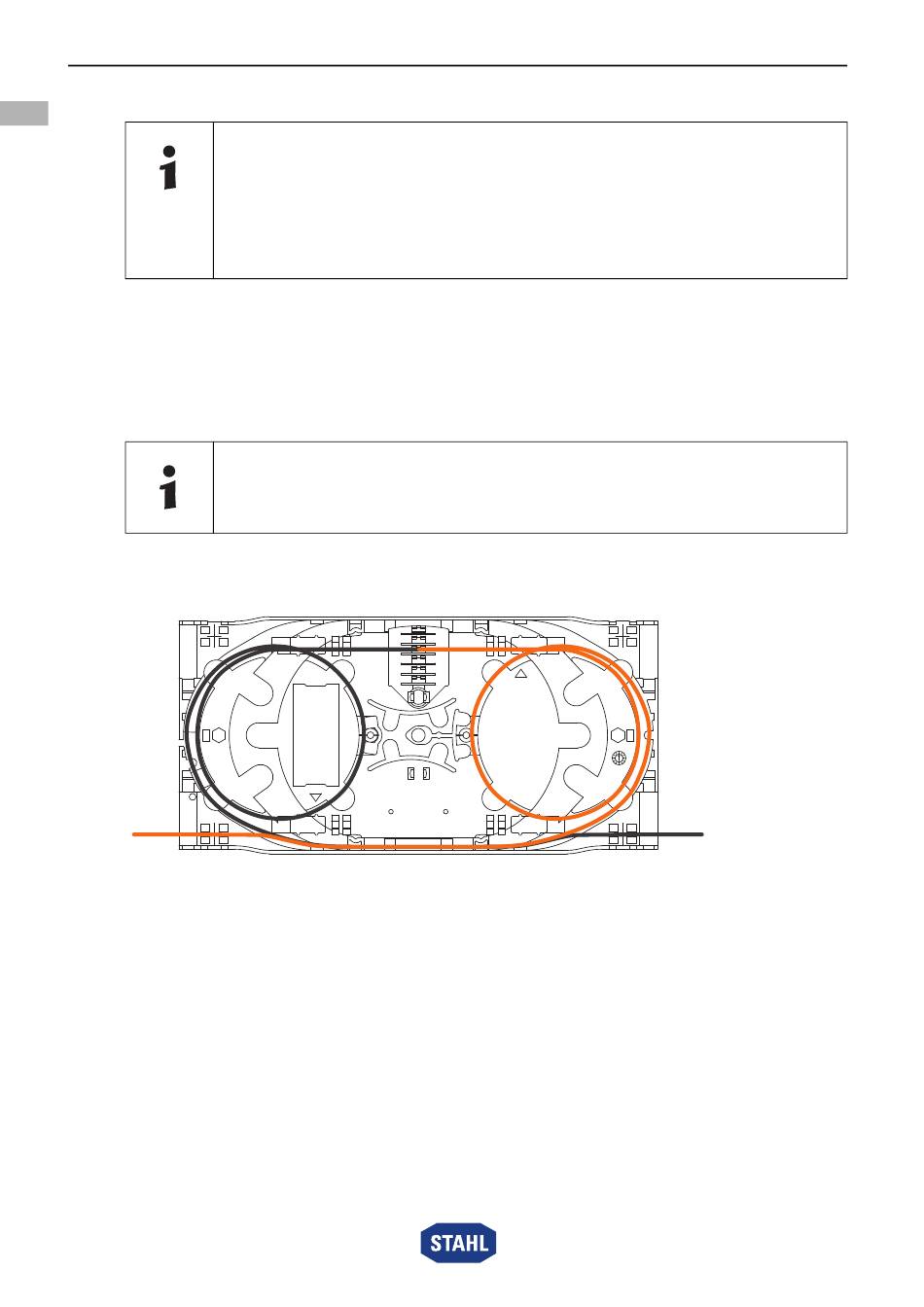

Inside the FO splice cassette, the fibre optics can be laid as follows:
EN
EN
EN
EN
EN
EN
EN
14
Optical Fibre Splice Cassette Zone 1
Series 8186
The fibre optics must only be installed with the associated splice protector
holders with shrink splice protector.
Accessories set (item no. 203682):
1 x splice protector holder, 6 x shrink splice protector, 4 x cable tie
Outside the FO splice cassette, the minimum bend radii specified by the
cable manufacturer must be observed.
21486E00
203681 / 818660300010
2020-06-23·BA00·III·en·04
