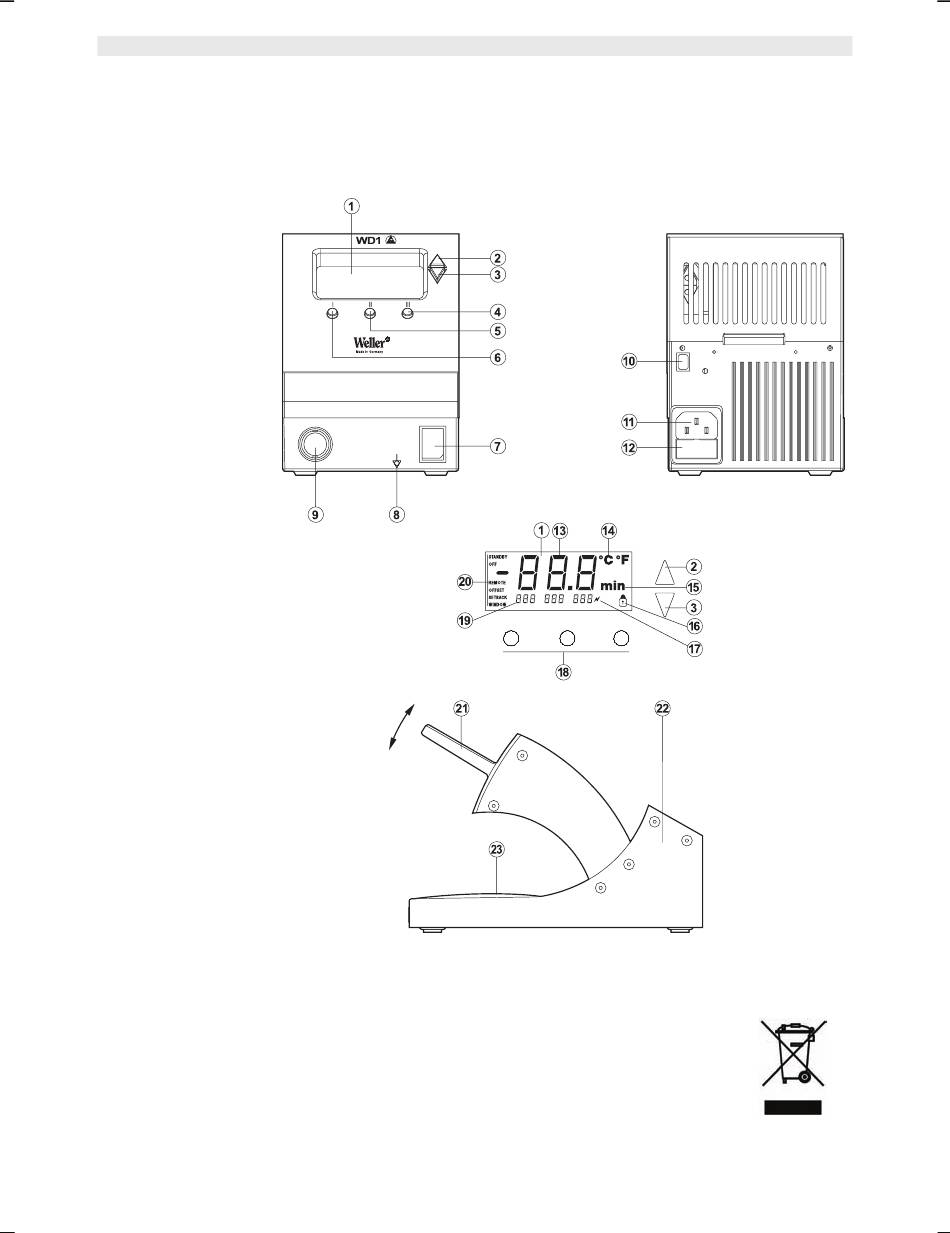

Equipment overview

1 Display
2 UP button
3 DOWN button
4 Temperature button III
5 Temperature button II
6 Temperature button I
7 Mains switch
8 Equipotential-bonding socket
9 Connecting socket for
soldering tool
10 USB interface, B-Mini
(WD 1M)
11 Mains connection
12 Mains system fuse
13 Temperature display
14 Temperature symbol
15 Time function
16 Lock
17 Optical control check
18 Temperature buttons
19 Fixed temperature display
20 Special functions
21 Funnel insert
22 Soldering tip compartment
23 Sponge insert
