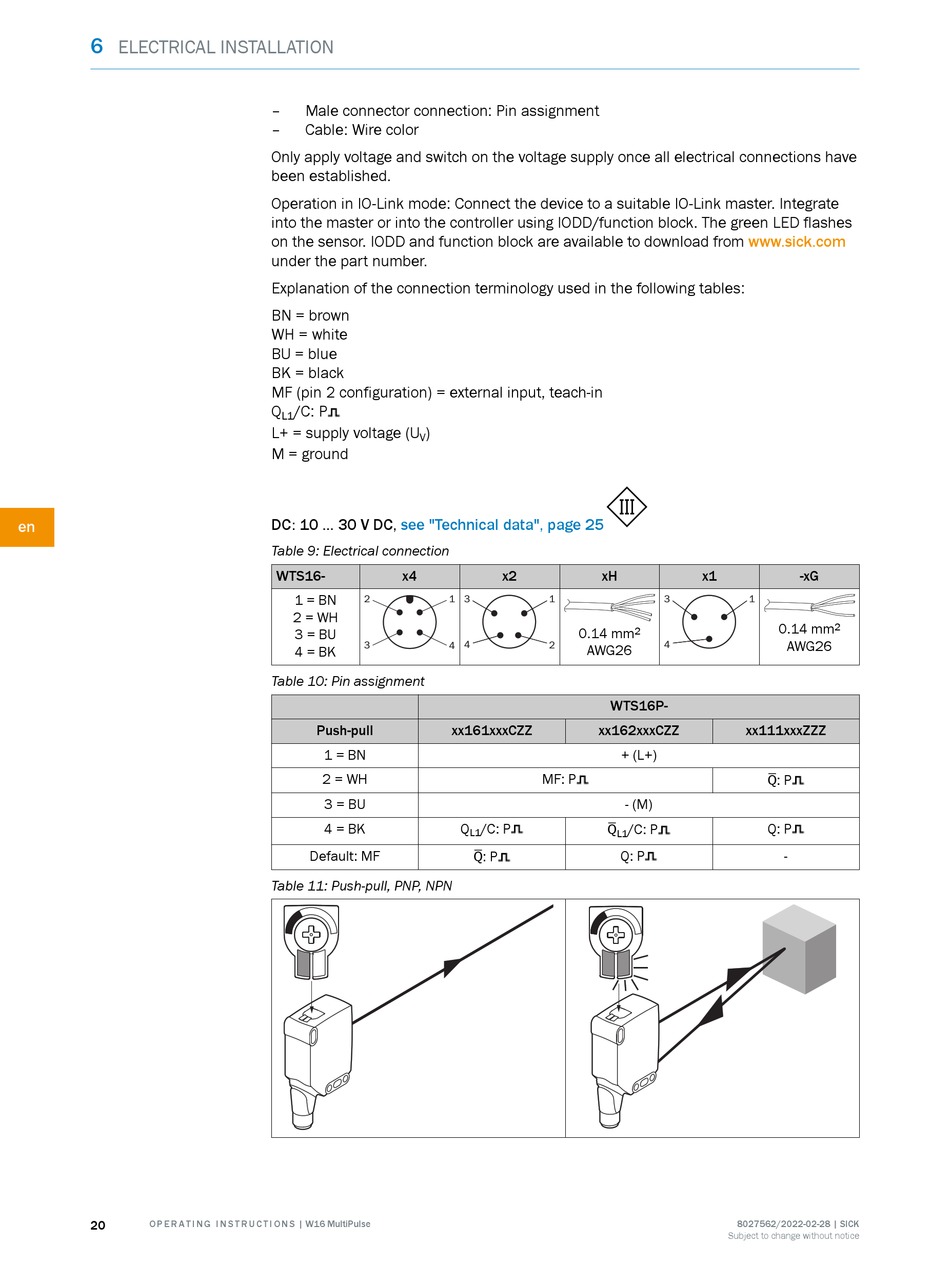

SICK W16 MultiPulse Betriebsanleitung Seite 20

6
ELECTRICAL INSTALLATION
en
20 O P E R A T I N G I N S T R U C T I O N S | W16 MultiPulse
– Male connector connection: Pin assignment
– Cable: Wire color
Only apply voltage and switch on the voltage supply once all electrical connections have
been established.
Operation in IO-Link mode: Connect the device to a suitable IO-Link master. Integrate
into the master or into the controller using IODD/function block. The green LED flashes
on the sensor. IODD and function block are available to download from
under the part number.
Explanation of the connection terminology used in the following tables:
BN = brown
WH = white
BU = blue
BK = black
MF (pin 2 configuration) = external input, teach-in
Q /C: P
L1
L+ = supply voltage (U )
V
M = ground
DC: 10 ... 30 V DC, see "Technical data", page 25
Table 9: Electrical connection
WTS16- x4
1 = BN
2 1
2 = WH
3 = BU
3
4
4 = BK
Table 10: Pin assignment
Push-pull
1 = BN
2 = WH
3 = BU
4 = BK
Default: MF
Table 11: Push-pull, PNP, NPN
x2 xH
3 1
0.14 mm
4 2
AWG26
WTS16P-
xx161xxxCZZ xx162xxxCZZ
+ (L+)
MF: P
- (M)
Q /C: P
/C: P
Q
L1
L1
Q: P
Q: P
www.sick.com
x1 -xG
3 1
0.14 mm
2
AWG26
4
xx111xxxZZZ
Q: P
Q: P
-
