Operation of Control Panel
ON/OFF button
Pressing this button turns the air conditioner on and off.
+ / - button
While in the cooling mode, press "+" or "-" button to increase or decrease
set temperature by 1°C. Set temperature range is 16°C to 30°C. When in the
dry or fan mode, these buttons will not operate.
Fan button
Press this button and the fan speed will change as:
low speed >> medium speed >> high speed >> auto fan

Mode button

Press this button and the mode will change as:
COOL >> DRY >> FAN
COOL: Under this mode, cool mode indicator will be on.
Display panel displays set temperature.
Temperature setting range is 16°C ~ 30°C.
DRY: Under this mode, dry mode indicator will be on.
Display panel won't display.
FAN: Under this mode, only the fan will work. Fan mode indicator will go
on. Display panel won't display.
Sleep Button
• Press sleep button to enter into sleep mode.
• If the unit is operating in the cooling mode, after sleep mode is started
up, preset temperature will increase by 1°C within 1 hour ;preset
temperature will increase by 2°C within 2 hours and then the unit will
operate at this temperature all the time.
• Sleep function is not available for fan mode or drying mode. If sleep
function is started up, the upper indicator will keep the display status.
• Note that the sleep mode can be operated with the Timer off function.
Timer button
• When setting the timer in the off mode, it will work as an ON timer
function. When setting the timer in the on mode, the timer will work
as an OFF timer. Note that the ON timer and OFF timer cannot be set
together.
• Press the timer button to enter the timer set mode. When in the timer
mode, use the – and + buttons to select the time in 0.5 intervals. When
the display shows 10 hours, the + and - buttons will set in 1 hour
intervals. After setting duration time, press timer button again to confirm
the setting.
• When ON timer is set, the unit will start operating when the time set has
elapsed. When OFF timer is set, after setting the timer, the timer display
will be replaced with the temperature after five seconds.
• To cancel the timer, press the timer button again.

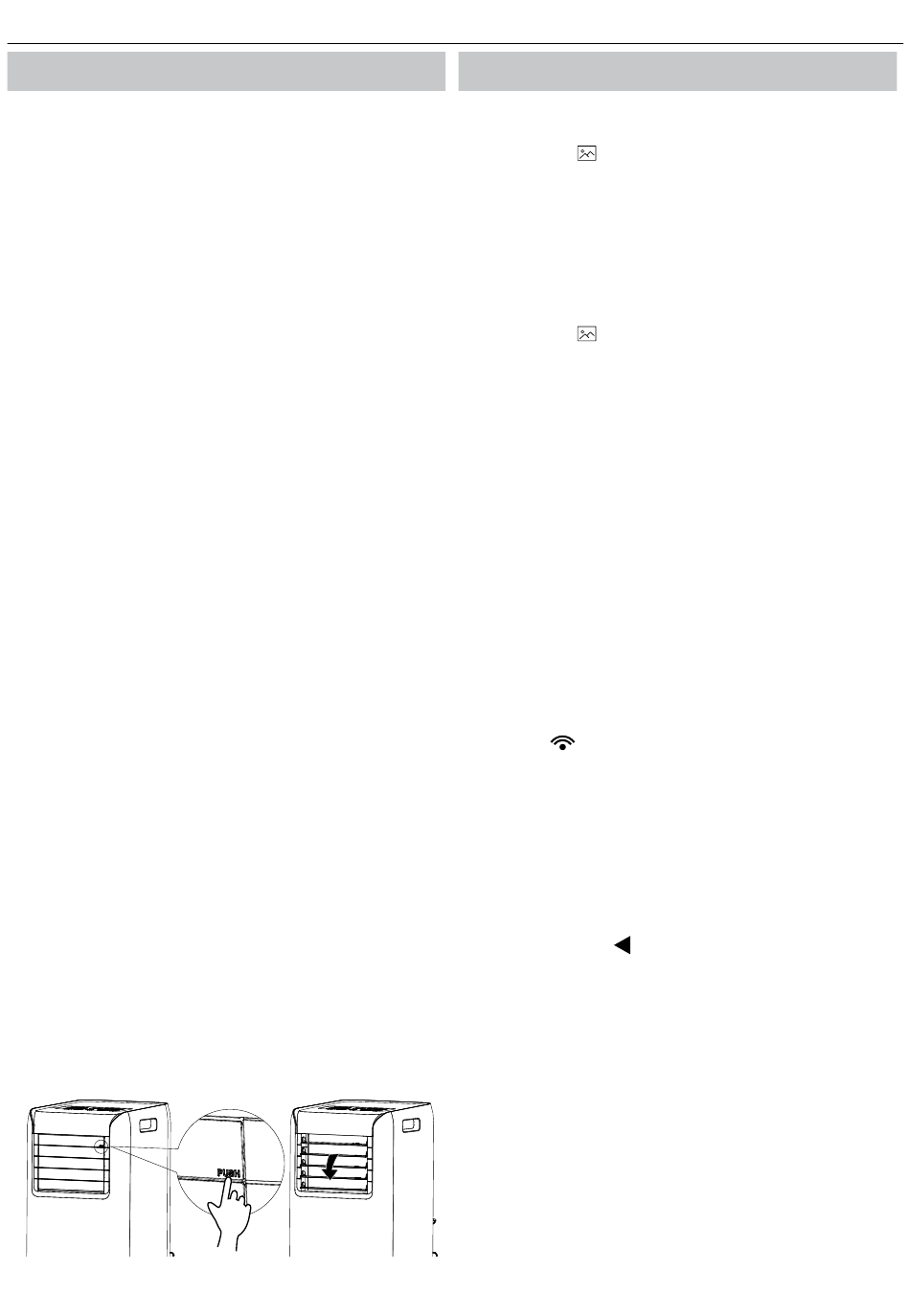

Opening the louver
• Press the lower louver where it is marked with the word "PUSH". This will
open the guide louver. Do this before using the unit.
• In order to allow maximum air flow, it is suggested to open the air guide
louver to the maximum position.

Remote control

Remote control buttons
Refer to the pictures 4 on page 1.
1. ON/OFF
2. MODE
3. +/-
4. FAN
5. X–FAN
6. SLEEP
7. TIMER
Remote control display
Refer to the pictures 5 on page 1.
1. COOL – Cool mode
2. DRY – Dry mode
3. FAN – Fan mode
4. T-ON – Timer on
5. T-OFF – Timer off
6. X–FAN – X-Fan operation
7. SLEEP – Sleep operation
8. LOCK – Lock
9. SPEED – Set fan speed
10. Set temperature
11. Set time
12. Send signal
Remote control functions
NOTE:
ū The remote control may have more functionality than your air
conditioner has. If any additional buttons are pressed, they will have no
affect on the operation of the unit.
ū When power is connected (stand by condition), you can operate the air
conditioner through the remote control.
ū When unit is on, each time you press the button on remote control, the
signal icon " " on the display of remote control will blink once. If the
air conditioner emits a sound, it means the signal has been sent.
ū When unit is off, set temperature will be displayed on the remote control
(If the light of indoor unit display is turned on, the corresponding icon
will be displayed). When unit is on, the icons of the ongoing functions
will be displayed on the remote control.
ON/OFF button
Press this button to turn unit ON/OFF.
MODE button
Pressing this button once can select your required mode as shown below.
(the corresponding icon " " will be lit up after the mode is selected):
COOL >> DRY >> FAN
• When selecting COOL, air conditioner will operate under cooling mode.
Then press + or - button to adjust set temperature. Press FAN button to
adjust fan speed.
• When selecting DRY, air conditioner will operate at low fan speed under
dry mode. In dry mode, fan speed can't be adjusted.
• When selecting FAN, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
+/- button
• Pressing + or - button once will increase or decrease set temperature
by 1°C. Hold + or - button for 2 seconds, set temperature on remote
controller will change quickly. Release the button after your required
set temperature is reached. (Temperature can't be adjusted under auto
mode)
• When setting Timer On or Timer Off, press + or - button to adjust the
time. (See TIMER Button for setting details)
