4. Configuration
IMPORTANT
Master PIN loss
The Master PIN is an essential, integral part of the PIN code keypad se-
curity concept. No more administrative changes can be made to the PIN
code keypad if the Master PIN is lost.
1. Keep the Master PIN in a safe place.
2. Make the Master PIN visible at any time.

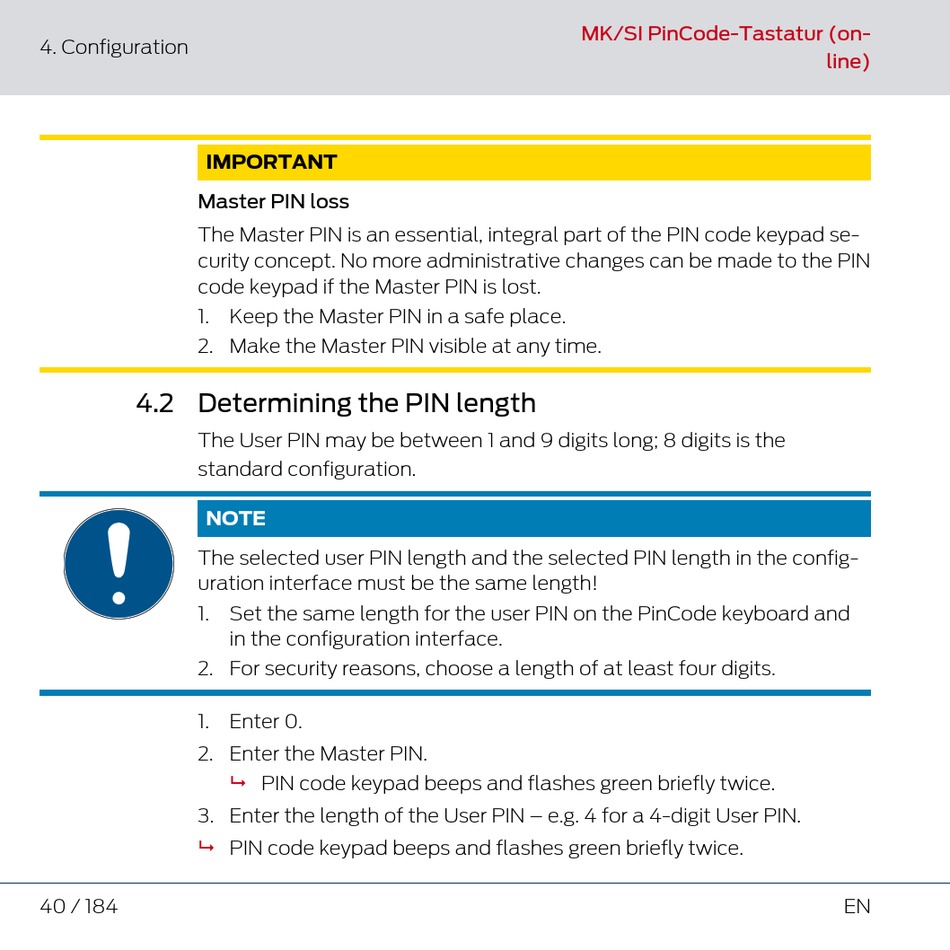

4.2 Determining the PIN length
The User PIN may be between 1 and 9 digits long; 8 digits is the
standard configuration.
NOTE
The selected user PIN length and the selected PIN length in the config-
uration interface must be the same length!
1. Set the same length for the user PIN on the PinCode keyboard and
2. For security reasons, choose a length of at least four digits.
1. Enter 0.
2. Enter the Master PIN.
3. Enter the length of the User PIN – e.g. 4 for a 4-digit User PIN.
9
40 / 184
in the configuration interface.
PIN code keypad beeps and flashes green briefly twice.
9
PIN code keypad beeps and flashes green briefly twice.
MK/SI PinCode-Tastatur (on-
line)
EN
