Installation Layout - V2 NEW ROTOR series Handbuch

Power supply
Blinker
External Aerial
Digital or key selector
Internal Photocellules
External Photocellules

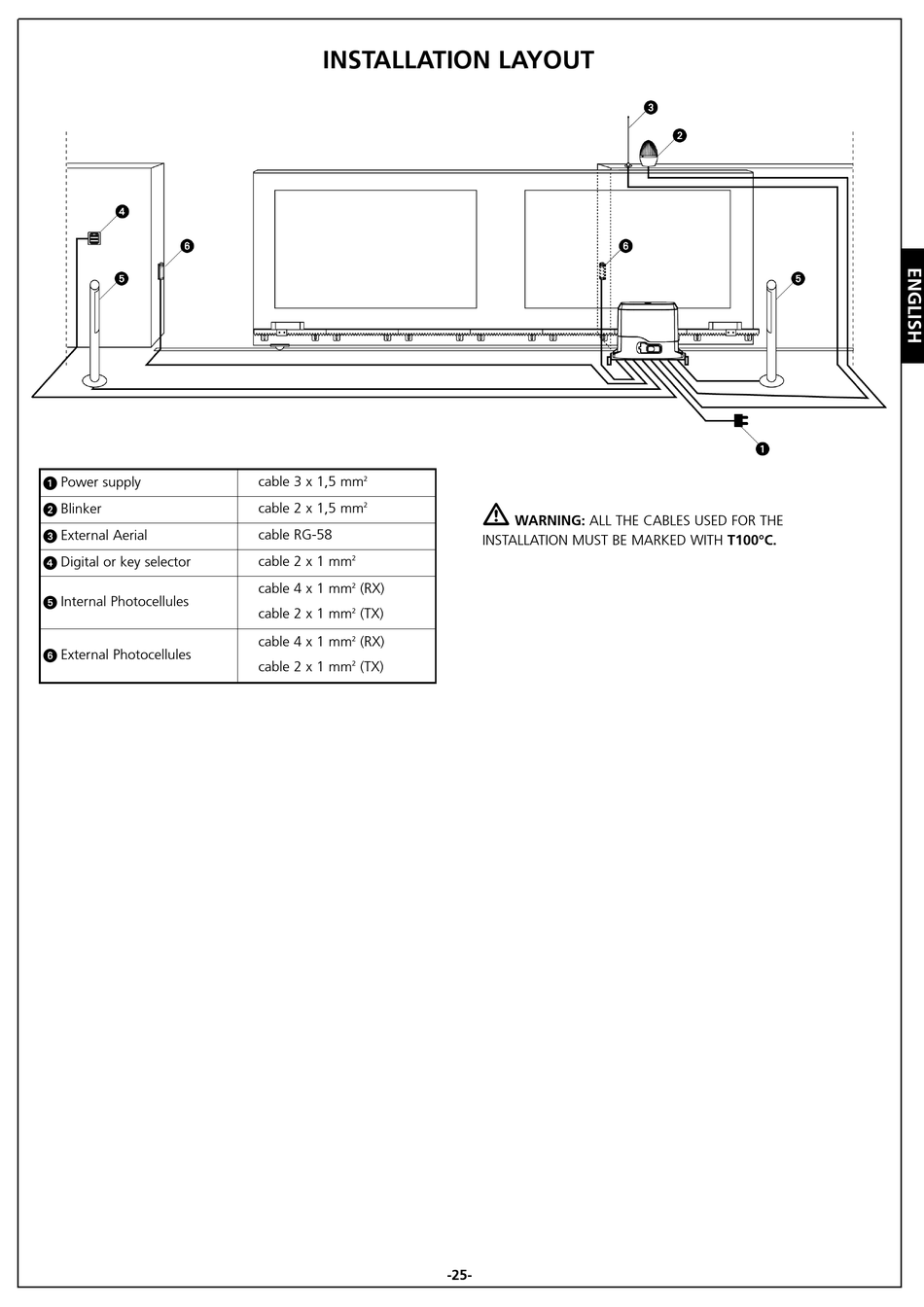

INSTALLATION LAYOUT

cable 3 x 1,5 mm 2
cable 2 x 1,5 mm 2
cable RG-58
cable 2 x 1 mm 2
cable 4 x 1 mm 2 (RX)
cable 2 x 1 mm 2 (TX)
cable 4 x 1 mm 2 (RX)
cable 2 x 1 mm 2 (TX)
m
WARNING: ALL THE CABLES USED FOR THE
INSTALLATION MUST BE MARKED WITH T100°C.
