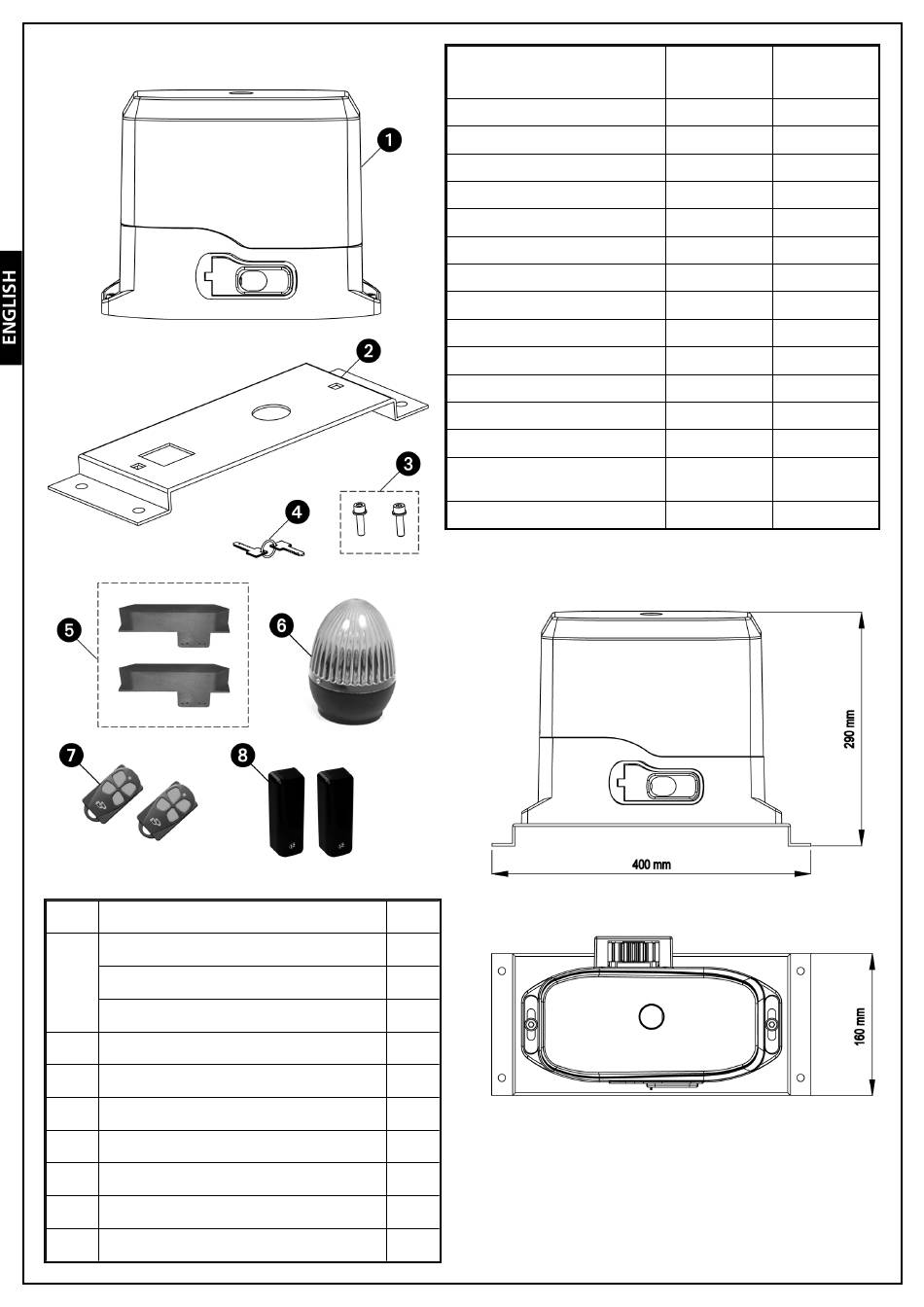

PARTS LIST

Ref Description
• Electro-mechanical actuator
1 • Capacitor
• Control unit
2 Metal fastening plate
3 Cage nuts + Bolts M8 X 30 + Washers
4 Motor overriding key
5 Mechanical limit switch
6 Flashing lamp EGG220
7 Four-channel transmitters TRC-4 DM
8 Pair of photocells SENSIVA-XS
TECHNICAL
SPECIFICATIONS
Gate maximum weight
Power supply
Maximum power
Idling current
Full load current
Capacitor
Gate maximum speed
Maximum thrust
Duty cicle
Pinion
Operation temperature
Weight
Protection
Maximum load on 24 VAC
attachments
Protection fuses
Q.ty
1
1
1
1
2
2
2
1
2
1
-22-
NEW ROTOR
NEW ROTOR
MINI
600 Kg 400 Kg
230VAC / 50Hz 230VAC / 50Hz
500 W 350 W
1.6 A 1.1 A
2 A 1.4 A
14 µF 12 µF
0.16 mt/sec 0.16 mt/sec
480 N 380 N
30% 30%
M4 - Z18 M4 - Z18
-20°C ÷ +60°C -20°C ÷ +60°C
10 Kg 10 Kg
IP44 IP44
3 W 3 W
F1 = 5 A F1 = 5 A
