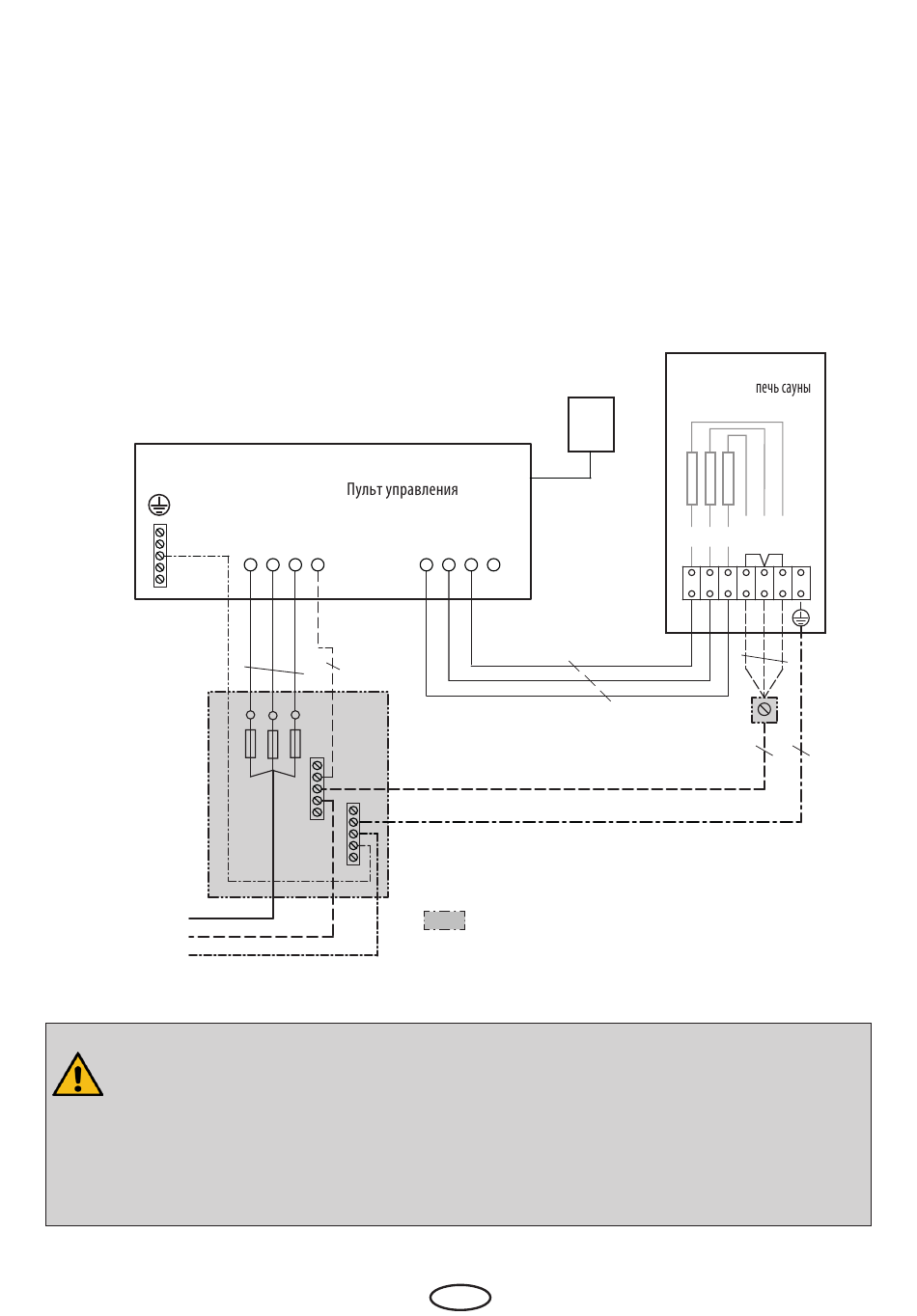

Connection example sauna heater - 230 V 1N AC
only for 6,0 / 7,5 / 9,0 kW
Make sure to observe the following connection instruction.
Since by a 230V 1N connection the N conductor will be fully charged with the total current, it may
not be connected through the control unit, but has to be lead to the mains via the transverse
section.
Important! Connection of the N line from the heater through the control unit may damage the
control unit.
Make sure to observe the minimal wire cross sections.
Saunasteuergerät / Control unit /
Boîtier de commande /
distributor to the
1-phase connection
Fuse 3x16 A
L
230 V AC N
PE (Gr)
Attention! By connection to a 230V 1N AC make sure that both the sauna heater
and the control unit are suitable for such connection. Make sure to use a proper fuse pro-
tection and suitable connection cable. Risk of fire and damages to hardware by improper
connection!
28
L1 L2 L3 N
2,5²
2,5²
Sensor/
Limiter
W V U N
1,5²
1,5²
optional accessories, not included in delivery
EN
Saunaofen / sauna heater
poêle de sauna /
max. 9.0 kW
X Y Z
U V W N N
N
1,5²
45A
6²
PE
(Gr)
6²
