OBJ_BUCH-2877-003.book Page 16 Tuesday, October 4, 2016 4:02 PM
16 | English
21 Wing bolt for auxiliary handle fastening*
22 Button for depth stop adjustment*
23 Depth stop*
24 Universal bit holder*
25 Screwdriver bit*
26 Mounting***

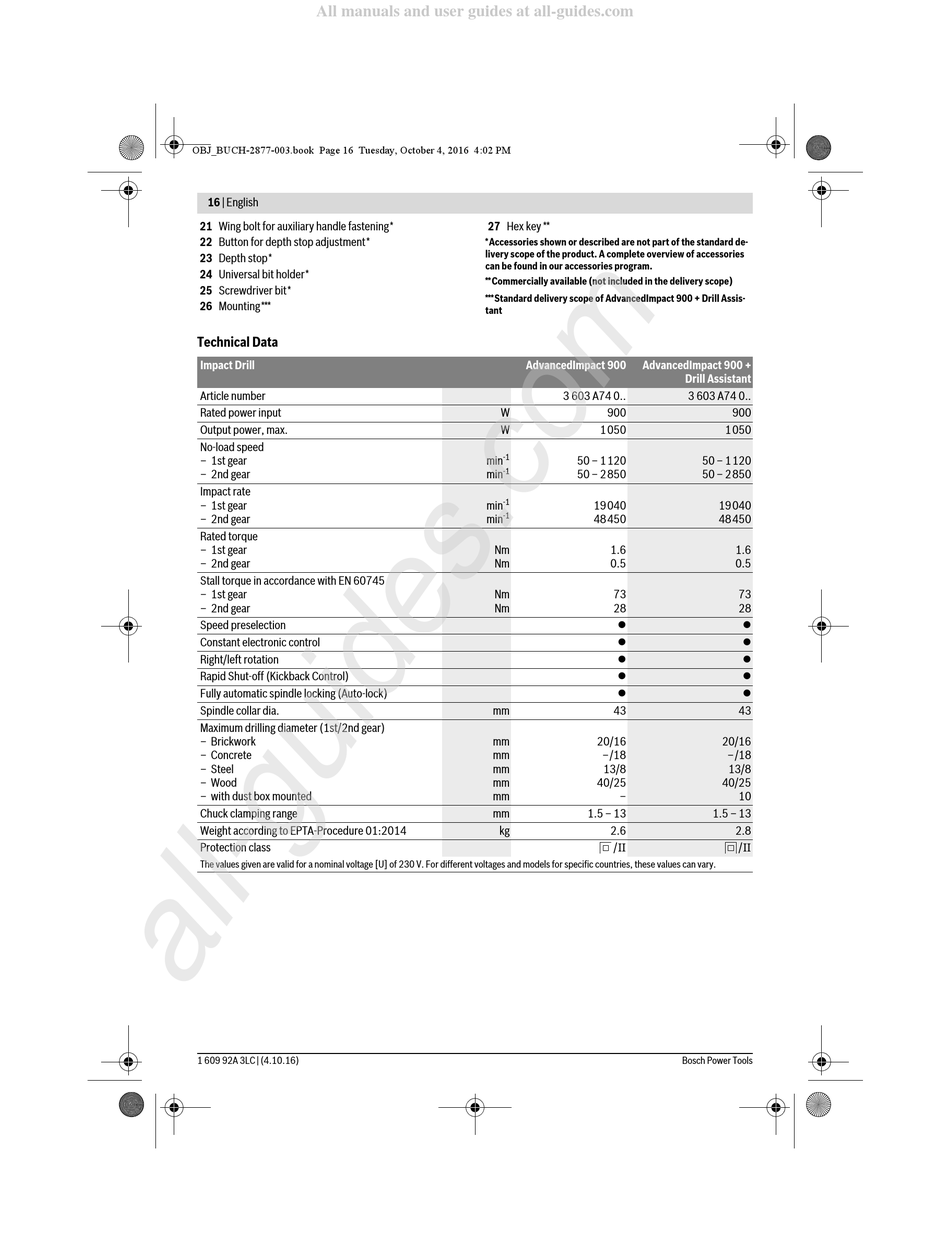

Technical Data

Impact Drill

Article number
Rated power input
Output power, max.
No-load speed
– 1st gear
– 2nd gear
Impact rate
– 1st gear
– 2nd gear
Rated torque
– 1st gear
– 2nd gear
Stall torque in accordance with EN 60745
– 1st gear
– 2nd gear
Speed preselection
Constant electronic control
Right/left rotation
Rapid Shut-off (Kickback Control)
Fully automatic spindle locking (Auto-lock)
Spindle collar dia.
Maximum drilling diameter (1st/2nd gear)
– Brickwork
– Concrete
– Steel
– Wood
– with dust box mounted
Chuck clamping range
Weight according to EPTA-Procedure 01:2014
Protection class
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
1 609 92A 3LC | (4.10.16)
27 Hex key **
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
**Commercially available (not included in the delivery scope)
***Standard delivery scope of AdvancedImpact 900 + Drill Assis-
tant
AdvancedImpact 900 AdvancedImpact 900 +
3 603 A74 0..
W 900
W 1050
-1
min 50 – 1120
-1
min 50 – 2850
-1
min 19040
-1
min 48450
Nm 1.6
Nm 0.5
Nm 73
Nm 28





mm 43
mm 20/16
mm –/18
mm 13/8
mm 40/25
mm –
mm 1.5 – 13
kg 2.6
/II
Drill Assistant
3 603 A74 0..
900
1050
50 – 1120
50 – 2850
19040
48450
1.6
0.5
73
28





43
20/16
–/18
13/8
40/25
10
1.5 – 13
2.8
/II
Bosch Power Tools
