5.3. IR Pin Definition

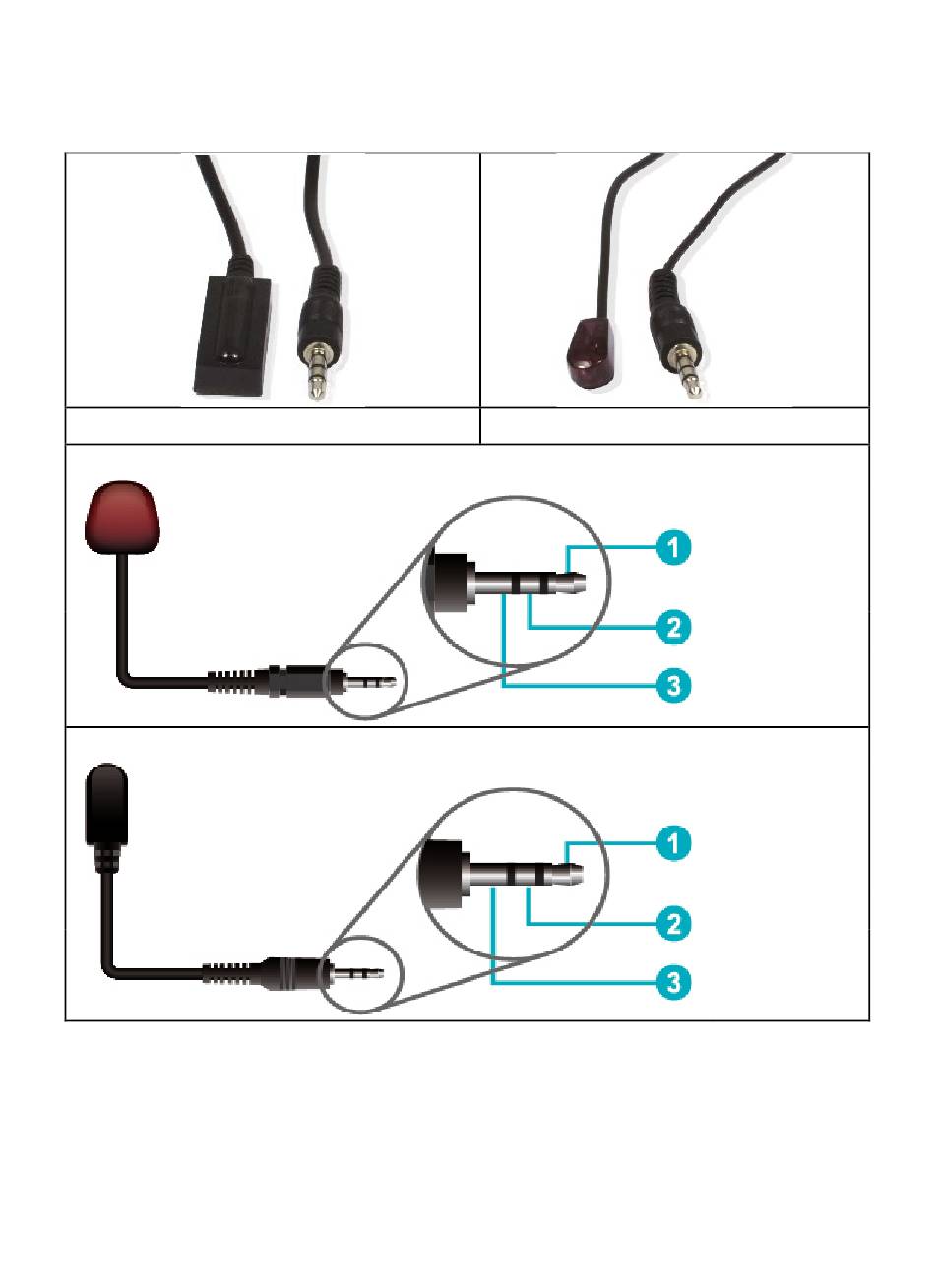

Die Definition des IR-Empfängers und des Blaster-Pins lautet wie folgt:
IR RECEIVER
IR Blaster
IR Empfänger
Note:
When the angle between the IR receiver and the remote control is
± 45°, the transmission distance is 0-5 meters; when the angle between
the IR receiver and the remote control is ± 90°, the transmission
distance is 0-8 meters.
IR BLASTER
12
IR Blaster
Signal
Energie
NC
IR Signal
Energie
Erdung
