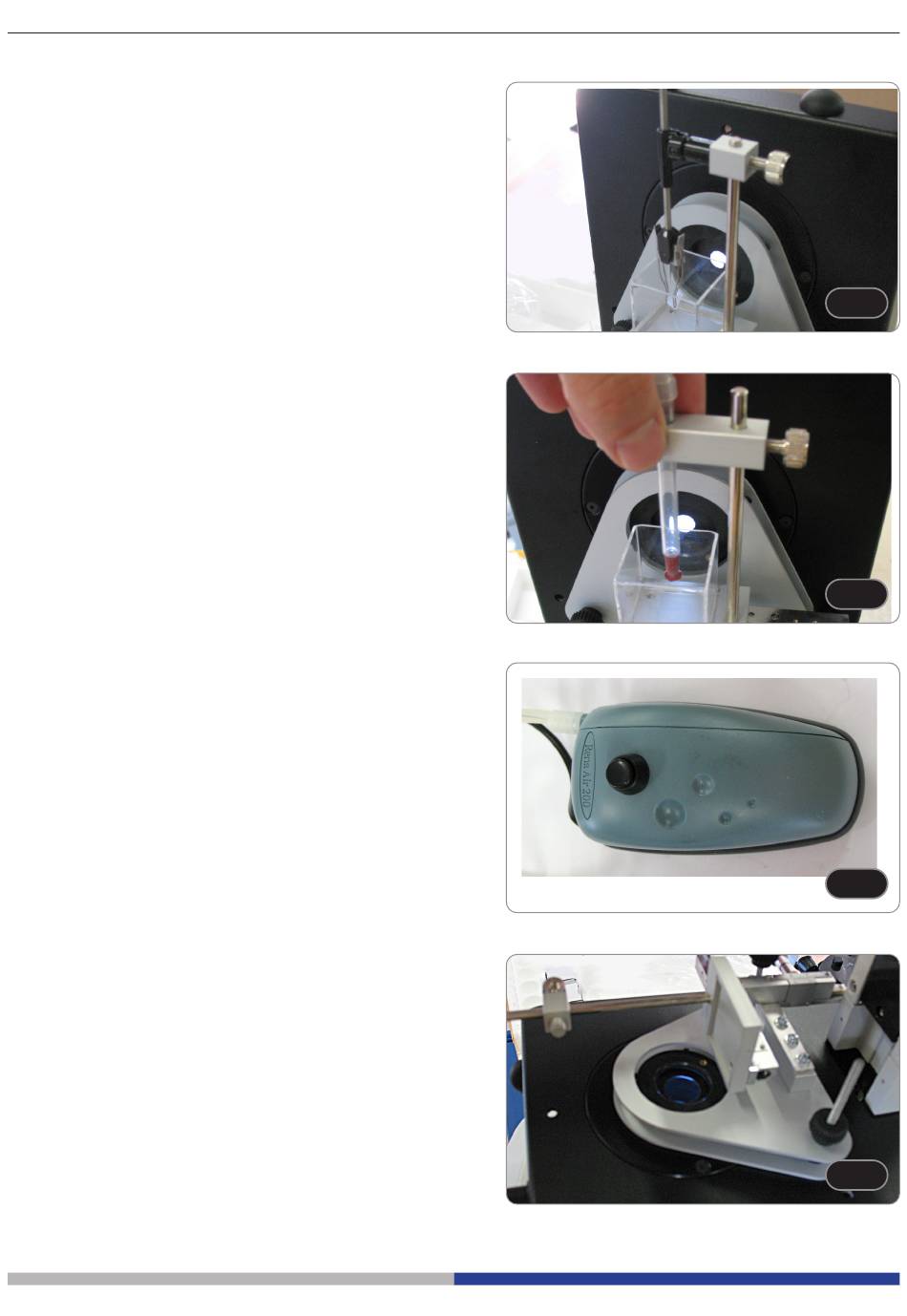

5. Install the jewel clip on the vertical rod, in order to hold the
sample inside the immersion cell. (Fig. 33)
10.5 Immersion analysis with translating holder and vac-
uum pick up
• ST-203 + ST-204 + ST-207 + ST-205 are needed.
1. Install the accessories as described in chapter 10.4.
2. Insert the adapter for the vacuum pick-up pen on the vertical
rod. (Fig. 34)
3. Switch on the vacuum pump by pressing the black button.
(Fig. 35)
4. Pick up the gem with vacuum by placing it in contact with the
rubber point of the pick-up pen.
10.6 Immersion and polarization analysis with translating
holder
• ST-202 + ST-203 + ST-204 are needed.
1. Install ST-202 as described in chapter 10.1.
2. Screw the analyzer on the bottom of the head. (Fig. 27)
3. Stack the translating holder and fix it with the spacers. (Fig.
36)
Page 20
F ig. 33 F ig. 33
F ig. 34 F ig. 34
F ig. 35 F ig. 35
F ig. 36 F ig. 36
