ENGLISH

13.3 Monitoring from Web APP

Via the WebAPP, to monitor the operating status of an installation component already entered:
1. Click on the desired Installation.
2. Click on the desired component.
3. Click on the STATUS menu bar to view the main parameters of the component.

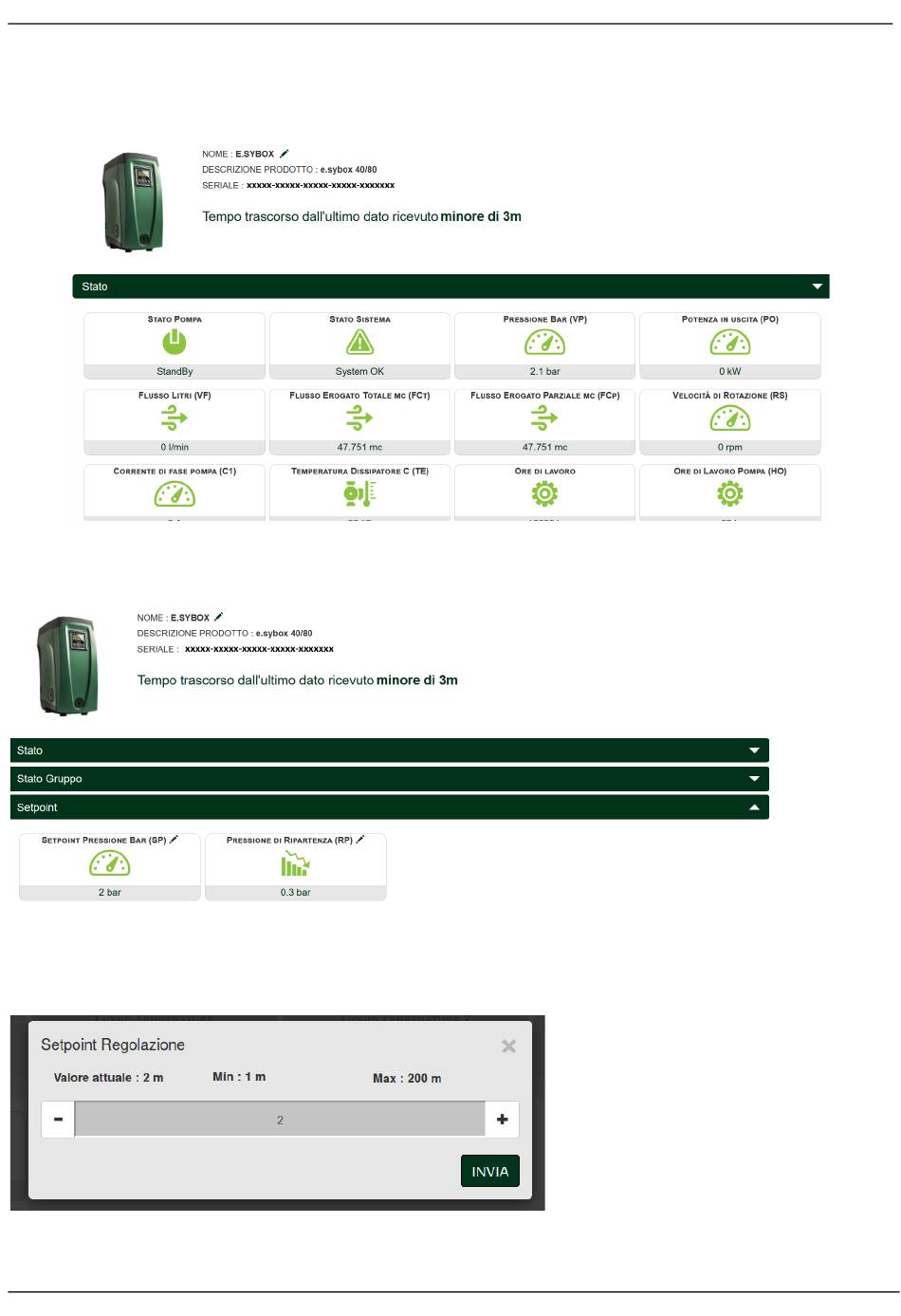

Figure 11: WebAPP – Monitoring

13.4 Changing parameters via Web APP.

To change a parameter in remote mode, proceed as follows:
1. Click on the Configuration menu bar.
Figure 12: WebAPP - Control
2. Click on the parameter to be edited and change its value by clicking:
+ to increase the value,
- to decrease the value.
3. Click Enter to confirm the change and send the command.
Figure 13: WebAPP - Parameter adjustment
