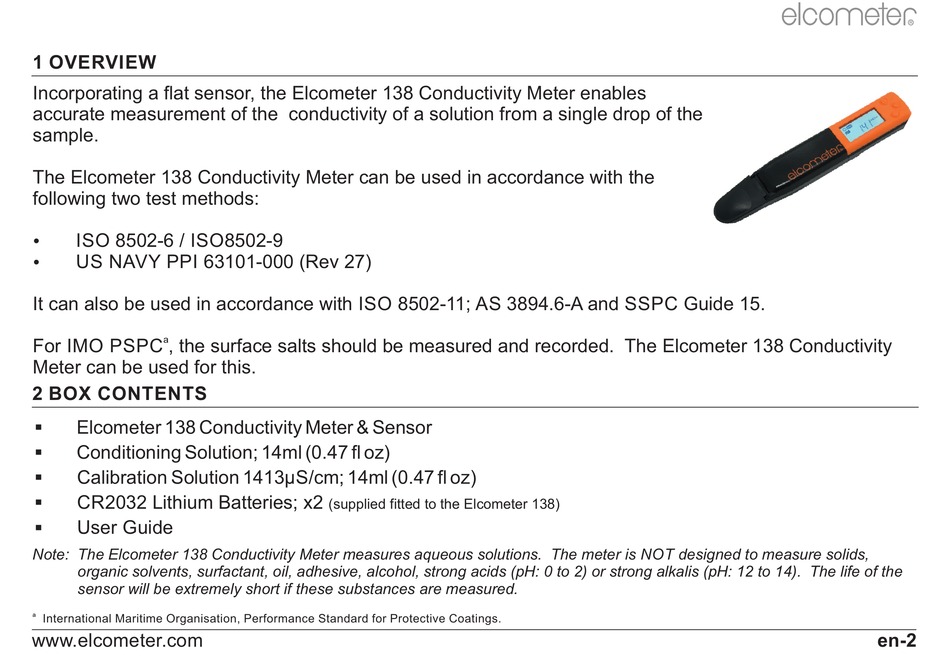

1 OVERVIEW

Incorporating a flat sensor, the Elcometer 138 Conductivity Meter enables
accurate measurement of the conductivity of a solution from a single drop of the
sample.
The Elcometer 138 Conductivity Meter can be used in accordance with the
following two test methods:
ISO 8502-6 / ISO8502-9
Ÿ
US NAVY PPI 63101-000 (Rev 27)
Ÿ
It can also be used in accordance with ISO 8502-11; AS 3894.6-A and SSPC Guide 15.
a
For IMO PSPC , the surface salts should be measured and recorded. The Elcometer 138 Conductivity
Meter can be used for this.

2 BOX CONTENTS

Elcometer 138 Conductivity Meter & Sensor
<
Conditioning Solution; 14ml (0.47 fl oz)
<
Calibration Solution 1413µS/cm; 14ml (0.47 fl oz)
<
CR2032 Lithium Batteries; x2
<
User Guide
<
Note: The Elcometer 138 Conductivity Meter measures aqueous solutions. The meter is NOT designed to measure solids,
organic solvents, surfactant, oil, adhesive, alcohol, strong acids (pH: 0 to 2) or strong alkalis (pH: 12 to 14). The life of the
sensor will be extremely short if these substances are measured.
a
International Maritime Organisation, Performance Standard for Protective Coatings.
www.elcometer.com
(supplied fitted to the Elcometer 138)
R
en-2
