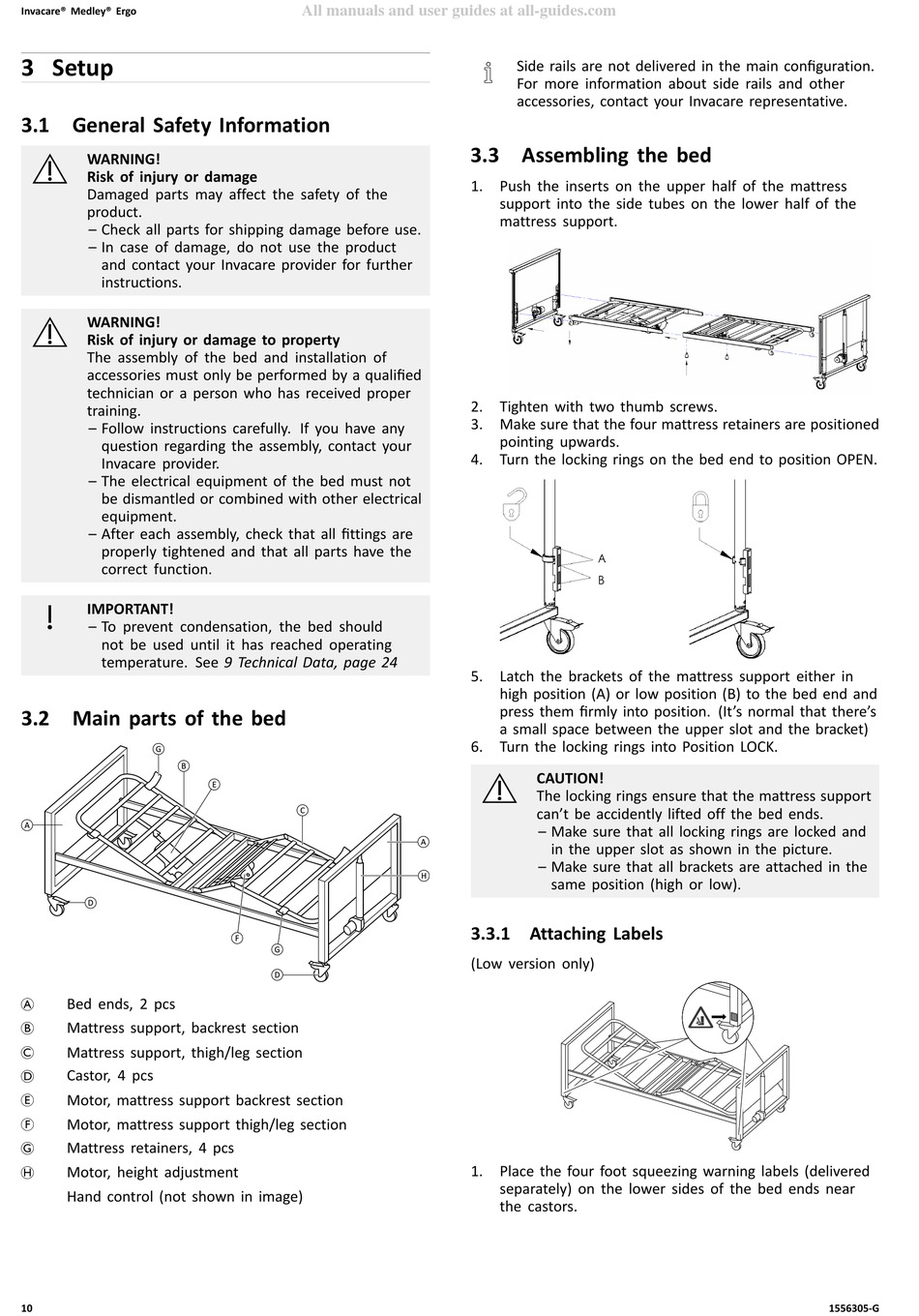

3 Setup

3.1 General Safety Information

WARNING!
Risk of injury or damage
Damaged parts may affect the safety of the
product.
– Check all parts for shipping damage before use.
– In case of damage, do not use the product
and contact your Invacare provider for further
instructions.
WARNING!
Risk of injury or damage to property
The assembly of the bed and installation of
accessories must only be performed by a qualified
technician or a person who has received proper
training.
– Follow instructions carefully. If you have any
question regarding the assembly, contact your
Invacare provider.
– The electrical equipment of the bed must not
be dismantled or combined with other electrical
equipment.
– After each assembly, check that all fittings are
properly tightened and that all parts have the
correct function.
IMPORTANT!
– To prevent condensation, the bed should
not be used until it has reached operating
temperature. See 9 Technical Data, page 24

3.2 Main parts of the bed

Bed ends, 2 pcs
A
Mattress support, backrest section
B
C Mattress support, thigh/leg section
Castor, 4 pcs
D
Motor, mattress support backrest section
E
F Motor, mattress support thigh/leg section
Mattress retainers, 4 pcs
G
H Motor, height adjustment
Hand control (not shown in image)
10
All manuals and user guides at all-guides.com

3.3 Assembling the bed

1. Push the inserts on the upper half of the mattress
2. Tighten with two thumb screws.
3. Make sure that the four mattress retainers are positioned
4. Turn the locking rings on the bed end to position OPEN.
5. Latch the brackets of the mattress support either in
6. Turn the locking rings into Position LOCK.

3.3.1 Attaching Labels

(Low version only)
1. Place the four foot squeezing warning labels (delivered
Side rails are not delivered in the main configuration.
For more information about side rails and other
accessories, contact your Invacare representative.
support into the side tubes on the lower half of the
mattress support.
pointing upwards.
high position (A) or low position (B) to the bed end and
press them firmly into position. (It's normal that there's
a small space between the upper slot and the bracket)
CAUTION!
The locking rings ensure that the mattress support
can't be accidently lifted off the bed ends.
– Make sure that all locking rings are locked and
in the upper slot as shown in the picture.
– Make sure that all brackets are attached in the
same position (high or low).
separately) on the lower sides of the bed ends near
the castors.
1556305-G
