INTERCONNECTION

SPEAKER OUTPUT

5
The speaker outputs are amplified and can be operated in
BLT mode (bridged). It is recommended to connect here a
passive subwoofer bridged (4 Ohms) or an speaker pair (2 - 4
Ohms) for each channel pair.
LINE IN CH1- 6 (low level inputs):
6
If you want to use the signal input section with low level signals (e.g. with the pre-amplifier outputs
from your head unit / car stereo), connect here the RCA plugs accordingly. The inputs can manage
2 - 6 V RMS.
AUX
7
These stereo RCA inputs are suited for an auxiliary low level input signal from an external stereo
pre-amplifier source such as a game console or a media player. The inputs can manage 1 - 8 V RMS.
LINE OUT CH13/14 & CH15/16 (processed by DSP)
8
Use the pre-amplifier RCA outputs for driving an additional amplifier or an active powered subwoofer.
The outputs deliver 5 V RMS Max.
OPT IN
9
The amplifier accepts through its Optical input PCM stereo signals up to 192 kHz / 24 bit sampling
frequency rate. Multi-channel signals coming from audio/video sources (such as the audio tracks of a
film in DVD) can not be reproduced. Connect a fiber optic cable with a TOSLINK connector.
BT
10
This USB input is suited for an external
function with/or adjusting the DSP by an APP through a smart phone/mobile device. The compatible
dongles are BTS,
ask your car audio retailer.
FRONT VIEW
MUSWAY Bluetooth
BTS-HD and BTA2. Check the website "www.musway.de" for more information or

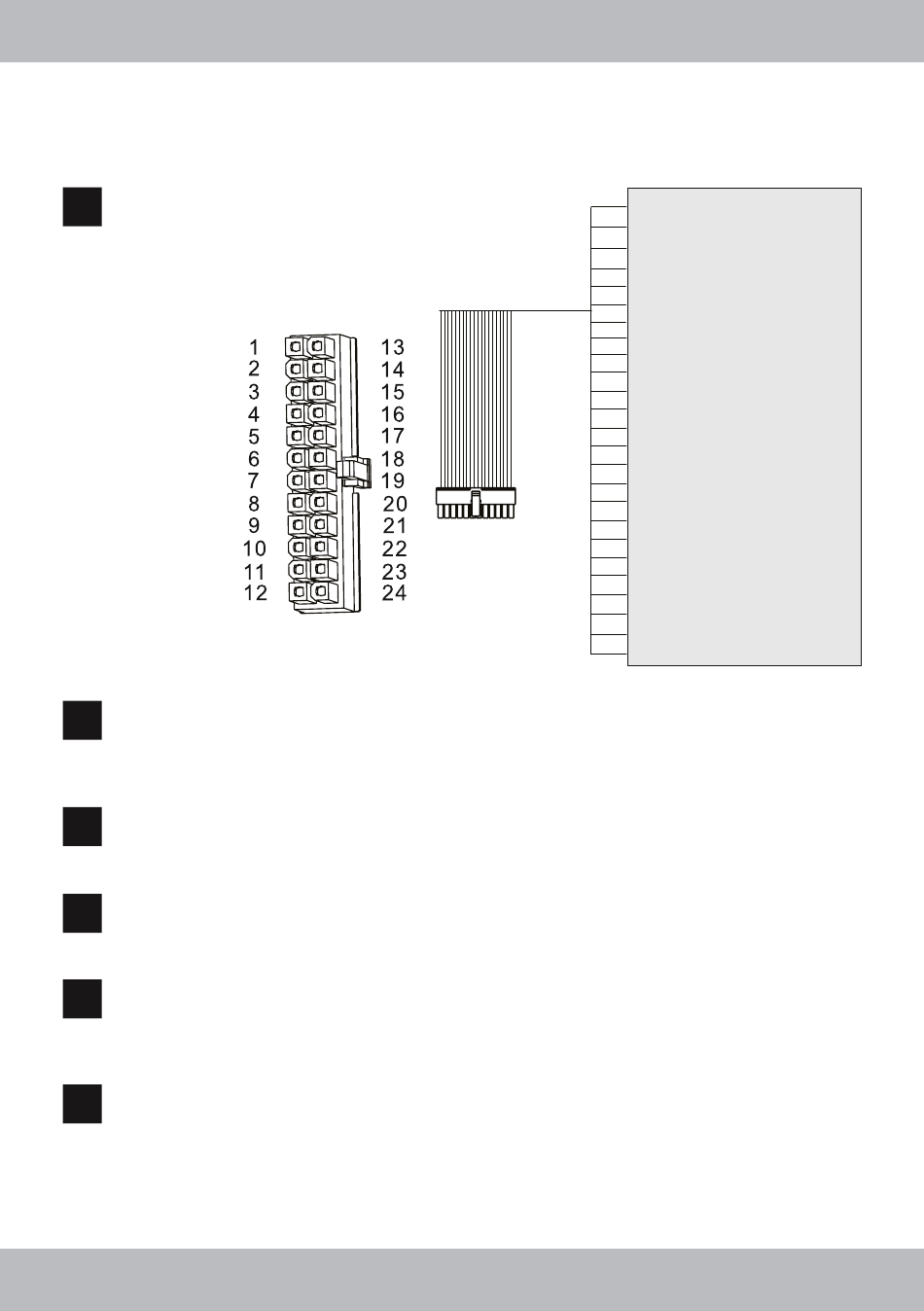

SPEAKER OUTPUT 1 +
1:
SPEAKER OUTPUT 1 –
13:
SPEAKER OUTPUT 2 +
2:
SPEAKER OUTPUT 2 –
14:
SPEAKER OUTPUT 3 +
3:
SPEAKER OUTPUT 3 –
15:
SPEAKER OUTPUT 4 +
4:
SPEAKER OUTPUT 4 –
16:
SPEAKER OUTPUT 5 +
5:
SPEAKER OUTPUT 5 –
17:
SPEAKER OUTPUT 6 +
6:
SPEAKER OUTPUT 6 –
18:
SPEAKER OUTPUT 7 +
7:
SPEAKER OUTPUT 7 –
19:
SPEAKER OUTPUT 8 +
8:
SPEAKER OUTPUT 8 –
20:
SPEAKER OUTPUT 9 +
9:
SPEAKER OUTPUT 9 –
21:
SPEAKER OUTPUT 10 +
10:
SPEAKER OUTPUT 10 –
22:
SPEAKER OUTPUT 11 +
11:
SPEAKER OUTPUT 11 –
23:
SPEAKER OUTPUT 12 +
12:
SPEAKER OUTPUT 12 –
24:
dongle with wireless audio streaming
®
