ENGLISH

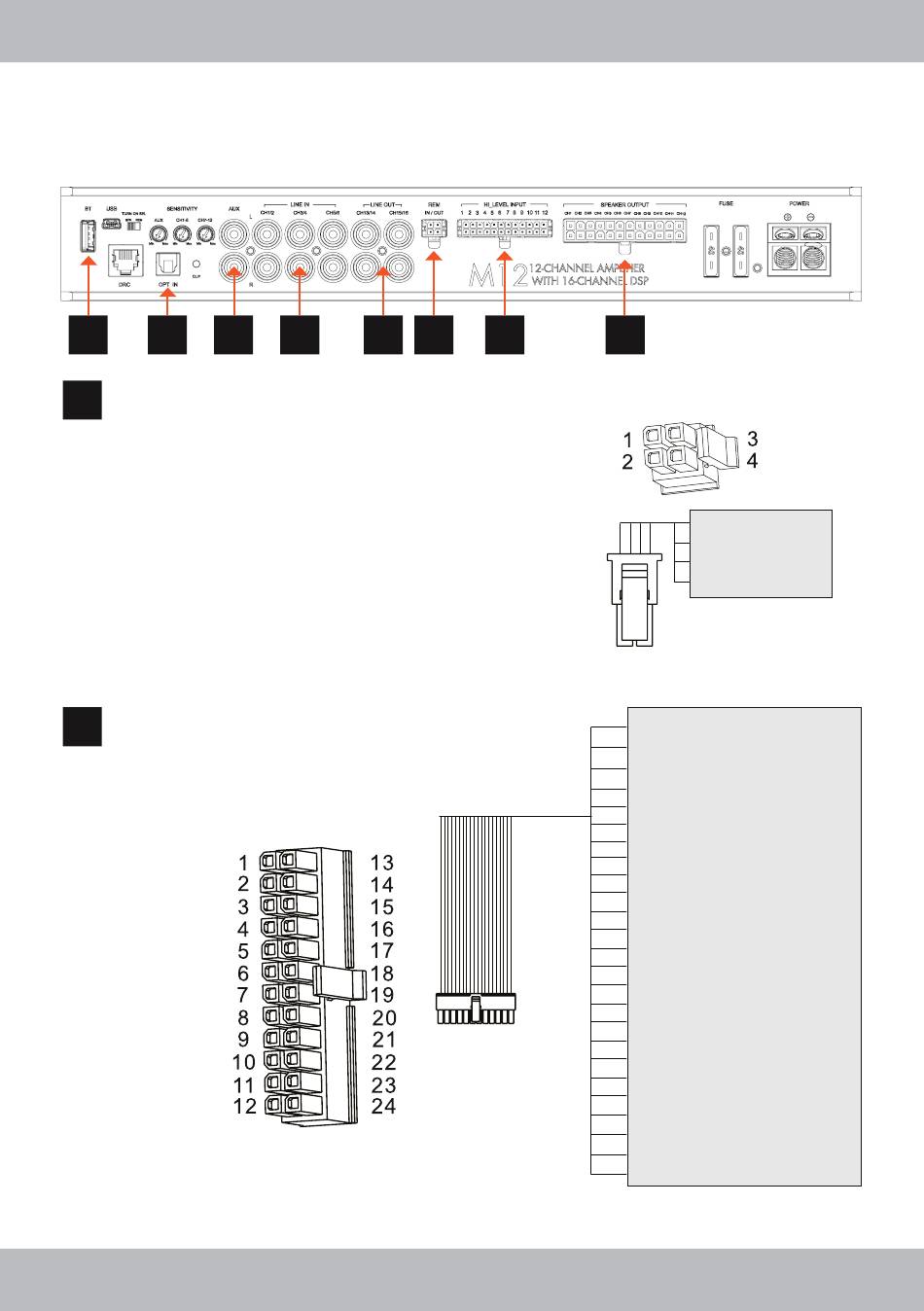

INTERCONNECTION
10
9
REM IN / OUT
3
REMOTE-IN is suited to turn on the M12 if a turn-on signal
from the head unit / car stereo is available. The voltage must
be between 7.5 and 16 VDC.
REMOTE-OUT is suited to turn on external amplifiers. The
200 mA output current capability can also drive an auto-mo-
tive relay.
REVERSE SIG-IN is suited to switch the M12 from Bluetooth
mode to car host mode if the reverse gear is engaged. This
means that the audio signals from the parking sensors can be
heard through the sound system. Connect the +12 V reverse
gear signal or power supply for the reversing light here.
GND (Ground) must be connected with a suitable contact
ground point on the vehicle's chassis
HI LEVEL INPUT
4
Input for the enclosed 24-pole cable adapter. Connect the
speaker outputs from your head unit / car stereo to the cable
adapter accordingly. The inputs can manage 8 - 24 V RMS.
IMPORTANT
CH1 features the Auto Turn-On function.
8
7
6
8
FRONT VIEW
NOTE:
3
4
®
5
FRONT VIEW
1:
GND
2:
REMOTE-OUT
3:
REVERSE SIG-IN
4:
REMOTE-IN
1:
HIGH LEVEL INPUT 1 +
13:
HIGH LEVEL INPUT 1 –
2:
HIGH LEVEL INPUT 2 +
14:
HIGH LEVEL INPUT 2 –
3:
HIGH LEVEL INPUT 3 +
15:
HIGH LEVEL INPUT 3 –
4:
HIGH LEVEL INPUT 4 +
16:
HIGH LEVEL INPUT 4 –
5:
HIGH LEVEL INPUT 5 +
17:
HIGH LEVEL INPUT 5 –
6:
HIGH LEVEL INPUT 6 +
18:
HIGH LEVEL INPUT 6 –
7:
HIGH LEVEL INPUT 7 +
19:
HIGH LEVEL INPUT 7 –
8:
HIGH LEVEL INPUT 8 +
20:
HIGH LEVEL INPUT 8 –
9:
HIGH LEVEL INPUT 9 +
21:
HIGH LEVEL INPUT 9 –
10:
HIGH LEVEL INPUT 10 +
22:
HIGH LEVEL INPUT 10 –
11:
HIGH LEVEL INPUT 11 +
23:
HIGH LEVEL INPUT 11 –
12:
HIGH LEVEL INPUT 12 +
24:
HIGH LEVEL INPUT 12 –
