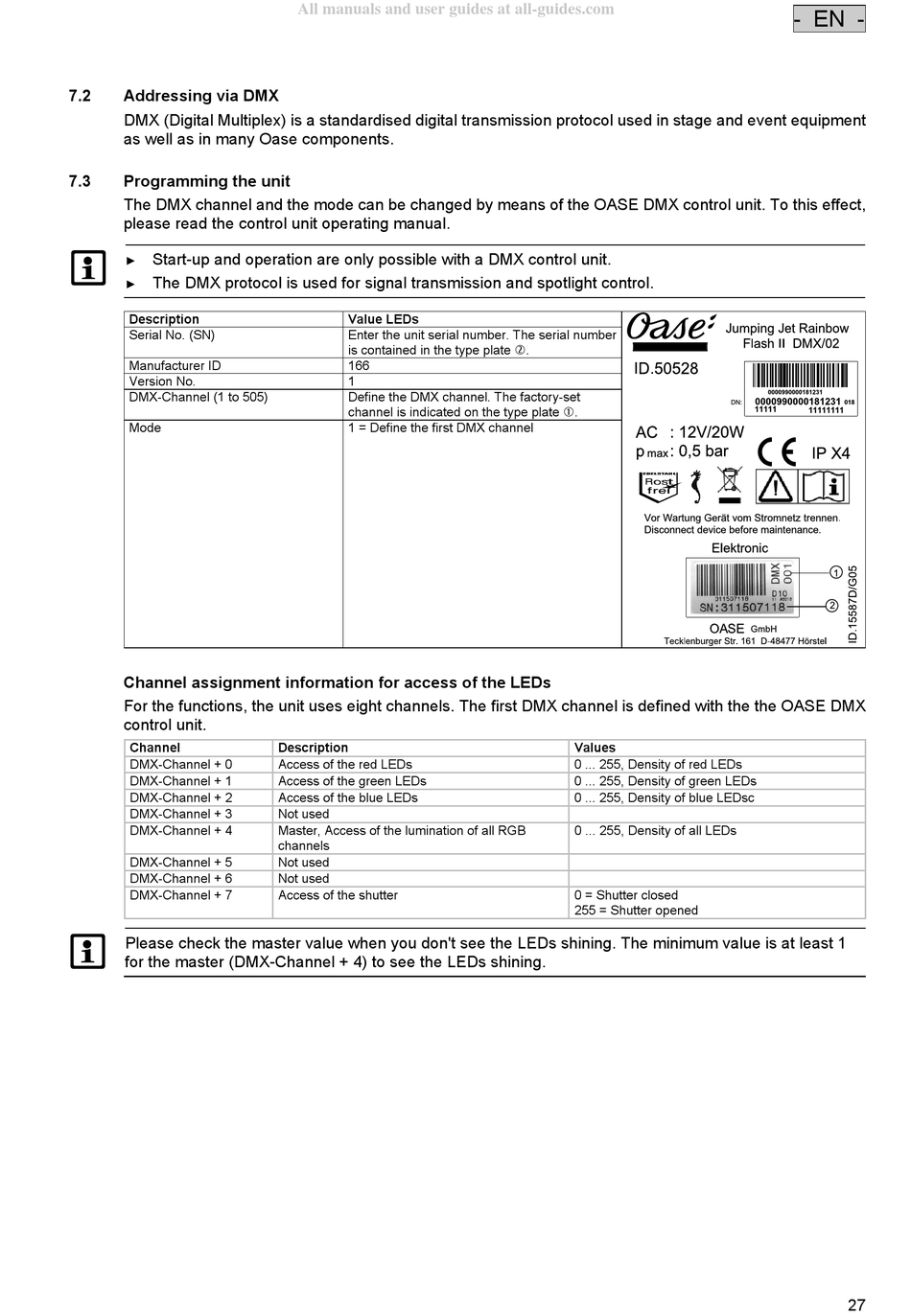

7.2

Addressing via DMX

DMX (Digital Multiplex) is a standardised digital transmission protocol used in stage and event equipment
as well as in many Oase components.
7.3

Programming the unit

The DMX channel and the mode can be changed by means of the OASE DMX control unit. To this effect,
please read the control unit operating manual.
Start-up and operation are only possible with a DMX control unit.
►
The DMX protocol is used for signal transmission and spotlight control.
►
Description
Serial No. (SN)
Manufacturer ID
Version No.
DMX-Channel (1 to 505)
Mode
Channel assignment information for access of the LEDs
For the functions, the unit uses eight channels. The first DMX channel is defined with the the OASE DMX
control unit.
Channel
DMX-Channel + 0
DMX-Channel + 1
DMX-Channel + 2
DMX-Channel + 3
DMX-Channel + 4
DMX-Channel + 5
DMX-Channel + 6
DMX-Channel + 7
Please check the master value when you don't see the LEDs shining. The minimum value is at least 1
for the master (DMX-Channel + 4) to see the LEDs shining.
All manuals and user guides at all-guides.com
Value LEDs
Enter the unit serial number. The serial number
is contained in the type plate .
166
1
Define the DMX channel. The factory-set
channel is indicated on the type plate .
1 = Define the first DMX channel
Description
Access of the red LEDs
Access of the green LEDs
Access of the blue LEDs
Not used
Master, Access of the lumination of all RGB
channels
Not used
Not used
Access of the shutter
Values
0 ... 255, Density of red LEDs
0 ... 255, Density of green LEDs
0 ... 255, Density of blue LEDsc
0 ... 255, Density of all LEDs
0 = Shutter closed
255 = Shutter opened
- EN -
