Installation – Hinge cover

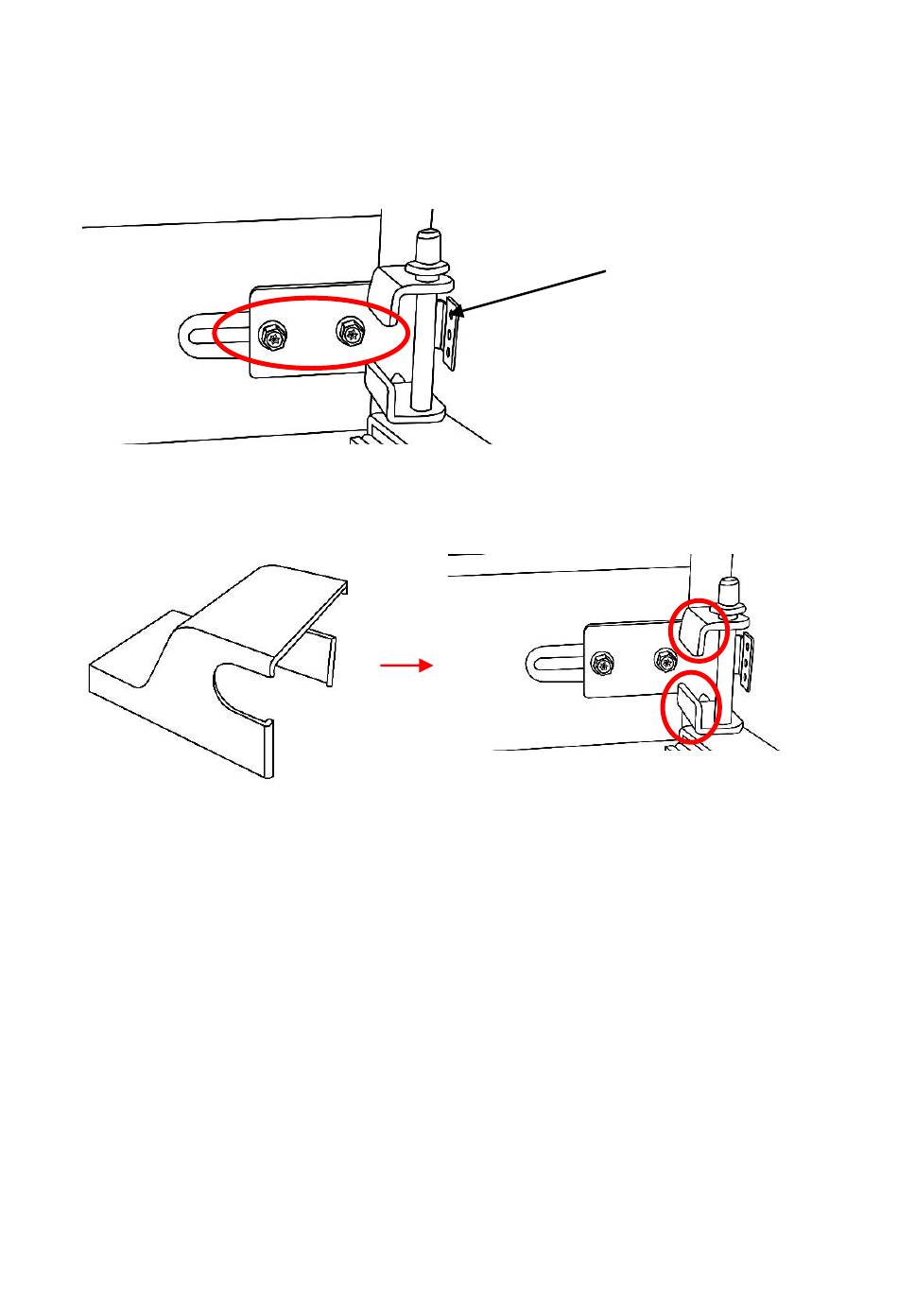

1. Loose the 2 screws from the middle hinge and adjust and fasten connecting
bracket so it flush with the kitchen cabinet. Fix it in place with 2 torx headed
screws and screw the hinge back on to the appliance.
2. Slot on the hinge cover, the 2 clips on the back of the cover should slot onto
the bracket of the middle hinge.
3. There are 2 other hinge covers supplied and these are for the lower and upper
hinges. These can be clipped on if required.
10
Fastening connector
