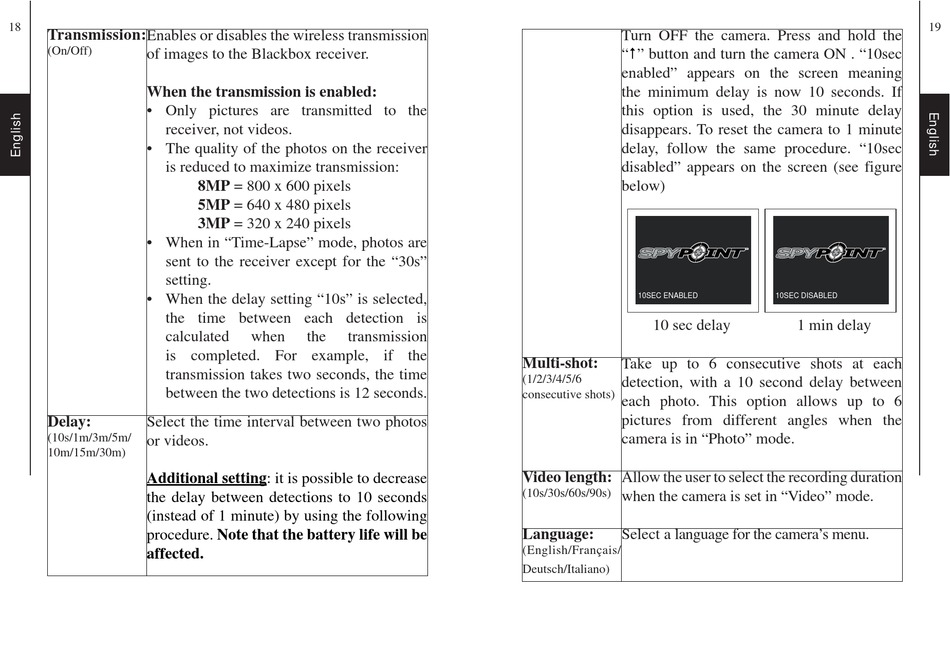

Spypoint TINY-W2 Bedienungsanleitung Seite 10

18
Transmission: Enables or disables the wireless transmission
(On/Off)
of images to the Blackbox receiver.
When the transmission is enabled:
• Only pictures are transmitted to the
receiver, not videos.
• The quality of the photos on the receiver
is reduced to maximize transmission:
• When in "Time-Lapse" mode, photos are
sent to the receiver except for the "30s"
setting.
• When the delay setting "10s" is selected,
the time between each detection is
calculated
is completed. For example, if the
transmission takes two seconds, the time
between the two detections is 12 seconds.
Delay: Select the time interval between two photos
(10s/1m/3m/5m/
or videos.
10m/15m/30m)
Additional setting: it is possible to decrease
the delay between detections to 10 seconds
(instead of 1 minute) by using the following
procedure. Note that the battery life will be
affected.
8MP = 800 x 600 pixels
5MP = 640 x 480 pixels
3MP = 320 x 240 pixels
when the transmission
Turn OFF the camera. Press and hold the
"" button and turn the camera ON . "10sec
enabled" appears on the screen meaning
the minimum delay is now 10 seconds. If
this option is used, the 30 minute delay
disappears. To reset the camera to 1 minute
delay, follow the same procedure. "10sec
disabled" appears on the screen (see figure
below)
10SEC ENABLED
10 sec delay
Multi-shot: Take up to 6 consecutive shots at each
(1/2/3/4/5/6
detection, with a 10 second delay between
consecutive shots)
each photo. This option allows up to 6
pictures from different angles when the
camera is in "Photo" mode.
Video length:
Allow the user to select the recording duration
(10s/30s/60s/90s)
when the camera is set in "Video" mode.
Language: Select a language for the camera's menu.
(English/Français/
Deutsch/Italiano)
19
10SEC DISABLED
1 min delay
