Operating Instuctions
d) Mounting in the pac-Carrier
Remove the black and green terminals.
Set the IS pac modules in place as described in a) and b) and
completely tilt/snap into the pac-Carrier.
Close the red latching lever using gentle pressure. The latching
lever must engage completely.
To dismount, use a screwdriver to open the latching mechanism as
shown in the picture. The module is nudged out of the slot and can
be removed.
7

Commissioning

7.1

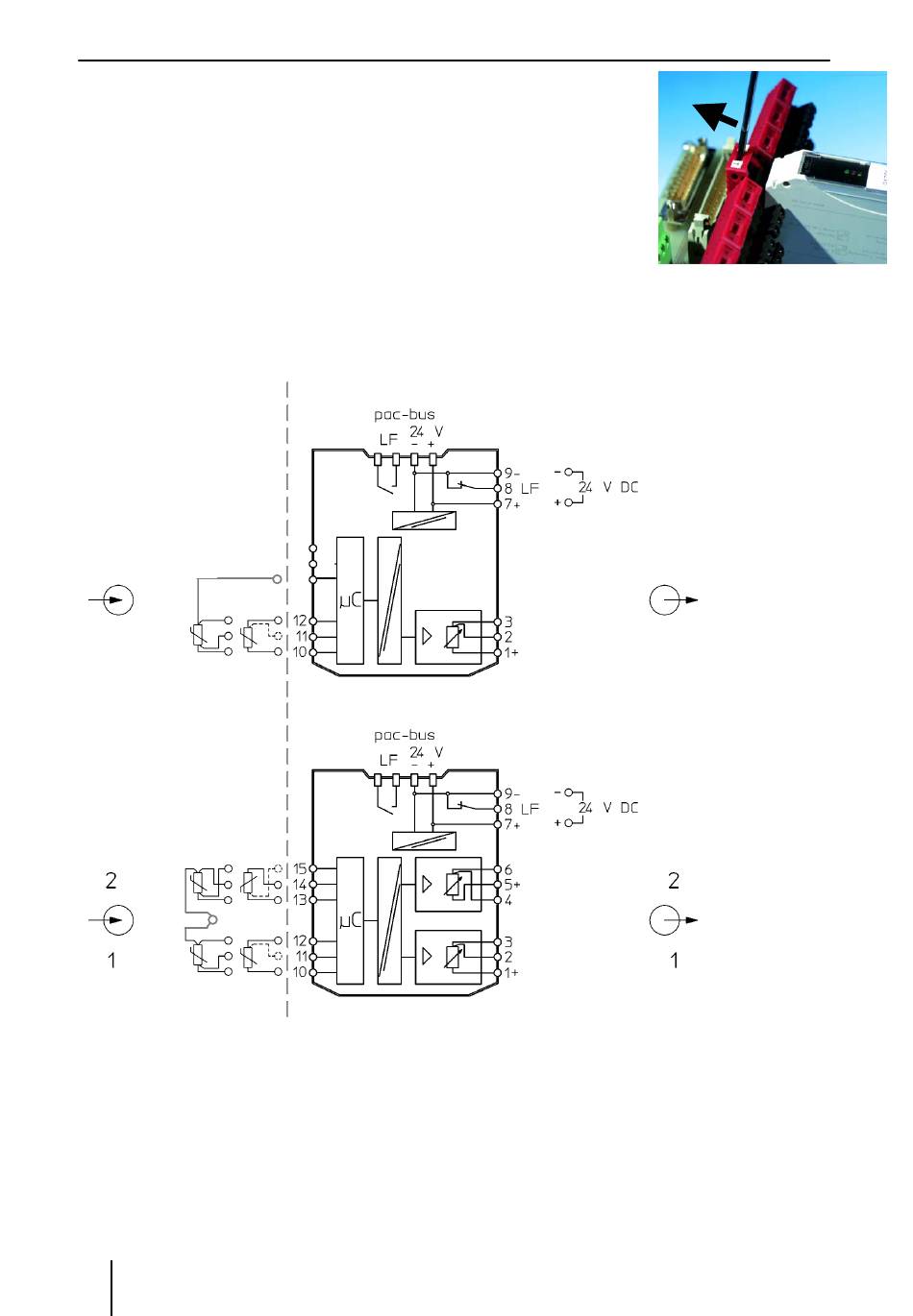

Connections

Hazardous
area
Hazardous
area
X1 *)
*) the connection of two sensors in 4-wire scheme requires an additional external clamp.
18 Resistance Isolator Type 9180
13
Safe area
Safe area
