General System Information On Homematic - eQ-3 Homematic HMW-IO-12-Sw7-DR Installations- Und Bedienungsanleitung

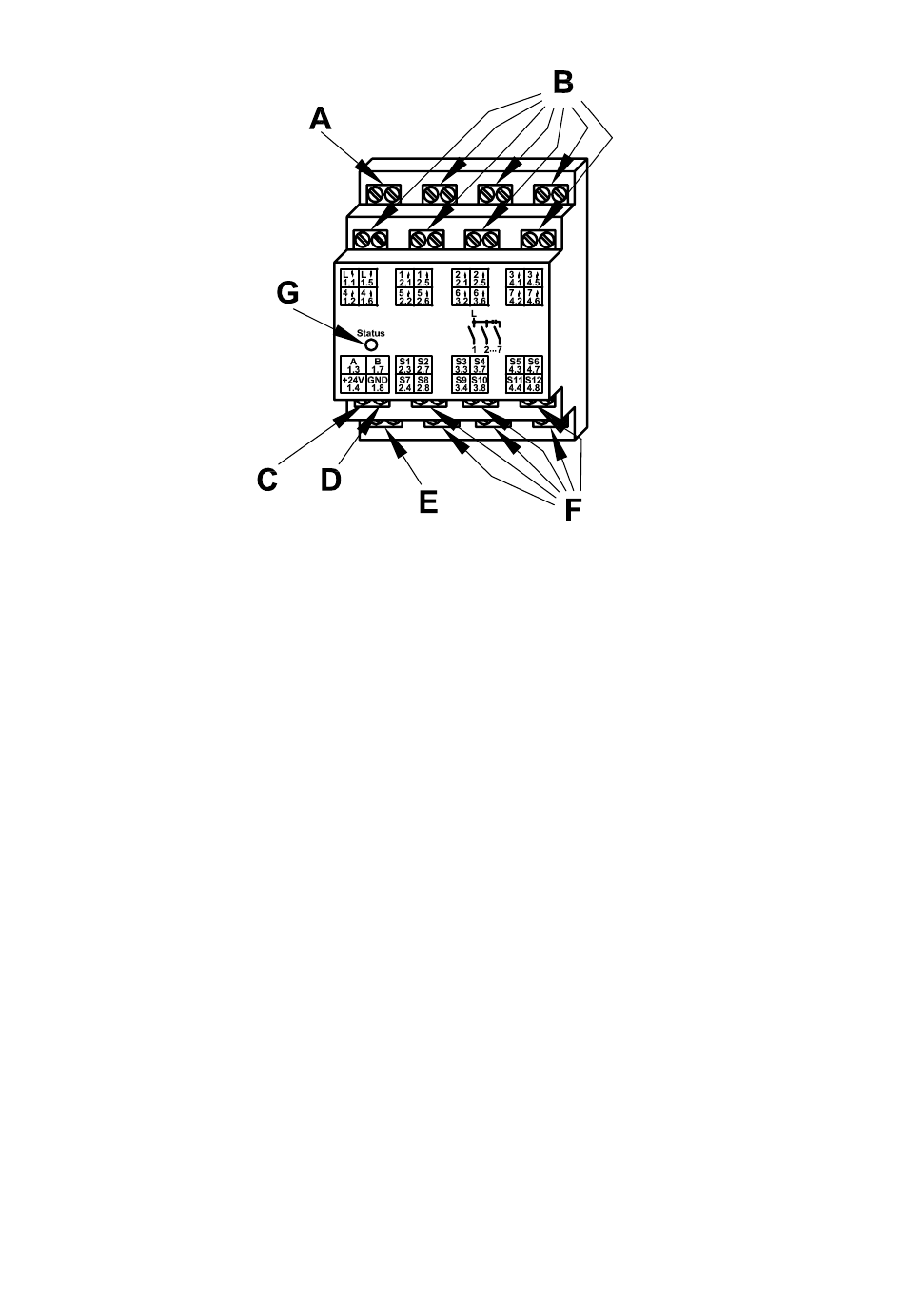

(A) - External conductor connection Load side
(B) - Output terminal Channels 1 – 7
(C) - Bus A
(D) - Bus B
(E) – Bus power supply
(F) – Button input terminals
4 General system information
on Homematic
This device is a component of the Homematic Home
Control System.
All devices are delivered in a standard configuration.
The functionality of the device can also be configured
