2.5 Identification

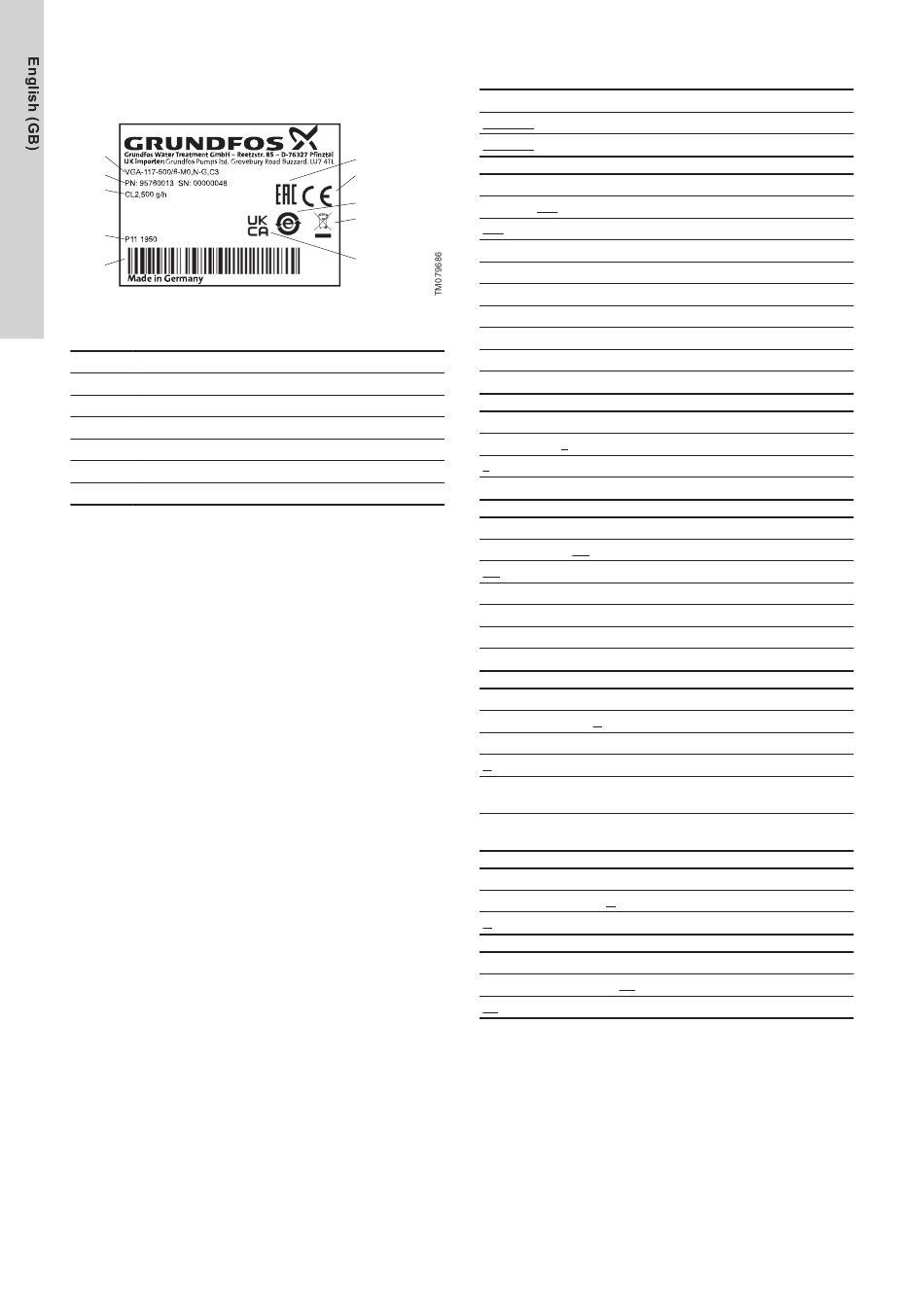

2.5.1 Nameplate VGA-117 dosing regulator
1
2a/b
3a/b
7a/b
8
Nameplate of a VGA-117 dosing regulator
Pos. Description
1a Type designation
2a/b Product number, serial number
3a/b Allowed medium, capacity
7a/b Production code, year and week
8 Barcode for product number and serial number
9a/b/c/d/e Marks of approval
8
2.5.2 Type key VGA-117 dosing regulator
Type
VGA-117-500/6-M0,N-G,C3
VGA-117
9b
9a
Dosing capacity
9d
VGA-117-500/6-M0,N-G,C3
9c
500
1000
9e
2000
4000
6000
8000
10000
20000
Connection, input and output
VGA-117-500/6-M0,N-G,C3
6
14
Dosing flow adjustment
VGA-117-500/6-M0,N-G,C3
M0
D3
D4
D8
D9
Differential-pressure regulator
VGA-117-500/6-M0,N-G,C3
Y
N
V
W
Logo
VGA-117-500/6-M0,N-G,C3
G
Product certificate
VGA-117-500/6-M0,N-G,C3
C3
Dosing regulator
25-500 [g/h]
50-1000 [g/h]
100-2000 [g/h]
200-4000 [g/h]
300-6000 [g/h]
400-8000 [g/h]
500-10000 [g/h]
1000-20000 [g/h]
PE hose, 10/14
PVC pipe, DN 20 (20/25)
Manual
Automatic, 110-240 V, 50/60 Hz, 4-20 mA
Automatic, 24 VDC, 4-20 mA
Automatic, 230 V, 50/60 Hz, potentiometer 1 k Ohm
Automatic, 115 V, 50/60 Hz, potentiometer 1 k Ohm
With differential-pressure regulator
Without differential-pressure regulator
With differential-pressure regulator and vacuumme-
ter
With differential-pressure regulator and contact vac-
uummeter
Grundfos
Certificate 3.1 to EN 10204
