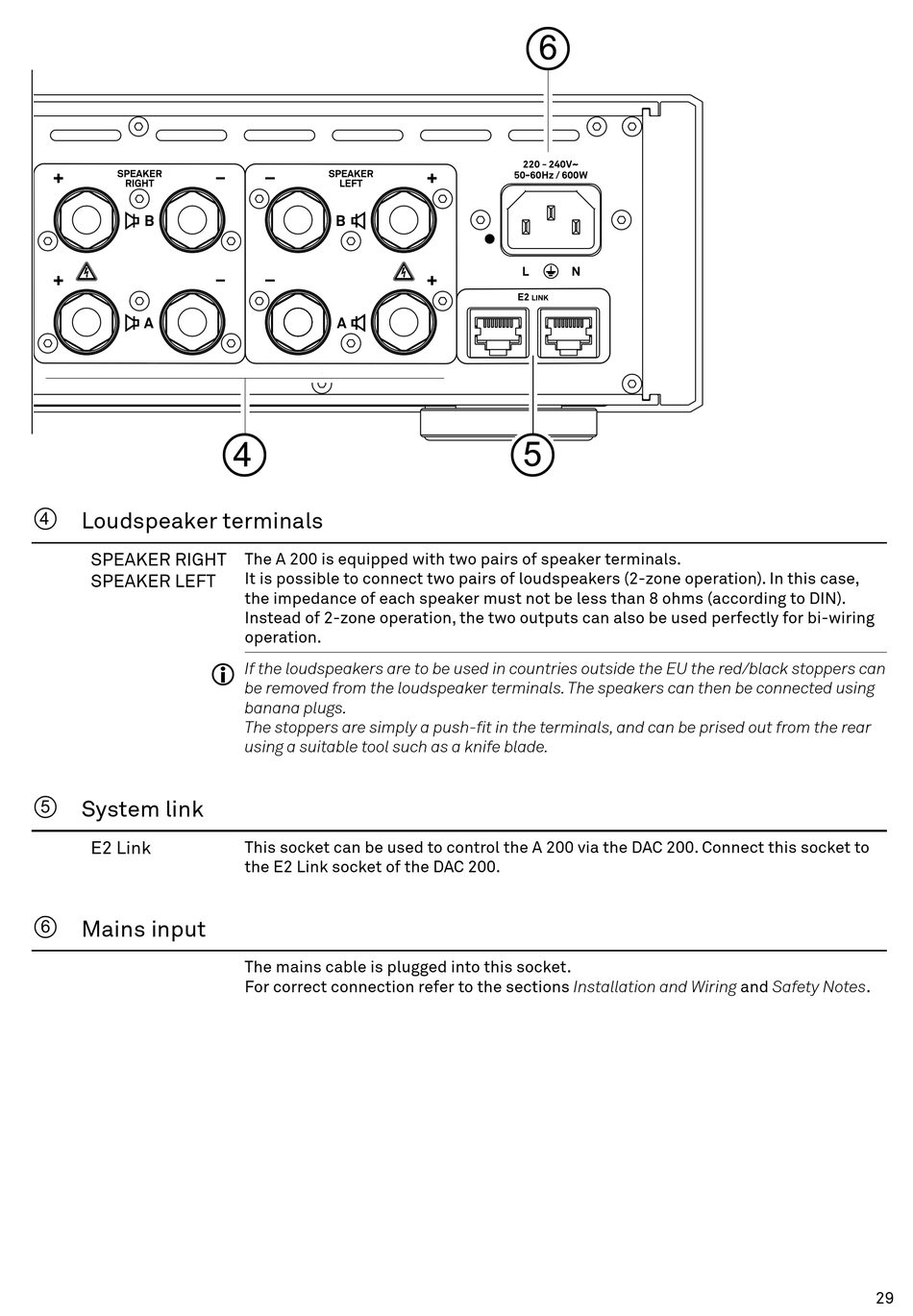

Loudspeaker Terminals; System Link; Mains Input - T+A A 200 Bedienungsanleitung

4 Loudspeaker terminals

SPEAKER RIGHT
SPEAKER LEFT

5 System link

E2 Link

6 Mains input

The A 200 is equipped with two pairs of speaker terminals.
It is possible to connect two pairs of loudspeakers (2-zone operation). In this case,
the impedance of each speaker must not be less than 8 ohms (according to DIN).
Instead of 2-zone operation, the two outputs can also be used perfectly for bi-wiring
operation.
If the loudspeakers are to be used in countries outside the EU the red/black stoppers can
j
be removed from the loudspeaker terminals. The speakers can then be connected using
banana plugs.
The stoppers are simply a push-fit in the terminals, and can be prised out from the rear
using a suitable tool such as a knife blade.
This socket can be used to control the A 200 via the DAC 200. Connect this socket to
the E2 Link socket of the DAC 200.
The mains cable is plugged into this socket.
For correct connection refer to the sections Installation and Wiring and Safety Notes.
