Installation

Note
• Check all connections and systems before final
installation.
• Do not use unauthorized parts. The use of
unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires
drilling of holes or other modifications of the
vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result
of a sudden stop.
• Do not install the display where it may (i) obstruct
the driver's vision, (ii) impair the performance of
any of the vehicle's operating systems or safety
features, including air bags, hazard lamp buttons
or (iii) impair the driver's ability to safely operate
the vehicle.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit
is installed at an angle of less than 30°.

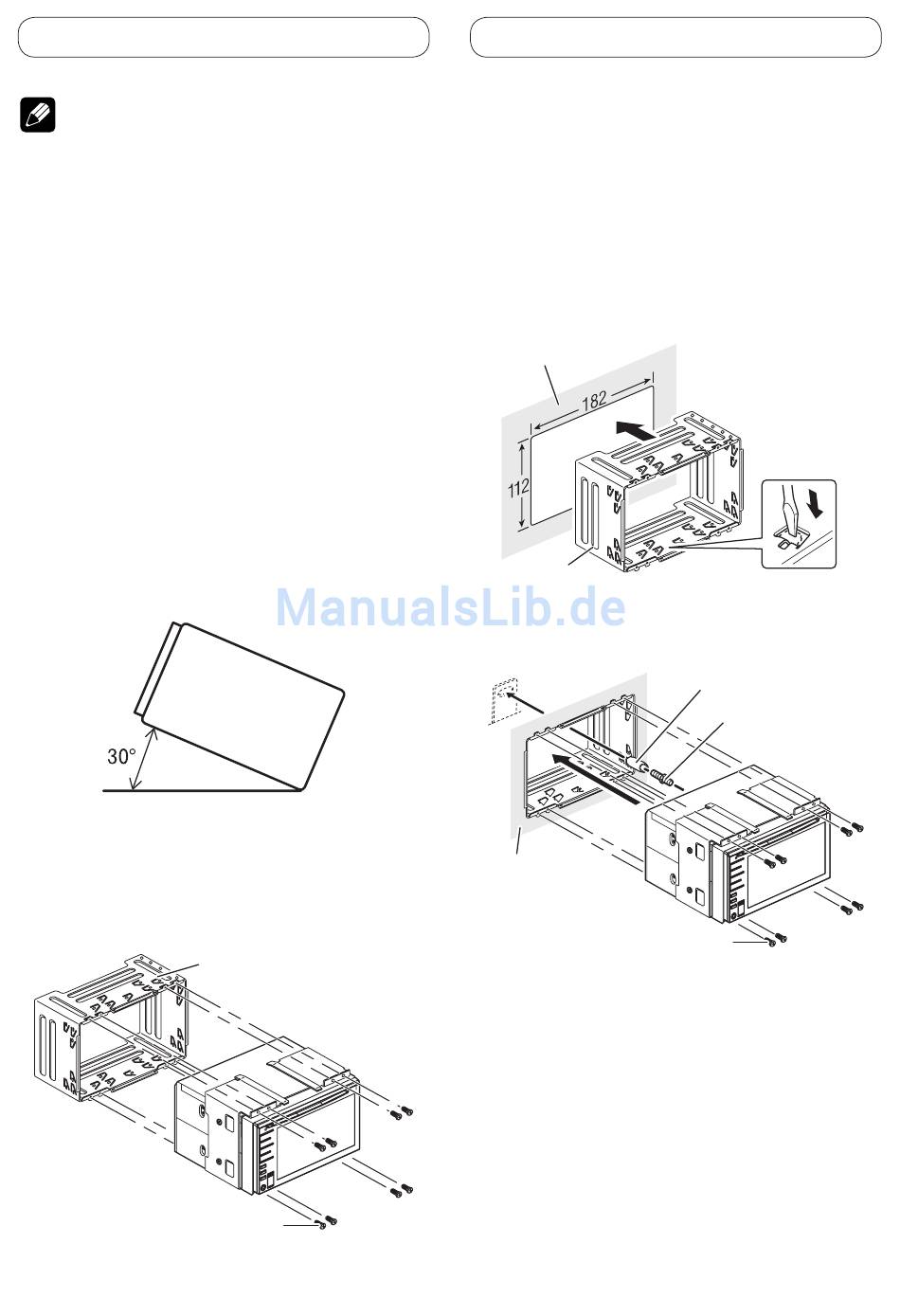

Before installing this unit

Remove the holder.
•
Loosen the screws (3 × 6 mm) to remove the
holder.
Screw (3 × 6 mm)
14
Holder
Installation with the holder
and side bracket
1. Install the holder into the dashboard.
After inserting the holder into the dashboard,
select and bend the tabs appropriate to the
thickness of the dashboard material. (Install
this unit as firmly as possible using the top
and bottom tabs. To secure this unit, bend the
tabs 90 degrees.)
Dashboard
Holder
2. Install this unit and fasten the screws.
Dashboard
Screw (3 × 6 mm)
Rubber bush
Double-ended screw
