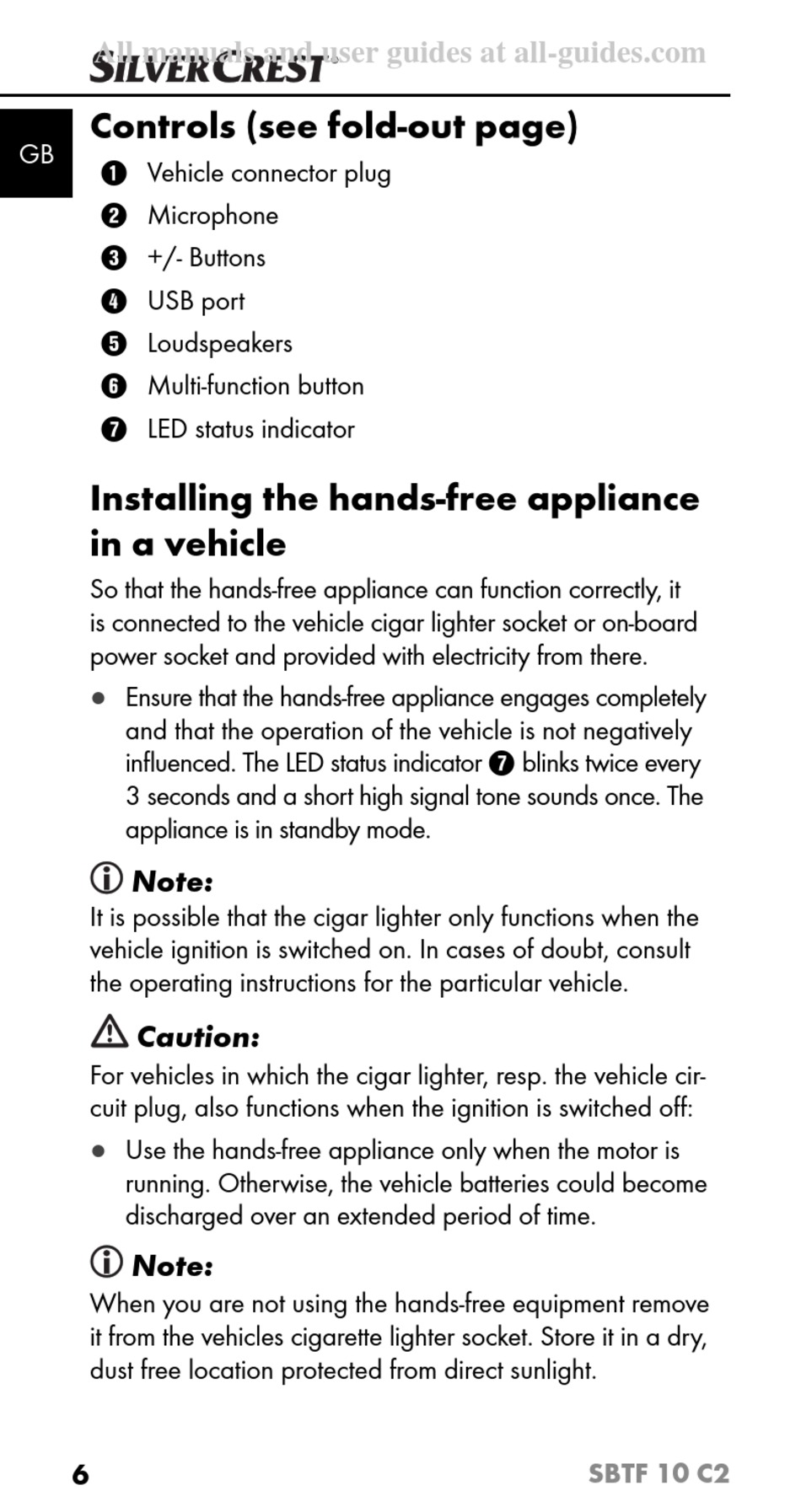

Controls (see fold-out page)

GB
1 Vehicle connector plug
2 Microphone
3 +/- Buttons
4 USB port
5 Loudspeakers
6 Multi-function button
7 LED status indicator
Installing the hands-free appliance
in a vehicle
So that the hands-free appliance can function correctly, it
is connected to the vehicle cigar lighter socket or on-board
power socket and provided with electricity from there.
●
Ensure that the hands-free appliance engages completely
and that the operation of the vehicle is not negatively
infl uenced. The LED status indicator 7 blinks twice every
3 seconds and a short high signal tone sounds once. The
appliance is in standby mode.
Note:
It is possible that the cigar lighter only functions when the
vehicle ignition is switched on. In cases of doubt, consult
the operating instructions for the particular vehicle.
Caution:
For vehicles in which the cigar lighter, resp. the vehicle cir-
cuit plug, also functions when the ignition is switched off :
●
Use the hands-free appliance only when the motor is
running. Otherwise, the vehicle batteries could become
discharged over an extended period of time.
Note:
When you are not using the hands-free equipment remove
it from the vehicles cigarette lighter socket. Store it in a dry,
dust free location protected from direct sunlight.
6
SBTF 10 C2
