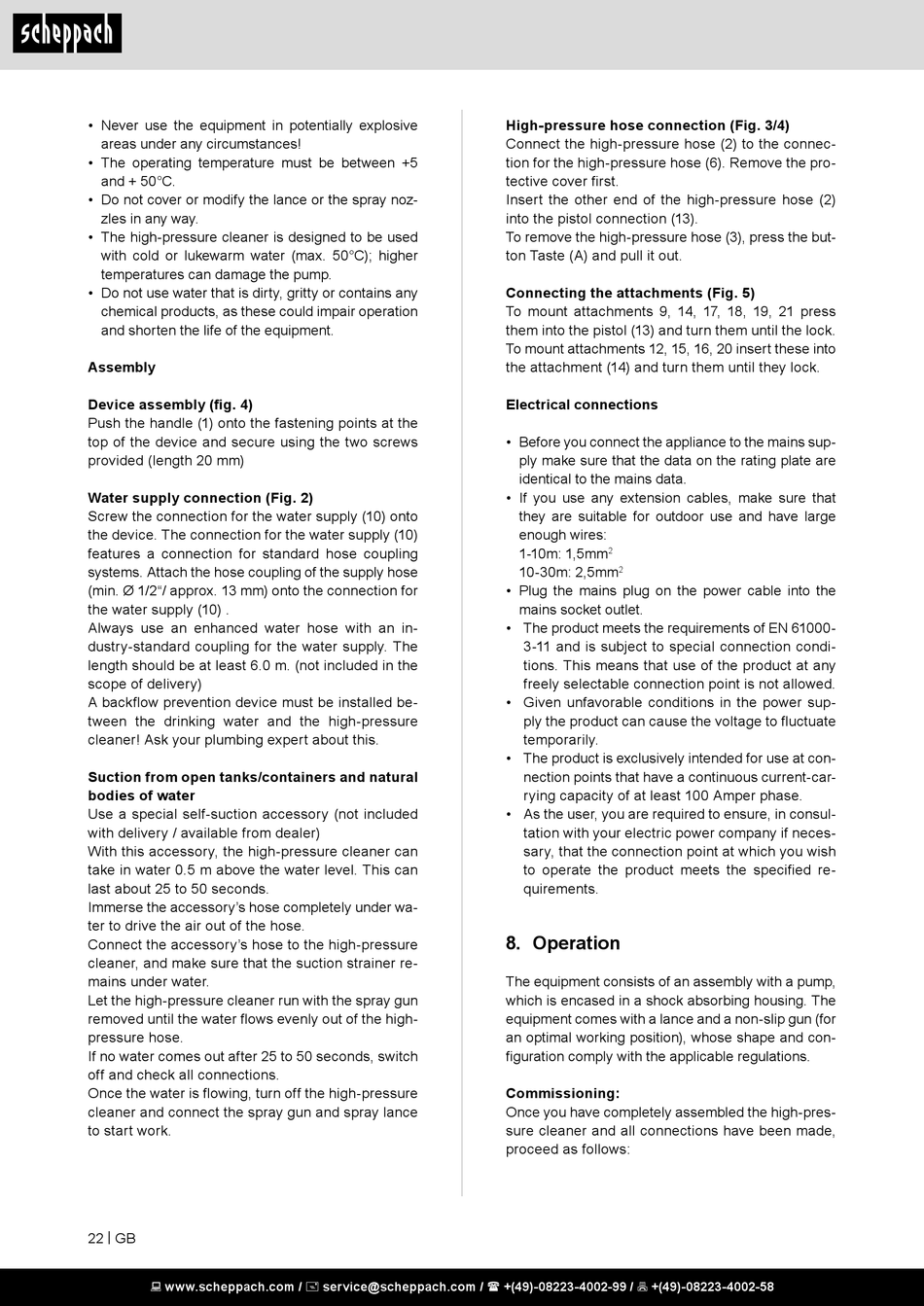

• Never use the equipment in potentially explosive
areas under any circumstances!
• The operating temperature must be between +5
and + 50°C.
• Do not cover or modify the lance or the spray noz-
zles in any way.
• The high-pressure cleaner is designed to be used
with cold or lukewarm water (max. 50°C); higher
temperatures can damage the pump.
• Do not use water that is dirty, gritty or contains any
chemical products, as these could impair operation
and shorten the life of the equipment.
Assembly
Device assembly (fig. 4)
Push the handle (1) onto the fastening points at the
top of the device and secure using the two screws
provided (length 20 mm)
Water supply connection (Fig. 2)
Screw the connection for the water supply (10) onto
the device. The connection for the water supply (10)
features a connection for standard hose coupling
systems. Attach the hose coupling of the supply hose
(min. Ø 1/2"/ approx. 13 mm) onto the connection for
the water supply (10) .
Always use an enhanced water hose with an in-
dustry-standard coupling for the water supply. The
length should be at least 6.0 m. (not included in the
scope of delivery)
A backflow prevention device must be installed be-
tween the drinking water and the high-pressure
cleaner! Ask your plumbing expert about this.
Suction from open tanks/containers and natural
bodies of water
Use a special self-suction accessory (not included
with delivery / available from dealer)
With this accessory, the high-pressure cleaner can
take in water 0.5 m above the water level. This can
last about 25 to 50 seconds.
Immerse the accessory's hose completely under wa-
ter to drive the air out of the hose.
Connect the accessory's hose to the high-pressure
cleaner, and make sure that the suction strainer re-
mains under water.
Let the high-pressure cleaner run with the spray gun
removed until the water flows evenly out of the high-
pressure hose.
If no water comes out after 25 to 50 seconds, switch
off and check all connections.
Once the water is flowing, turn off the high-pressure
cleaner and connect the spray gun and spray lance
to start work.
22 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
High-pressure hose connection (Fig. 3/4)
Connect the high-pressure hose (2) to the connec-
tion for the high-pressure hose (6). Remove the pro-
tective cover first.
Insert the other end of the high-pressure hose (2)
into the pistol connection (13).
To remove the high-pressure hose (3), press the but-
ton Taste (A) and pull it out.
Connecting the attachments (Fig. 5)
To mount attachments 9, 14, 17, 18, 19, 21 press
them into the pistol (13) and turn them until the lock.
To mount attachments 12, 15, 16, 20 insert these into
the attachment (14) and turn them until they lock.
Electrical connections
• Before you connect the appliance to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
• If you use any extension cables, make sure that
they are suitable for outdoor use and have large
enough wires:
1-10m: 1,5mm
2
10-30m: 2,5mm
2
• Plug the mains plug on the power cable into the
mains socket outlet.
• The product meets the requirements of EN 61000-
3-11 and is subject to special connection condi-
tions. This means that use of the product at any
freely selectable connection point is not allowed.
• Given unfavorable conditions in the power sup-
ply the product can cause the voltage to fluctuate
temporarily.
• The product is exclusively intended for use at con-
nection points that have a continuous current-car-
rying capacity of at least 100 Amper phase.
• As the user, you are required to ensure, in consul-
tation with your electric power company if neces-
sary, that the connection point at which you wish
to operate the product meets the specified re-
quirements.

8. Operation

The equipment consists of an assembly with a pump,
which is encased in a shock absorbing housing. The
equipment comes with a lance and a non-slip gun (for
an optimal working position), whose shape and con-
figuration comply with the applicable regulations.
Commissioning:
Once you have completely assembled the high-pres-
sure cleaner and all connections have been made,
proceed as follows:
