Operation
The wall-mount fireplace can be operated with the multi–function IR remote control or
from the touchscreen controls on the front glass of the fireplace.
Once the fireplace has been properly connected to an earthed electrical socket-outlet
ensure the manual On/Off switch, located on the right hand side of the fireplace, is in
the 'ON' position.
Once the fireplace is turned on the digital display and the control icons on the front
glass will illuminate. If no button or icon is pressed within 10 seconds, the fireplace
controls will deactivate by turning off the digital display first and then the icons. To
reactivate the controls touch any icon on the front glass.

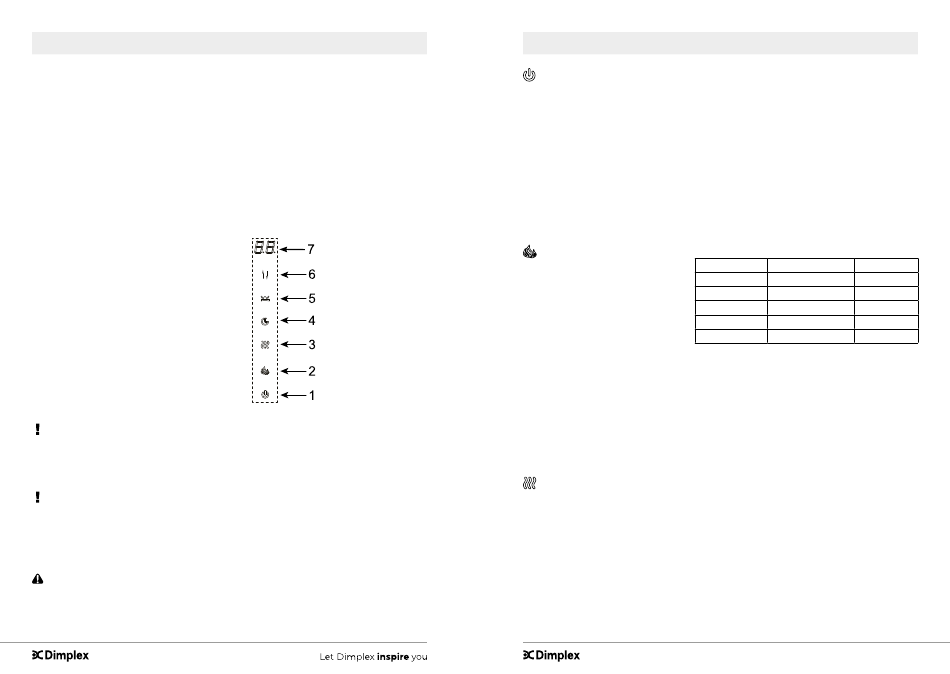

1. Power ON/OFF
2. Flame Control
3. Heat ON/OFF
4. Timer Control
5. Ember Bed
6. Level Selection
7. Digital Display
NOTE: The heater on your fireplace may emit a slight, harmless odor when first
used. This odor is a normal condition caused by initial heating of internal heater
parts and will not occur again.
CUTOFF SWITCH
NOTE: There is a safety temperature cutoff switch (cutout) inside the heater. If the
heater overheats, the cutout will shut off the supply power.
It can be reset by unplugging the unit and waiting 5 minutes before plugging the
unit back on.
CAUTION: If you need to continuously reset the heater, unplug the unit and call
technical service at +31(0)513 656500
- 18 -
Operation
POWER ON/OFF
The Power ON/OFF button turns the fireplace ON and OFF. When the fireplace is
OFF, pressing the Power ON/OFF button on the remote control or touching the icon
on the front glass will turn ON the fireplace. If the Power ON/OFF button is pressed
again within 10 seconds it will turn OFF the fireplace. With inactive controls, press
twice to turn OFF the fireplace. The first press on the Power ON/OFF button lights
up the touchscreen icons and activates the controls.
The fireplace has a built-in memory function. When the fireplace is turned back
on, the display will show the last selected function and it will start at the last used
settings (except timer). If the fireplace is disconnected from the main power source,
it will restart at the default settings.
FLAME CONTROL
Button Press
This button is used to turn
flames ON, alter flame color and 1st Press
to turn flames OFF. Press the 2nd Press
Flame Control button multiple 3rd Press
times to cycle through the
4th Press
following options: While L4, L3
5th Press
or L2 is displayed, press the Level
Selection button to change the brightness of the flames from the available options: 3-
High, 2- Medium and 1- Low.
When the dynamic color rotation is selected and L1 is displayed, press the Level
Selection button to change the color transition speed. Three speed options are
available: 1- Slow, 2- Medium, 3- Fast.
Hold the flame icon for 5 seconds to turn the sound of flame burning ON or OFF.
HEAT ON/OFF
Press the Heat Control button once to turns the heater ON and OFF.
With the Heat ON and set temperature displayed, press the Level Selection multiple
times to cycle through the 11 temperature settings: 27�C, ON, 18�C, 19�C, 20�C, 21�C, 22�C,
23�C, 24�C, 25�C, 26�C (82�F, ON, 64�F, 66�F, 68�F, 70�F, 72�F, 74�F, 76�F, 78�F, 80�F).
'ON' means the heater operates continuously.
Flame Color Display Value
Red & Yellow L4
Blue L3
Red, Yellow & Blue L2
Color Rotation L1
OFF NONE
