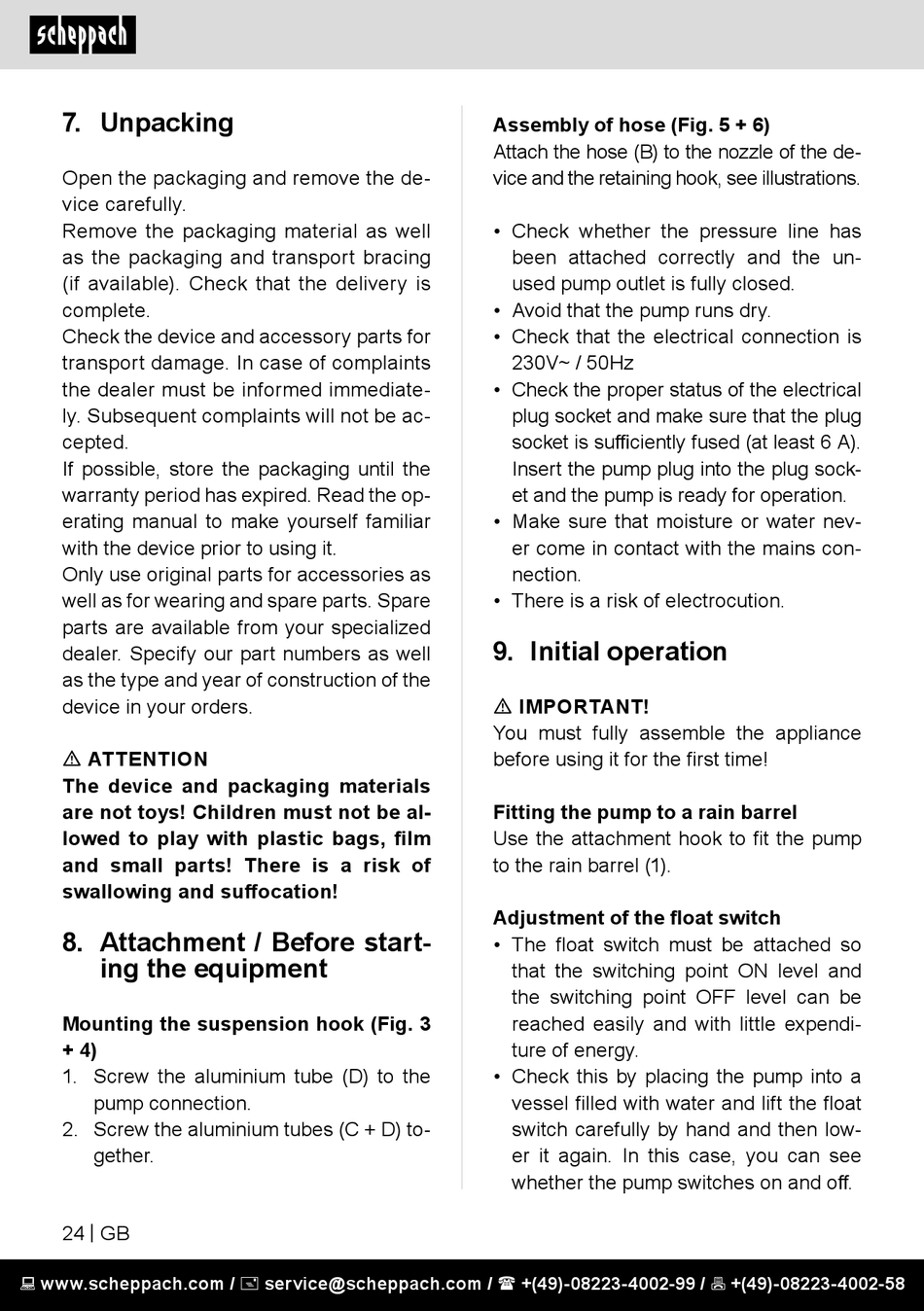

7. Unpacking

Open the packaging and remove the de-
vice carefully.
Remove the packaging material as well
as the packaging and transport bracing
(if available). Check that the delivery is
complete.
Check the device and accessory parts for
transport damage. In case of complaints
the dealer must be informed immediate-
ly. Subsequent complaints will not be ac-
cepted.
If possible, store the packaging until the
warranty period has expired. Read the op-
erating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as
well as for wearing and spare parts. Spare
parts are available from your specialized
dealer. Specify our part numbers as well
as the type and year of construction of the
device in your orders.
m ATTENTION
The device and packaging materials
are not toys! Children must not be al-
lowed to play with plastic bags, film
and small parts! There is a risk of
swallowing and suffocation!
8. Attachment / Before start-
ing the equipment
Mounting the suspension hook (Fig. 3
+ 4)
1. Screw the aluminium tube (D) to the
pump connection.
2. Screw the aluminium tubes (C + D) to-
gether.
24 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Assembly of hose (Fig. 5 + 6)
Attach the hose (B) to the nozzle of the de-
vice and the retaining hook, see illustrations.
• Check whether the pressure line has
been attached correctly and the un-
used pump outlet is fully closed.
• Avoid that the pump runs dry.
• Check that the electrical connection is
230V~ / 50Hz
• Check the proper status of the electrical
plug socket and make sure that the plug
socket is sufficiently fused (at least 6 A).
Insert the pump plug into the plug sock-
et and the pump is ready for operation.
• Make sure that moisture or water nev-
er come in contact with the mains con-
nection.
• There is a risk of electrocution.

9. Initial operation

m IMPORTANT!
You must fully assemble the appliance
before using it for the first time!
Fitting the pump to a rain barrel
Use the attachment hook to fit the pump
to the rain barrel (1).
Adjustment of the float switch
• The float switch must be attached so
that the switching point ON level and
the switching point OFF level can be
reached easily and with little expendi-
ture of energy.
• Check this by placing the pump into a
vessel filled with water and lift the float
switch carefully by hand and then low-
er it again. In this case, you can see
whether the pump switches on and off.
