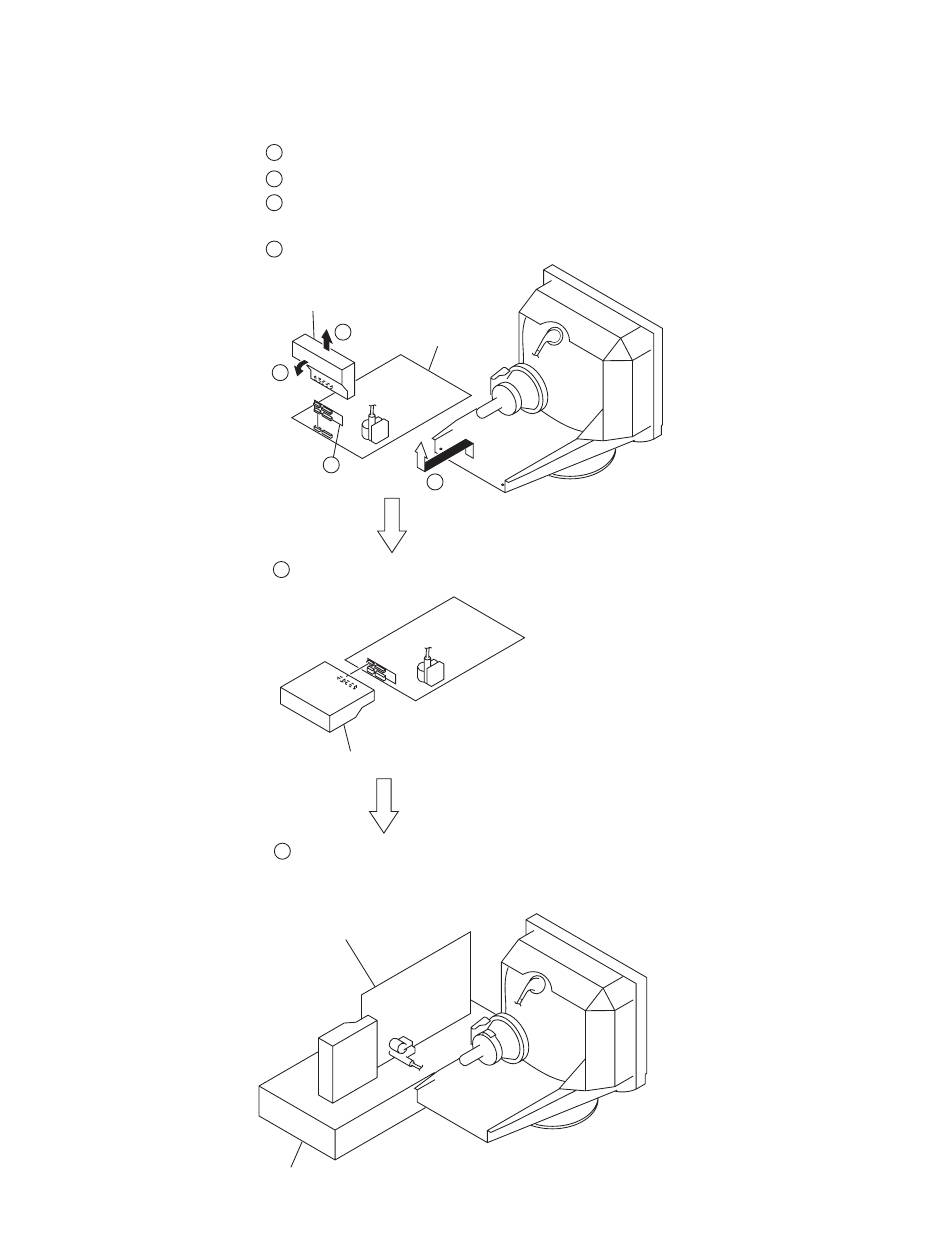

1-2. SERVICE POSITION

All manuals and user guides at all-guides.com
Remove the D board.
1
Remove the Video block assembly.
2
Install the Adaptor board
3
(XT MOUNT) (A-1391-123-A).
Lay the Video block assembly.
4
Video block assembly
2
D board
4
3
1
Install the video block assembly.
5
Video block assembly
Put a box which is about 15cm in height
6
under the D board to fix it.
(Please disconnect the CN 701 first.)
D board
Box
— 9 —
CPD-E530
