Section 5: Exploded View; Chassis - Sony Trinitron CPD-E530 Serviceanleitung

Components not identified by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identified by shading and
Replace only with part number specified.

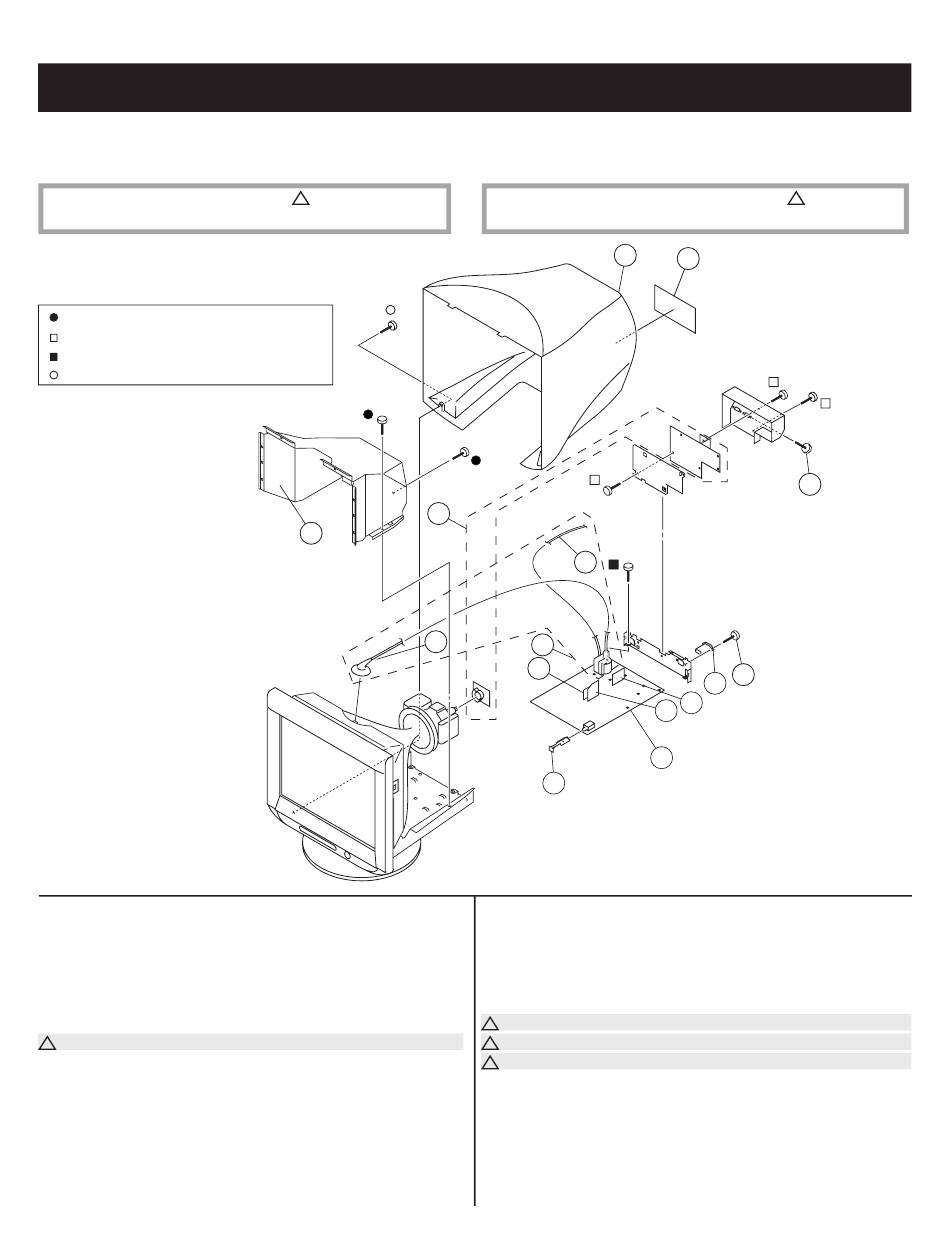

5-1. CHASSIS

7-685-881-09 SCREW +BVTT 4X8 (S)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
REF. NO. PART NO. DESCRIPTION
* 1 A-1299-419-A A1 BOARD, COMPLETE
2 X-4038-603-3 SHIELD ASSY, EMI
3 4-080-941-91 CABINET
* 4 4-093-862-01 LABEL, INFORMATION
5 4-635-966-01 SCREW (HEX)
6 4-052-345-01 SCREW, (3X8) (+K), TAPPING
7 1-251-382-31 INLET, AC 3P(WITH NOISE FILTER)
!
* 8 A-1391-095-A N BOARD, MOUNTED
* 9 A-1391-119-A L2 BOARD, MOUNTED
All manuals and user guides at all-guides.com

SECTION 5: EXPLODED VIEW

The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
mark are critical for safety.
!
1
2
15
— 33 —
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: Les composants identifies per un trame et une marque
la securite. Ne les remplacer que par une piece portant le numero specifie.
3
14
13
12
9
10
11
REF. NO. PART NO. DESCRIPTION
* 10 A-1348-031-E D BOARD, COMPLETE
The high-voltage leads associated with the FBT on the D Board are not
included and must be ordered separately. (See 14-15)
11 4-079-799-01 BAR, EXTENSION
* 12 A-1333-007-A DA BOARD, MOUNTED
13 1-453-382-11 FBT ASSY/NX-4702//KQE4
!
14 1-900-805-55 WIRE ASSY, FOCUS LEAD
!
15 1-251-715-63 CAP ASSY, HIGH-VOLTAGE
!
sont critiques pour
!
4
5
6
7
8
[ASSEMBLY INCLUDES]
(14-15)
CPD-E530
