5

Operating the product

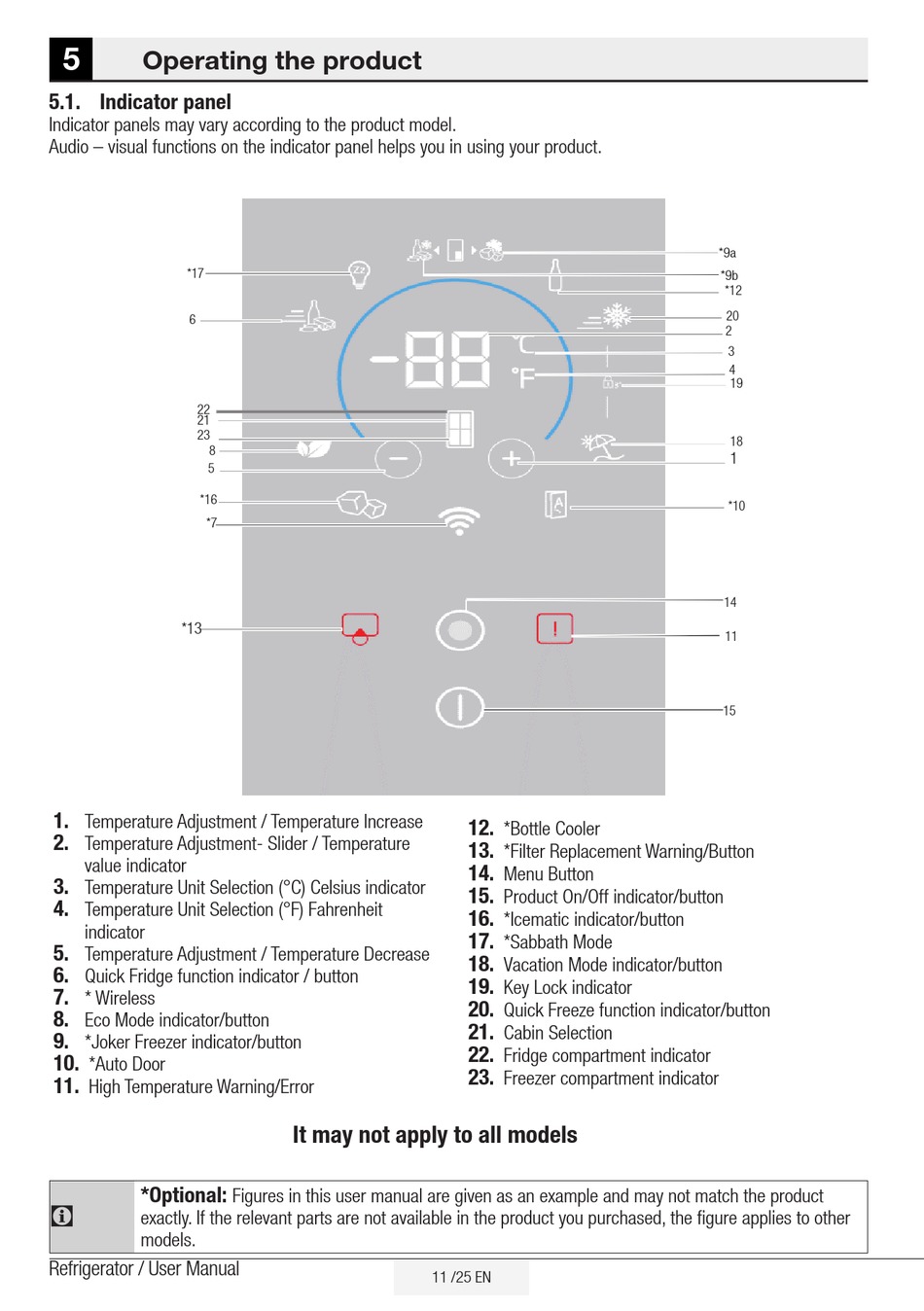

5.1. Indicator panel

Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
*17
6
22
21
23
8
5
*16
*7
*13
1.
Temperature Adjustment / Temperature Increase
2.
Temperature Adjustment- Slider / Temperature
value indicator
3.
Temperature Unit Selection (°C) Celsius indicator
4.
Temperature Unit Selection (°F) Fahrenheit
indicator
5.
Temperature Adjustment / Temperature Decrease
6.
Quick Fridge function indicator / button
7.
* Wireless
8.
Eco Mode indicator/button
9.
*Joker Freezer indicator/button
10.
*Auto Door
11.
High Temperature Warning/Error
*Optional:
C
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
Refrigerator / User Manual
It may not apply to all models
Figures in this user manual are given as an example and may not match the product
12.
*Bottle Cooler
13.
*Filter Replacement Warning/Button
14.
Menu Button
15.
Product On/Off indicator/button
16.
*Icematic indicator/button
17.
*Sabbath Mode
18.
Vacation Mode indicator/button
19.
Key Lock indicator
20.
Quick Freeze function indicator/button
21.
Cabin Selection
22.
Fridge compartment indicator
23.
Freezer compartment indicator
11 /25 EN
*9a
*9b
*12
20
2
3
4
19
18
1
*10
14
11
15
