E-ISM Boxer
X
Move electrical hold-open device until catch contacts sliding block (4.).
X
Screw down electrical hold-open device securely (5.).
X
To prevent loops from forming, tighten cable and fasten cable protection at hold open device end (6.).
X
Stow away (7.) loose cable in the cable protection and free area.
X
Secure exposed cable with the cable protection film (8.).
CAUTION!
X
Check free upward movement of the rocker!
If necessary, the holding force can be adjusted (9.). According to EN 1155, the release torque should
amount to 40 Nm - 120 Nm for a door with 90° hold-open angle.

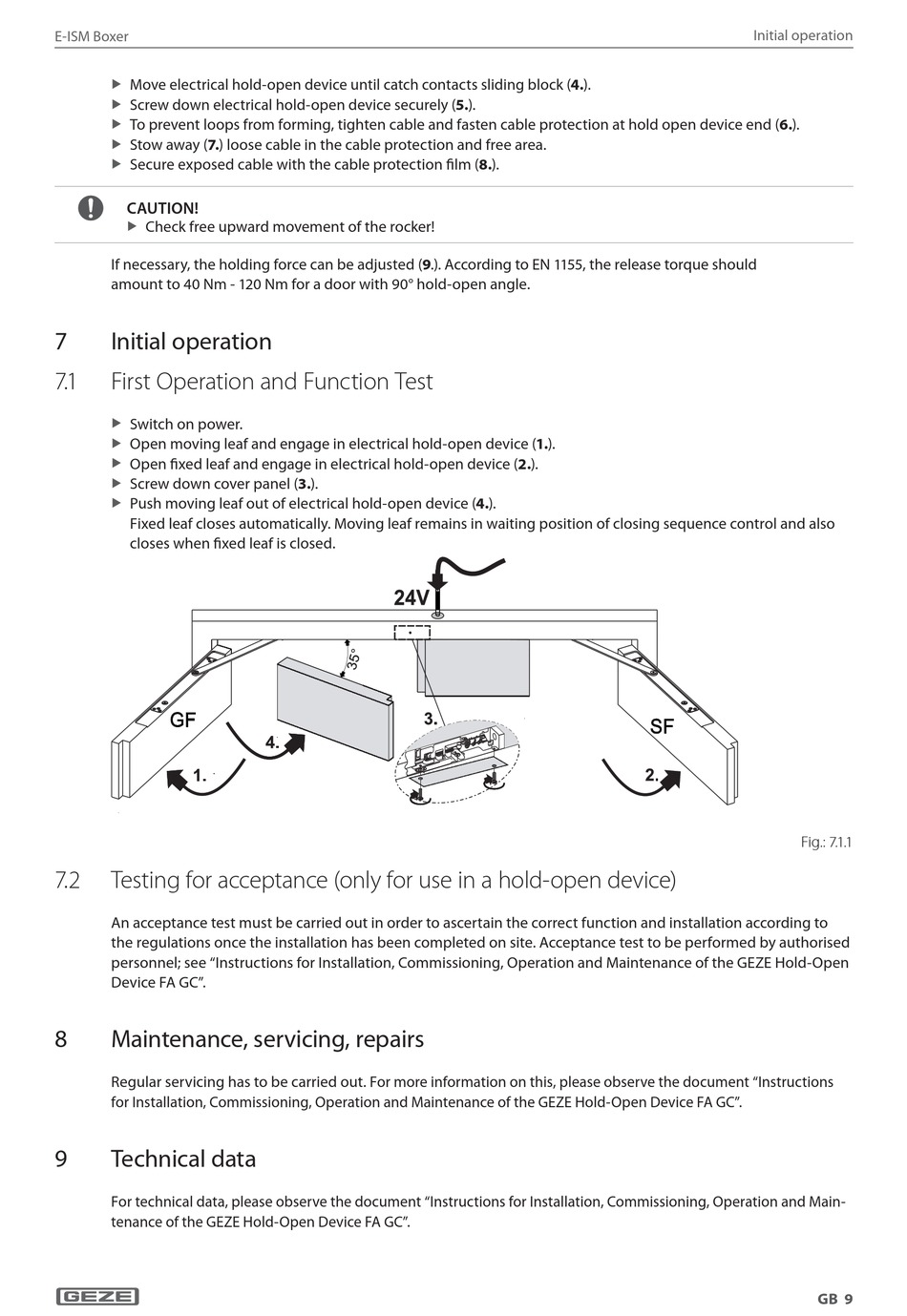

7 Initial operation
7. 1 First Operation and Function Test
X
Switch on power.
X
Open moving leaf and engage in electrical hold-open device (1.).
X
Open fixed leaf and engage in electrical hold-open device (2.).
X
Screw down cover panel (3.).
X
Push moving leaf out of electrical hold-open device (4.).
Fixed leaf closes automatically. Moving leaf remains in waiting position of closing sequence control and also
closes when fixed leaf is closed.
7.2 Testing for acceptance (only for use in a hold-open device)
An acceptance test must be carried out in order to ascertain the correct function and installation according to
the regulations once the installation has been completed on site. Acceptance test to be performed by authorised
personnel; see "Instructions for Installation, Commissioning, Operation and Maintenance of the GEZE Hold-Open
Device FA GC".
8 Maintenance, servicing, repairs
Regular servicing has to be carried out. For more information on this, please observe the document "Instructions
for Installation, Commissioning, Operation and Maintenance of the GEZE Hold-Open Device FA GC".
9

Technical data

For technical data, please observe the document "Instructions for Installation, Commissioning, Operation and Main-
tenance of the GEZE Hold-Open Device FA GC".
Initial operation
Fig.: 7.1.1
GB 9
