(12) (13) (14)

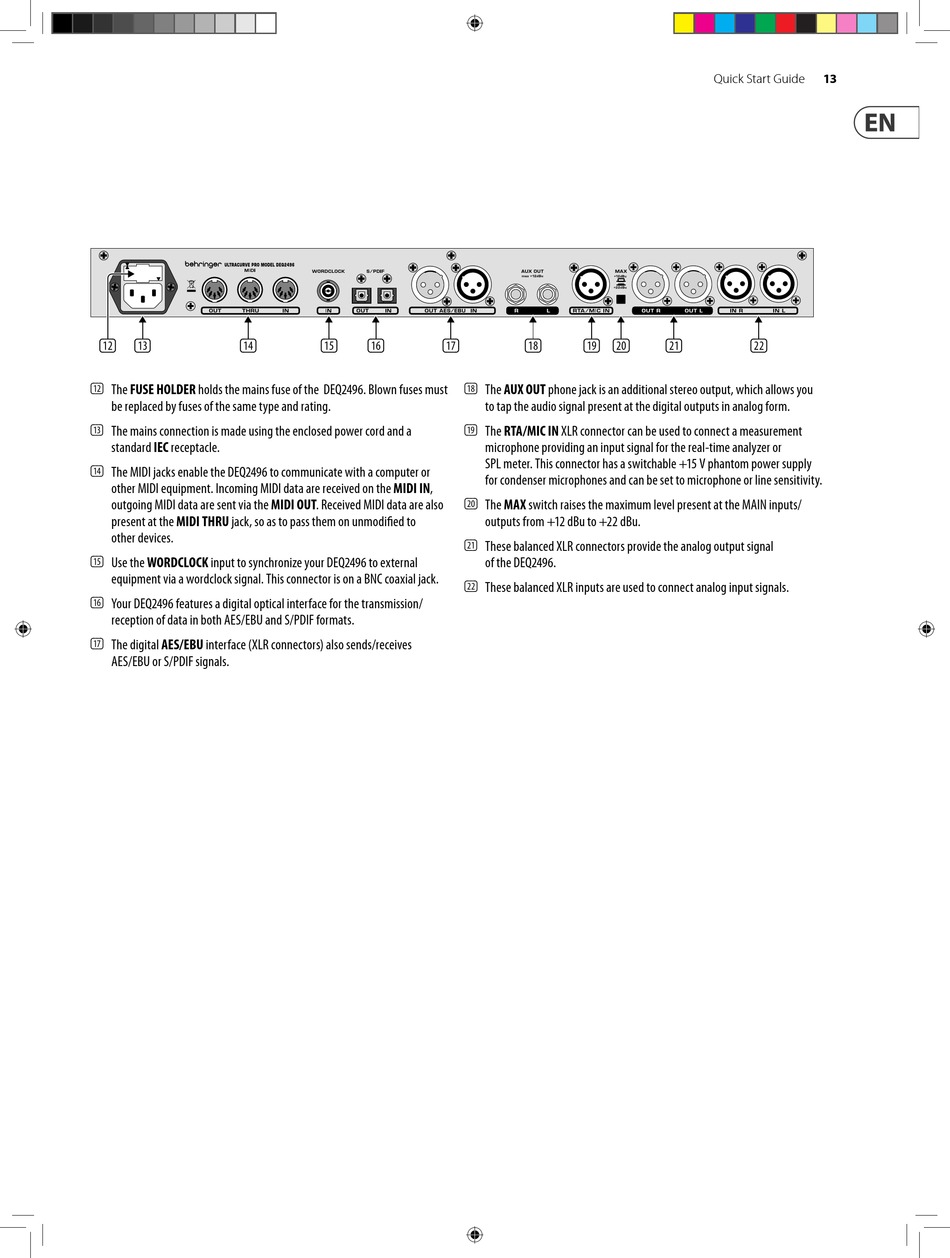

(12) The FUSE HOLDER holds the mains fuse of the DEQ2496. Blown fuses must
be replaced by fuses of the same type and rating.
(13) The mains connection is made using the enclosed power cord and a
standard IEC receptacle.
(14) The MIDI jacks enable the DEQ2496 to communicate with a computer or
other MIDI equipment. Incoming MIDI data are received on the MIDI IN,
outgoing MIDI data are sent via the MIDI OUT. Received MIDI data are also
present at the MIDI THRU jack, so as to pass them on unmodified to
other devices.
(15) Use the WORDCLOCK input to synchronize your DEQ2496 to external
equipment via a wordclock signal. This connector is on a BNC coaxial jack.
(16) Your DEQ2496 features a digital optical interface for the transmission/
reception of data in both AES/EBU and S/PDIF formats.
(17) The digital AES/EBU interface (XLR connectors) also sends/receives
AES/EBU or S/PDIF signals.
(15) (16) (17)
(18) The AUX OUT phone jack is an additional stereo output, which allows you
to tap the audio signal present at the digital outputs in analog form.
(19) The RTA/MIC IN XLR connector can be used to connect a measurement
microphone providing an input signal for the real-time analyzer or
SPL meter. This connector has a switchable +15 V phantom power supply
for condenser microphones and can be set to microphone or line sensitivity.
(20) The MAX switch raises the maximum level present at the MAIN inputs/
outputs from +12 dBu to +22 dBu.
(21) These balanced XLR connectors provide the analog output signal
of the DEQ2496.
(22) These balanced XLR inputs are used to connect analog input signals.
(18) (19) (20) (21)
13
Quick Start Guide
(22)
