6

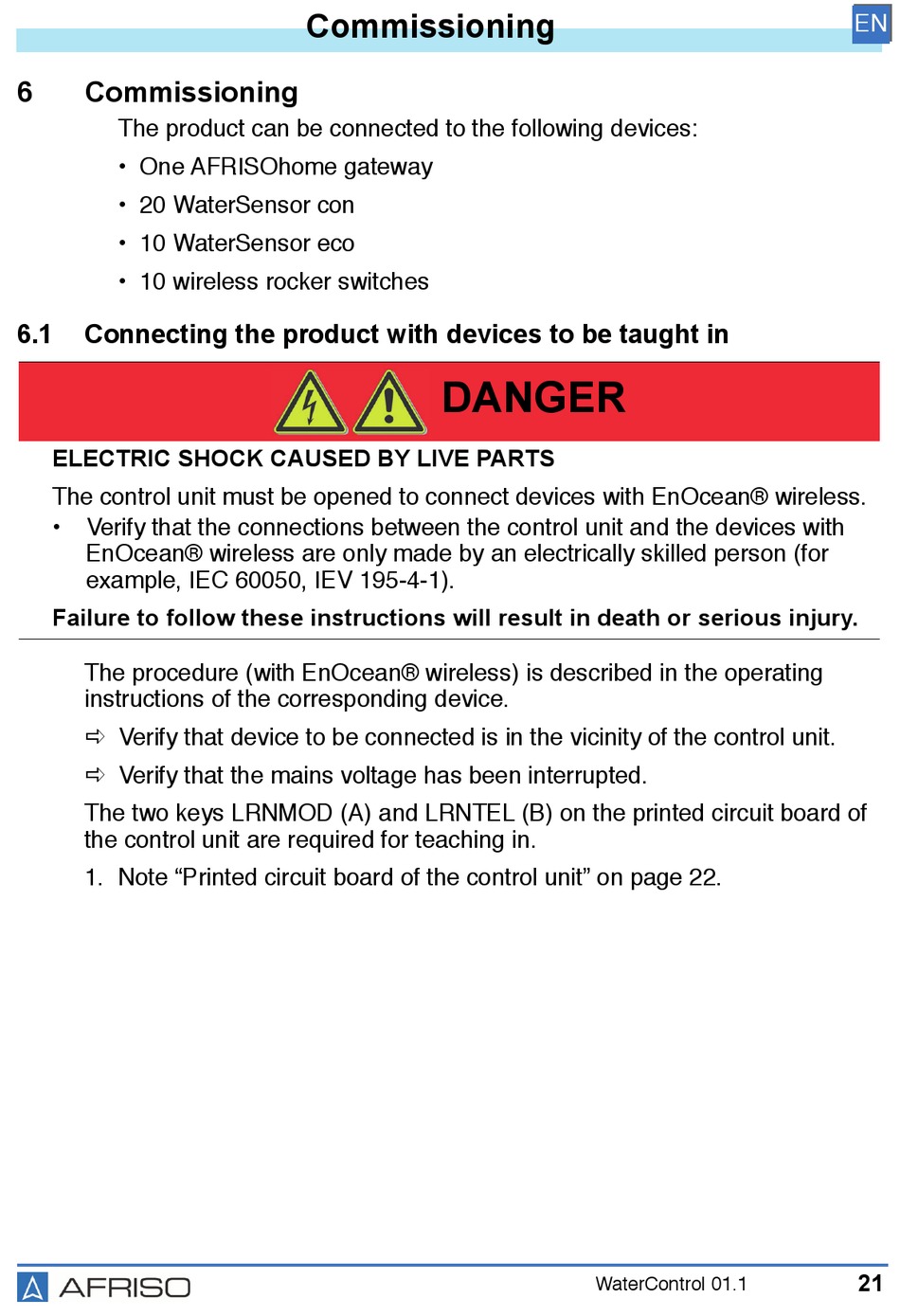

Commissioning
The product can be connected to the following devices:
• One AFRISOhome gateway
• 20 WaterSensor con
• 10 WaterSensor eco
• 10 wireless rocker switches
6.1
Connecting the product with devices to be taught in
ELECTRIC SHOCK CAUSED BY LIVE PARTS
The control unit must be opened to connect devices with EnOcean® wireless.
•
Verify that the connections between the control unit and the devices with
EnOcean® wireless are only made by an electrically skilled person (for
example, IEC 60050, IEV 195-4-1).
Failure to follow these instructions will result in death or serious injury.
The procedure (with EnOcean® wireless) is described in the operating
instructions of the corresponding device.
Verify that device to be connected is in the vicinity of the control unit.
Verify that the mains voltage has been interrupted.
The two keys LRNMOD (A) and LRNTEL (B) on the printed circuit board of
the control unit are required for teaching in.
1. Note "Printed circuit board of the control unit" on page 22.
Commissioning
DANGER
WaterControl 01.1
EN
21
