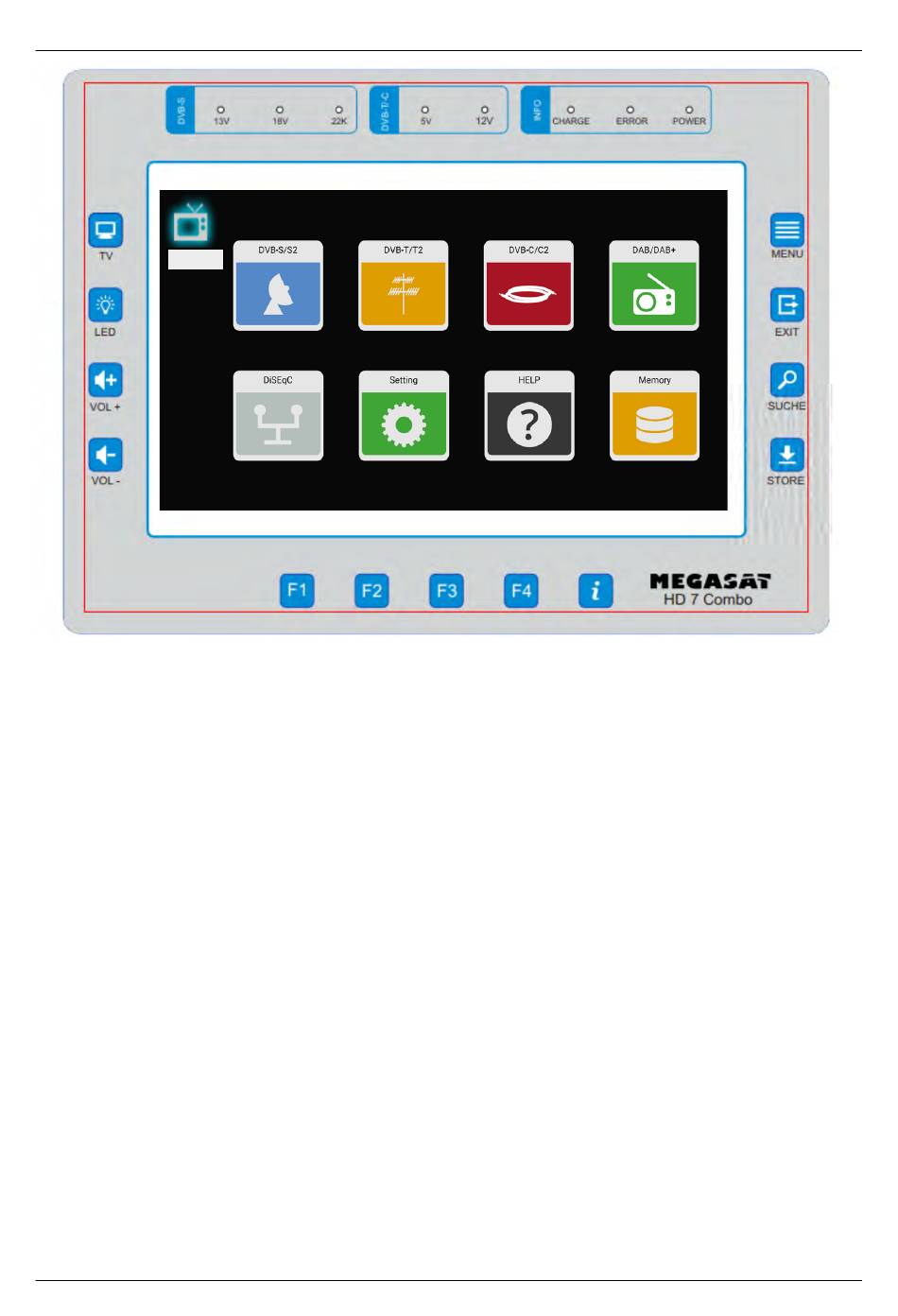

Operation and key assignment
Live TV
1. Display
8,9 Zoll (22,6 cm) Touchscreen color display
2. DVB-T/C
5V-T:
12V-T:
3. DVB-S
13V:
18V:
22k:
4. POWER
The LED lights up green when the unit is ready for operation.
5. CHARGE
The LED lights up red when the unit is charging.
ERROR
The LED lights up if there is a fault on the cable or on the LNB.
(example: short-circuit on the cable).
6. TV
Switches to live TV playback mode.
LED
Switches the LED light on the back on / off.
VOL+
Volume control (louder).
7. VOL-
Volume control (lower).
8. F-Buttons Function keys (depending on the menu item).
9. MENU
Switches to the menu.
10. EXIT
Exits the respective menu step by step.
11. SEARCH
Switches to the DVB Finder.
12. STORE
Saves the current measurement data (screenshot).
13. Touch
Live TV:
DVB-S/S2:
DVB-T/T2:
DVB-C/C2:
DAB/DAB+: Menu for DVB/DAB+ signal search and analysis.
DiSEqC:
Setting:
Help:
Store:
04
DISPLAY
The LED lights up when the 5 volt supply is on.
The LED lights up when the 12 volt supply is on.
The LED lights up when the 13 volt LNB supply is on.
The LED lights up when the 18 volt LNB supply is on.
The LED lights up when the 22k supply is on.
Starts live TV playback
Menu for DVB-S signal search and analysis.
Menu for DVB-T signal search and analysis.
Menu for DVB-C signal search and analysis.
Measurement and control of DiSEqC commands
Menu for setting language, volume, software....
Opens the digital user manual
Manage the stored measurement data.
