Tecfrigo VKG 511 Zusammenbau Und Betrieb Seite 8

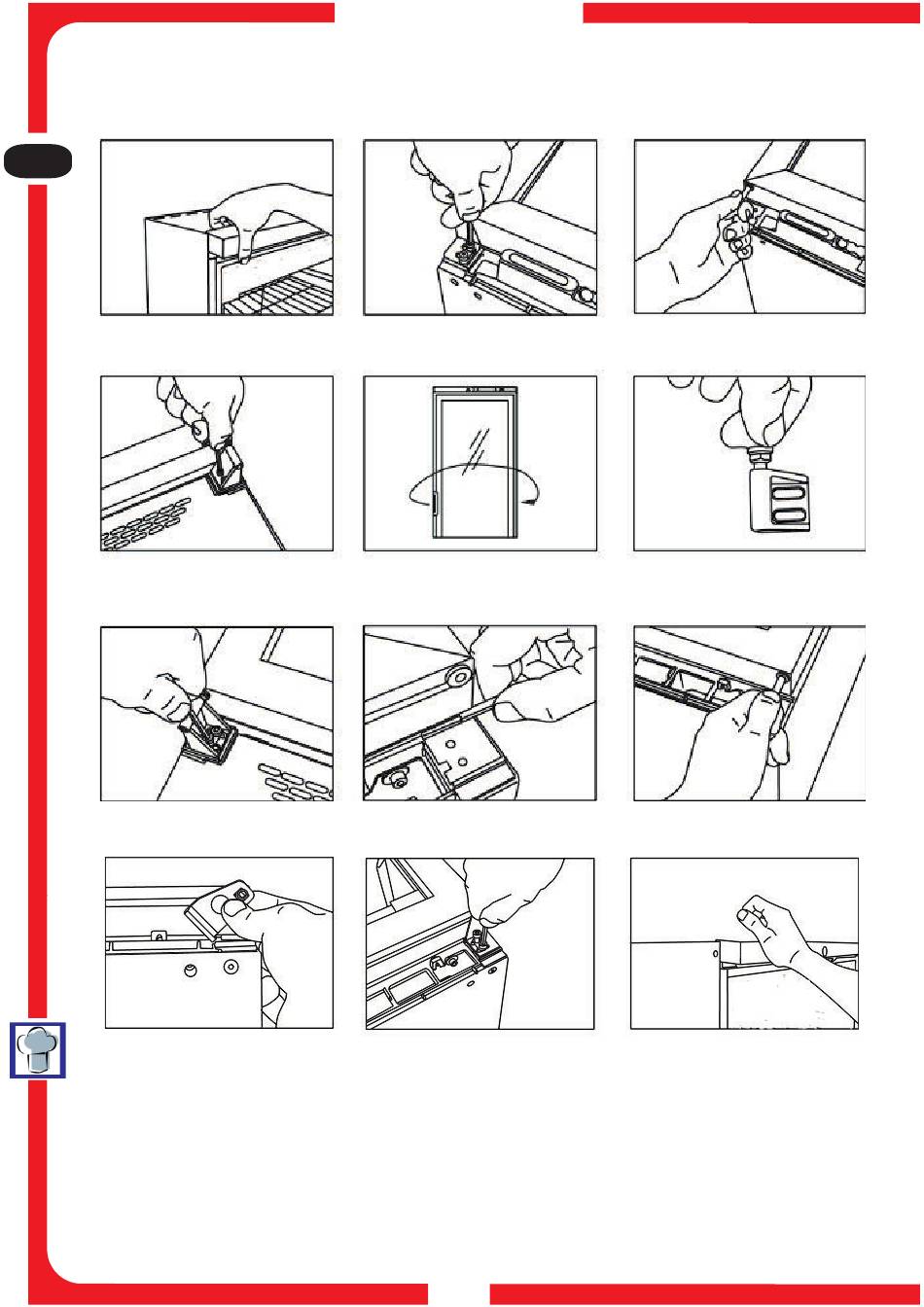

1. Remove the lock pin using
a flat-headed screwdriver.
I
UK
D
E
F
NL
4. Tilt the top panel forwards
to remove it (it is secured in
P
tree places)
S
DK
FIN
B
GR
7. Remove the bottom hinge
CZ
using the hex key.
EE
LV
LT
H
M
PL
10. Refit the bottom hinge on the
opposite side.
SK
SLO
13. Fit the left-side top hinge
(available as extra).
Tighten the tosion spring
approx. 1/2 turn
(anticlockwise on left side,
clockwise on rigth.)
Operator's guide
2. Remove the lock housing
5. Lay the appliance on its back
and remove the upper hinge,
using the hex key.
8. Move the door handle to the
opposite side.
11. Move the palstic door guard
to the opposite side.
14. Secure the top hinge in
position.
8
3. Loosen the top panel. Do not
remove the screws,
just loosen them.
6. Pull the torsion spring out of the
door together with the hinge.
9. Move the hinge pin to the
opposite side of the bottom hinge.
12. Insert the hinge pin and tosion
spring into the the top of the door on
the opposite side.
15. Raise the appliance into
uppight possion. Click the top
panel into place (it is secured
in three places.)
