Installation

A

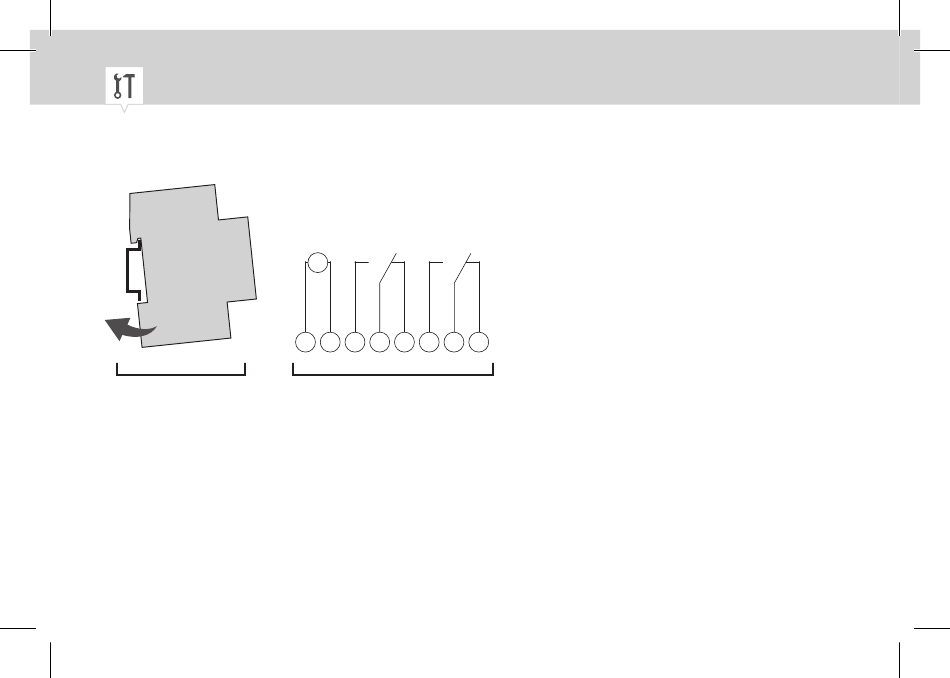

Fig. 5: Installation on a DIN rail and circuit diagram
B
2-channel extension
1. Place the channel extension on the DIN rail (Fig. 5/A) from above and press it back until it locks
into place.
2. Connect the channel extension in accordance with the circuit diagram (Fig. 5/B) (use wires with a
cross-section between 1 mm² and 2.5 mm²).
28
CH1 CH2
M
~
L N 1 2 3 5 6 7
B
