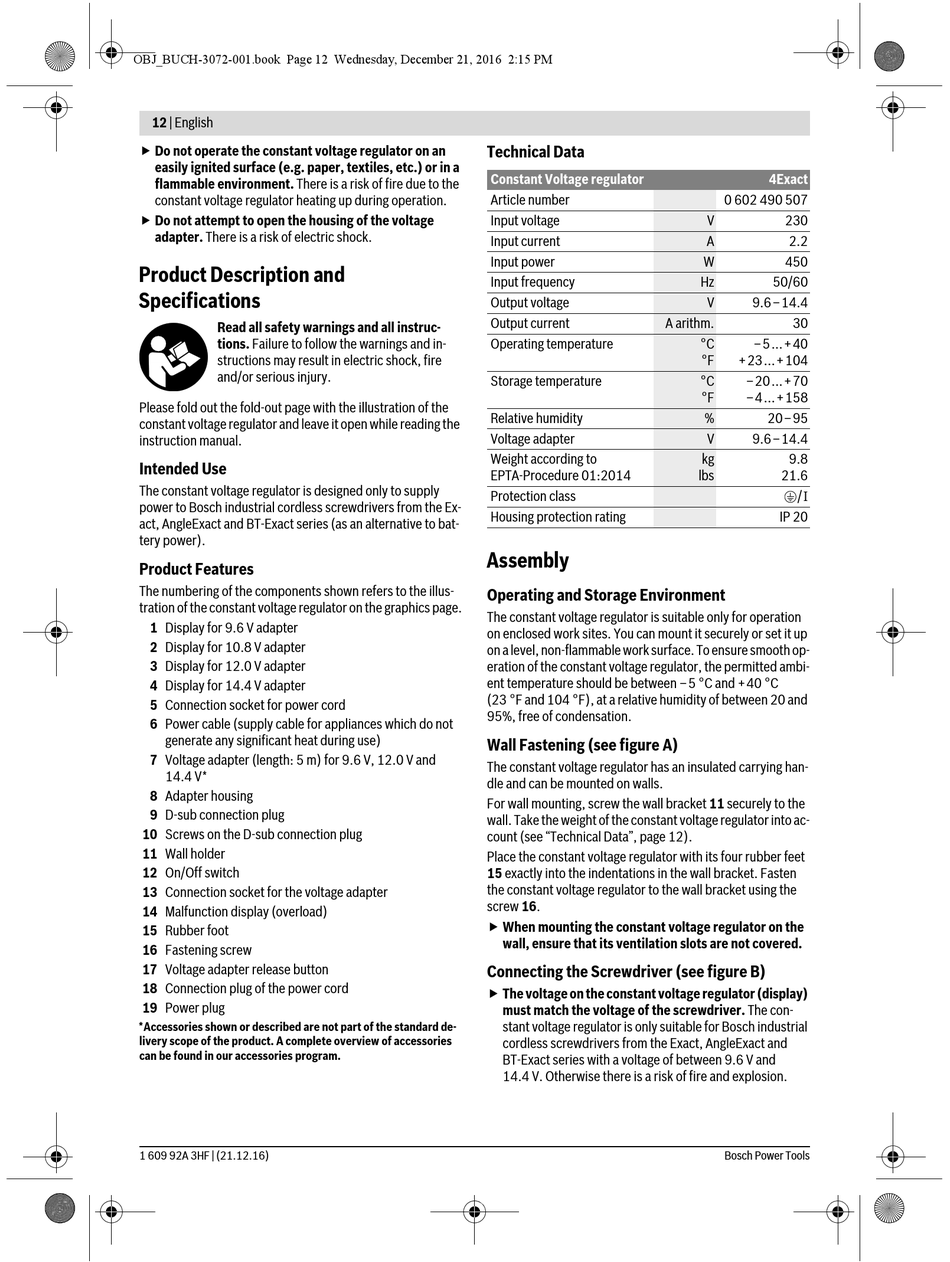

 Do not operate the constant voltage regulator on an
easily ignited surface (e.g. paper, textiles, etc.) or in a
flammable environment. There is a risk of fire due to the
constant voltage regulator heating up during operation.
 Do not attempt to open the housing of the voltage
adapter. There is a risk of electric shock.
Product Description and
Specifications
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Please fold out the fold-out page with the illustration of the
constant voltage regulator and leave it open while reading the
instruction manual.
Intended Use
The constant voltage regulator is designed only to supply
power to Bosch industrial cordless screwdrivers from the Ex-
act, AngleExact and BT-Exact series (as an alternative to bat-
tery power).
Product Features
The numbering of the components shown refers to the illus-
tration of the constant voltage regulator on the graphics page.
1 Display for 9.6 V adapter
2 Display for 10.8 V adapter
3 Display for 12.0 V adapter
4 Display for 14.4 V adapter
5 Connection socket for power cord
6 Power cable (supply cable for appliances which do not
generate any significant heat during use)
7 Voltage adapter (length: 5 m) for 9.6 V, 12.0 V and
14.4 V*
8 Adapter housing
9 D-sub connection plug
10 Screws on the D-sub connection plug
11 Wall holder
12 On/Off switch
13 Connection socket for the voltage adapter
14 Malfunction display (overload)
15 Rubber foot
16 Fastening screw
17 Voltage adapter release button
18 Connection plug of the power cord
19 Power plug
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
1 609 92A 3HF | (21.12.16)
Technical Data
Constant Voltage regulator
Article number
Input voltage
Input current
Input power
Input frequency
Output voltage
Output current A arithm.
Operating temperature
Storage temperature
Relative humidity
Voltage adapter
Weight according to
EPTA-Procedure 01:2014
Protection class
Housing protection rating
Assembly
Operating and Storage Environment
The constant voltage regulator is suitable only for operation
on enclosed work sites. You can mount it securely or set it up
on a level, non-flammable work surface. To ensure smooth op-
eration of the constant voltage regulator, the permitted ambi-
ent temperature should be between –5 °C and +40 °C
(23 °F and 104 °F), at a relative humidity of between 20 and
95%, free of condensation.
Wall Fastening (see figure A)
The constant voltage regulator has an insulated carrying han-
dle and can be mounted on walls.
For wall mounting, screw the wall bracket 11 securely to the
wall. Take the weight of the constant voltage regulator into ac-
count (see "Technical Data", page 12).
Place the constant voltage regulator with its four rubber feet
15 exactly into the indentations in the wall bracket. Fasten
the constant voltage regulator to the wall bracket using the
screw 16.
 When mounting the constant voltage regulator on the
wall, ensure that its ventilation slots are not covered.
Connecting the Screwdriver (see figure B)
 The voltage on the constant voltage regulator (display)
must match the voltage of the screwdriver. The con-
stant voltage regulator is only suitable for Bosch industrial
cordless screwdrivers from the Exact, AngleExact and
BT-Exact series with a voltage of between 9.6 V and
14.4 V. Otherwise there is a risk of fire and explosion.
4Exact
0 602 490 507
V 230
A 2.2
W 450
Hz 50/60
V 9.6–14.4
30
°C –5...+40
°F +23...+104
°C –20...+70
°F –4...+158
% 20–95
V 9.6–14.4
kg 9.8
lbs 21.6
/I
IP 20
