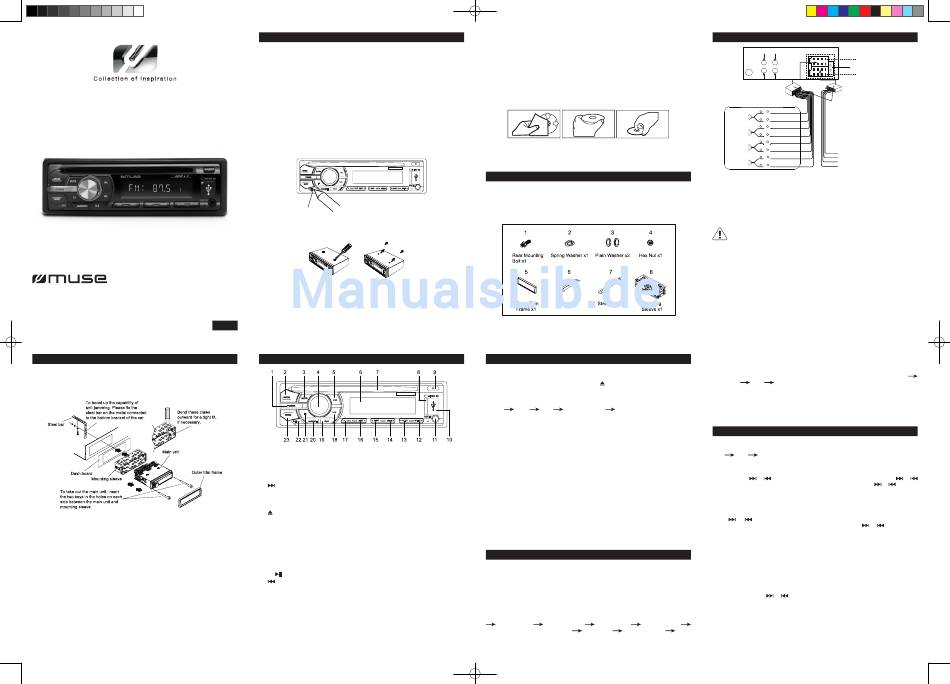

M-1009 MR
CAR RADIO CD/MP3 PLAYER WITH USB & MICRO SD
USER MANUAL
Please read the instruction carefully before operating the unit.

INSTALLATION

The unit is installed to be an anti-theft one. The chassis of the unit wears a sliding metal
housing. Please do the connection of the power. Speakers and antenna are according
to the requirement of the instruction book. Then install the sliding metal housing in the
car as follows:
GB - 4
AR-3728 IB MUSE 001 REV0 GB.indd 1
PRECAUTIONS
1. Do not attempt to modify the unit, modifying the unit may cause an accident.
2. Installation or servicing of the unit by persons without training and experience in
electronic equipment and automotive accessories may be dangerous and could expose
you to the risk of electric shock or other hazards.
3. Stop the vehicle before carrying out any operation that could interfere with your driving.
4. Keep the volume at a level which you could hear sounds from outside the vehicle.
5. Do not work in extremely high or low temperature. Be sure the temperature inside the
vehicle is between +60°C and -10°C before turning on your unit.
6. When replacing the fuse(s), the replacement must be of the same amperage as
shown on the fuse holder.
7. Do not block vents or radiator panels. Blocking them will cause heat to build up inside
and may result in fire.
8. Using this unit without running the engine can result in battery drainage.
9. Use only in cars with a 12 volt negative ground.
10. After completing the installation and beginning to play the unit (including replacing
the battery), press RES (RESET) button with pointed object (such as ball-point pen)
to set the unit to initial status.
Reset
11. Before you install the unit, remove absolutely the two transportation screws on top
of the unit.
English
GB - 1
LOCATION OF CONTROLS
1. POWER button: To turn on/ off the unit.
2. MODE button: To select function mode
3. MUTE button: To mute or restore sound
4. Volume, select, enter knob
5. button
6. LCD display
7. Disc slot
8. Micro SD card slot
9. disc eject button
10. USB port
11. AUX IN jack
12. 6 / +10 button: To select preset channel 6 in radio mode. To select 10 track forward.
13. 5 / -10 button: To select preset channel 5 in radio mode. To select 10 track backward.
14. 4 / RDM button: To select preset channel 4 in radio mode. To start/ cancel random
playback
15. 3 / RPT button: To select preset channel 3 in radio mode. To repeat playback.
16. 2 / INT button: To select preset channel 2 in radio mode. To start/ cancel intro playback.
17. 1 / button: To select preset channel 1 in radio mode. To start or pause playback.
18. button
19. CLK (Clock) button: To set clock time
20. AMS/SCH button: Automatic storing; Search a track
21. TA button
22. RES button: Reset
23. BAND button
GB - 5
Notes on disc
• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result
in malfunctions.
• Do not place more than one disc in the disc compartment.
• Only 12cm discs are compatible.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before
playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't
store discs in places with high temperatures or high humidity, they can become warped.
After playing, store the disc in its case.
• CD-Rs or CD-RWs playback capability at this player may vary depending on quality of
media, CD-Burner, speed of burning and application software.
Important Note
• Before transporting the unit, remove the disc from the disc compartment.
UNPACK YOUR UNIT
When you unpack your new car radio, make sure that you have removed all the
accessories and information papers:
Main unit
User manual
Accessories:
GB - 2
BASIC OPERATION
Turning on/off the unit
Press POWER button to turn on the unit. Press this button again to turn off the unit.
Note: When the unit is off, press any key except to turn on the unit.
Selecting the mode
When the unit is on, press MODE button repeatedly to select different source mode:
RADIO DISC USB SD (MICRO SD) AUX IN.
Adjust time:
1. When the unit is on, press and hold CLK button to enter into setting mode. The hour
digits will flash.
2. Rotate volume knob anti-clockwise and clockwise to adjust the hour value. Press this
button again to confirm the hour value.
3. The minute digits will flash, rotate volume knob anti-clockwise and clockwise to adjust
the minute value. Press CLK button to confirm.
Noted: It will confirm your setting if no key is pressed within 5 seconds.
Time display
Press CLK button to display the current time when unit is ON.
NOTE: It will return to normal play mode if no key is pressed within 5 second.
Reset the unit
Operating the unit for the first time or after replacing the car battery, you must reset the
unit. To set the unit to initial status, press RES button on front panel with a pointed object.
When some errors occur in display, you can also reset the unit, but it will erase the clock
setting and some memorized functions.
SOUND FEATURES
Volume adjusting:
To increase or decrease the sound level, rotate volume knob clockwise or anti-clockwise.
Muting the sound
When the unit is ON, press MUTE to mute the sound. Press again to restore.
Using volume knob to select sound feature
Repeatedly press volume knob
To select the desired mode for sound setting in the following order: "BAS" (BASS)
"TRE" (Treble) "BAL" (Balance) "FAD" (Fader) LOUD ON/OFF
DSP OFF/ CLASSICS/ POP/ ROCK DX/ LOCAL STEREO/MONO
After selecting the desired mode, you can adjust the level by rotating the volume knob.
GB - 6
CONNECTION
Front RCA Rear RCA
Right Right
1 3 5 7
Antenna
2 4 6 8
Socket Fuse holder (15A)
1 3 5 7
2 4 6 8
Front RCA Rear RCA
Left Left
ISO cable
4-SPEAKER SYSTEM
(Not supplied)
(GREEN/BLACK)
- - B8
Rear Left
Speaker
+ + (GREEN)
B7
- - (WHITE/BLACK) B6
Front Left
(WHITE)
Speaker B5
+ +
(GRAY/BLACK)
- - B4
Front Right
(GRAY) B3
Speaker + +
A8
Ground wire (Black)
(VIOLET/BLACK) B2 A7
- -
Ignition wire (Red)
A5
Rear Right
Power Antenna Amplifier Turn On (Blue)
Speaker (VIOLET) B1
+ + A4
+12VConstant Power Supply (Yellow)
Caution!
- Make sure to connect the color coded leads according to the diagram. Incorrect
connections may cause the unit to malfunction or damage the vehicle's electrical system.
- Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect
the left and right channel speaker cables each other or to the vehicle body.
- Make sure all the connections are completely correct before turning on your unit.
Do not connect the ignition wire (red) and the battery wire (yellow), it may cause
a short circuit, even result in fire.
GB - 3
Preset equalizer (EQ)
When you are listening to pop music, classic music or rock music, use the equalizer
to adjust the sound quality. Repeatedly press volume knob to select "DSP OFF" and
rotate volume knob to select different equalizer mode in following order: DSP OFF
CLASSICS POP ROCK.
Switching Loudness On/off
By this function, you can increase the low frequency, which can improve sound sensitivity.
Noted: Please refer to "LISTENING TO THE RADIO" for others items operation.
LISTENING TO THE RADIO
Selecting band
In tuner mode, repeatedly press BAND button to select bands in following order:
FM1 FM2 FM3.
Manual/automatic tuning
- Manual Tuning
Press and hold or button until "MANUAL" shows on display, then press
continuously to select a station downward or upward. Press and hold
tune the station with a faster speed.
Note: it will return to automatic tuning mode if no key is pressed within 2 seconds. "AUTO"
will shows on display 2 seconds.
- Automatic Tuning
Press or button once, the radio automatically searches a station upward or
downward respectively and plays when it finds a station. Press
to stop scanning.
Scanning and memorizing stations
- By AMS/SCH button
1. In tuner mode, press and hold AMS/SCH button for 3 seconds to start scanning for
stations and store them automatically in memory. All preset stations are scrolled during
few seconds.
2. Press AMS/SCH button once to preview the preset stations. To remain on a station,
press again the AMS/SCH button.
- By number button 1- 6
1. Tune to a station by or button.
2. Press and hold one of the 1- 6 number buttons for 2 seconds until display shows the
corresponding number, which indicates that station is stored in the corresponding
number button.
3. Under radio mode, press 1- 6 number buttons to listen to stored stations.
4. When you are listening to a station stored on a number button, press and hold another
VOL. number button for more than 2 seconds to store the station on this number button.
Note: The unit can be stored up to 6 stations for each band.
GB - 7
ISO connector B
ISO connector A
or
or button to
or buttons again
