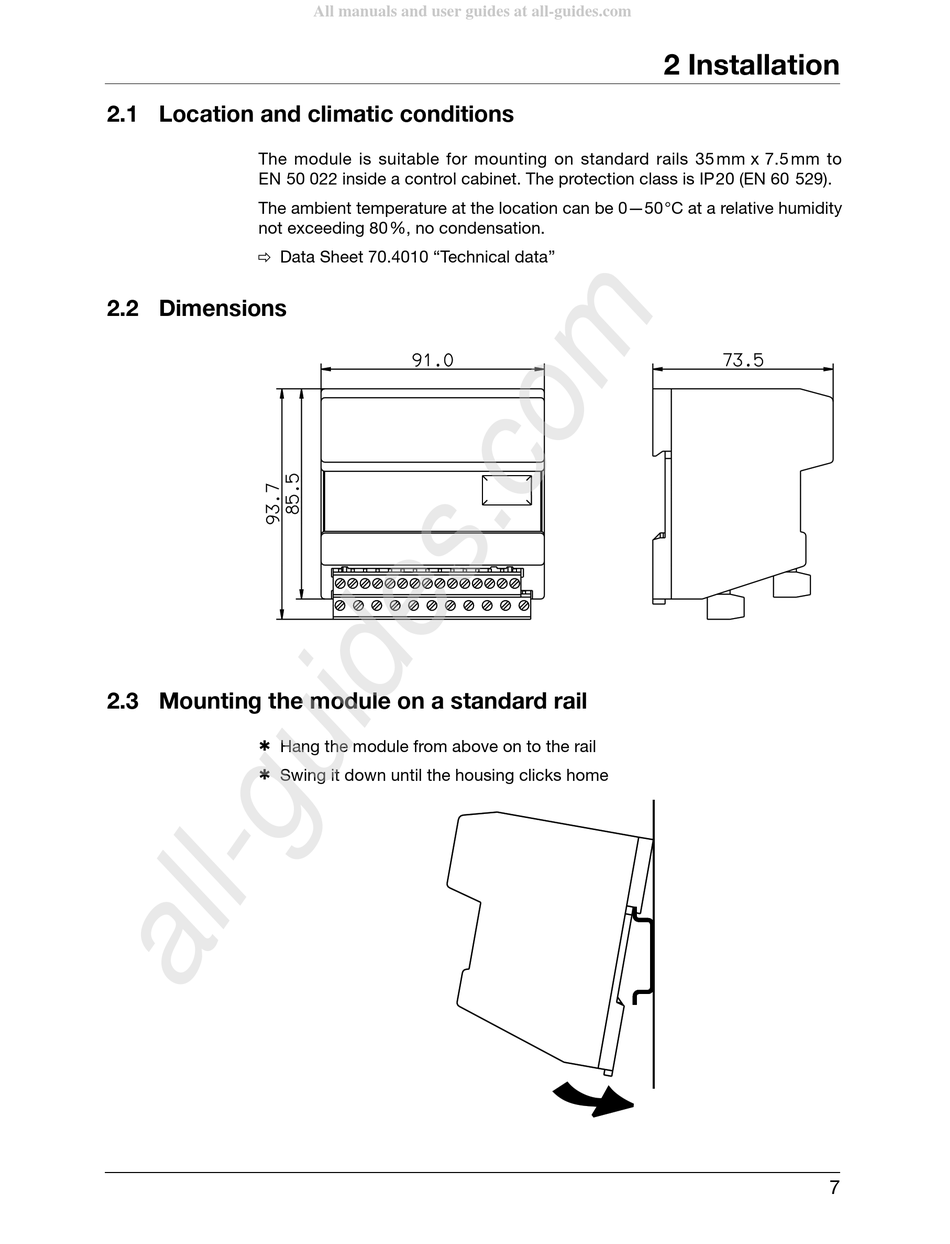

2.1 Location and climatic conditions

The module is suitable for mounting on standard rails 35 mm x 7.5 mm to
EN 50 022 inside a control cabinet. The protection class is IP20 (EN 60 529).
The ambient temperature at the location can be 0—50°C at a relative humidity
not exceeding 80%, no condensation.
v Data Sheet 70.4010 "Technical data"

2.2 Dimensions

2.3 Mounting the module on a standard rail

h Hang the module from above on to the rail
h Swing it down until the housing clicks home
