4 Produktübersicht
4.3
Systemaufbau
MULTICLUSTER BOX
(AC-Hauptverteiler)
VERBRAUCHER

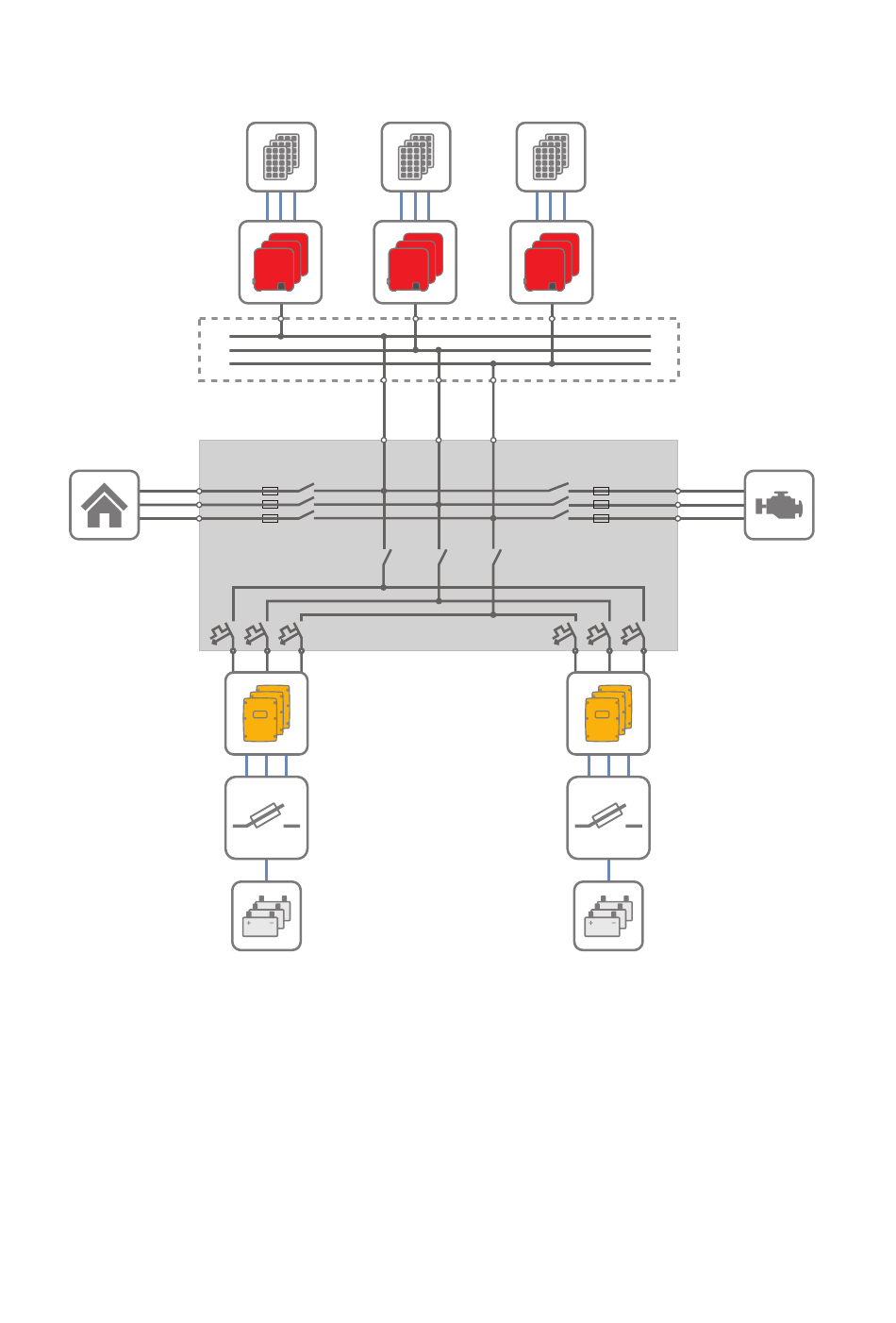

Abbildung 3: Verschaltungsprinzip eines Multicluster-Systems – Beispiel mit Multicluster-Box
14
MC-BOX-6-3-BE-de-30
Verbraucherschütz
SMA Solar Technology AG
PV-MODULE
PV-WECHSELRICHTER
Generatorschütz
Sunny Island-Schütz
SUNNY ISLAND
BATTERIESICHERUNG
BATTERIE
PV-Hauptverteiler
(nicht Lieferbestandteil)
GENERATOR
