System description

5.1

Main structure and basic principle

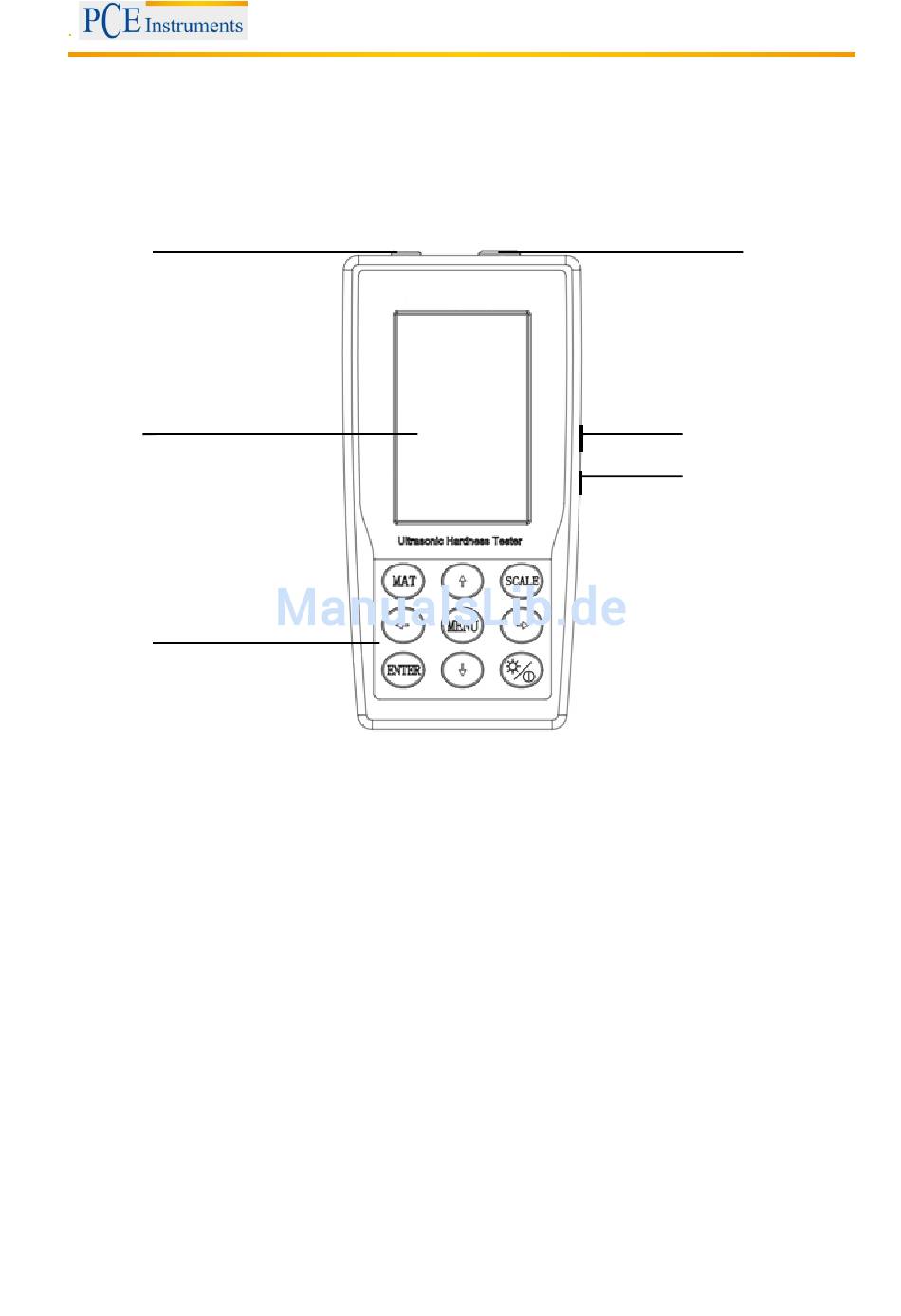

Front and back view of the ultrasonic hardness tester
1
6
5
1. 4-pin socket
2. 8-pin socket
3. Power button
4. USB-interface
5. Operation panel
6. Display
Manual
7
2
3
4
