dallmeier DF5050HD-DN Montagehinweise

DF5050HD-DN Picoline

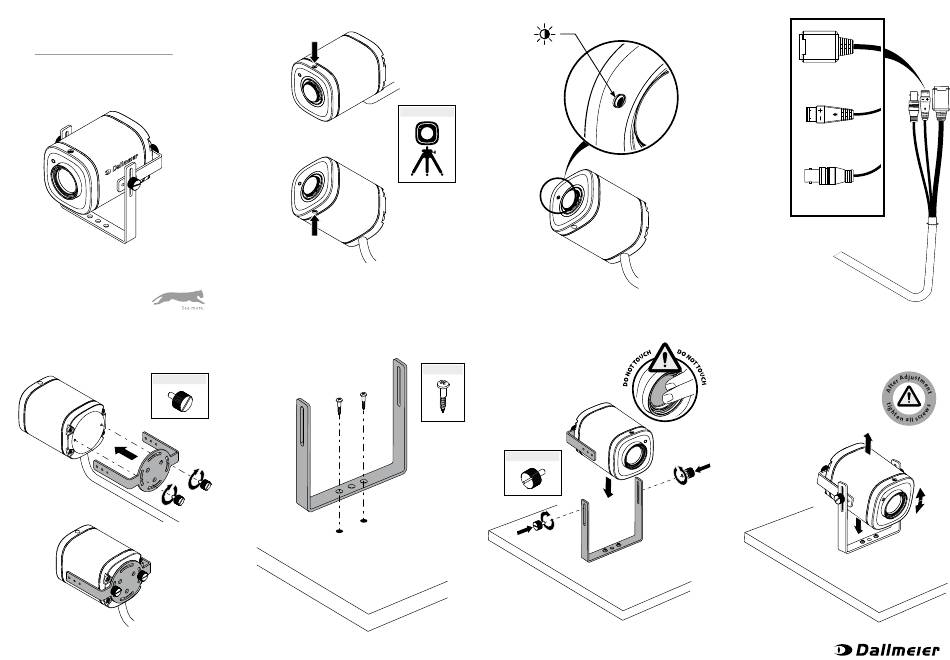

Commissioning
❹
M3×6 mm
2×
008206 | REV. 1.0.0 | 2020-12-02
❶
UNC 1/4"-20
❺
2×
Copyright © 2020 Dallmeier electronic GmbH & Co.KG • Bahnhofstr. 16, 93047 Regensburg, Germany • tel +49 941 8700 0 • fax +49 941 8700 180 • info@dallmeier.com • www.dallmeier.com
❷
❻
⌀ 4 mm
M3×6 mm
2×
❸
LAN (RJ45) / PoE
(Class 0, IEEE 802.3af)
Power IN (12 V DC)
Analog Video OUT
(BNC RG-59)
❼
