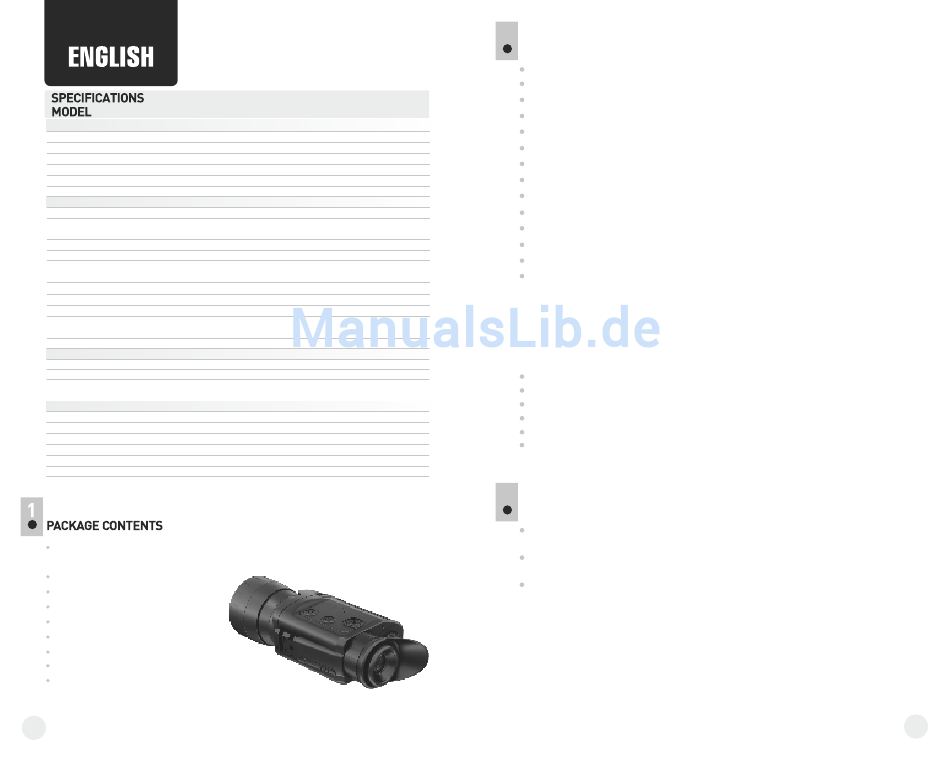

Optical characteristics
Magnification, x
Objective lens
Max. detection range with laser IR on, m/yds*
Field of view, degree
Eyepiece dioptre adjustment, D
Resolution, lines/mm
Operational characteristics
Operating voltage, V
Operation time with one set
of rechargeable batteries (built-in IR off/on/rec), hour
Output video signal standard
Camera resolution (CCIR/EIA)
Type of CCD sensor CCIR
EIA
Min/max working illuminance (f1.2, S/N 20dB), lux
Tripod mount, inch
Operating temperature
Dimensions, mm:
inch:
Weight (without batteries), kg/oz
Characteristics of the built-in laser IR Illuminator
Wavelength, nm
Equivalent power, mW
Safety class for laser equipment according to
IEC 60825-1:2007
Characteristics of the video recorder
TV system
Video/photo format
Video/photo resolution
Frame frequency
Horizontal resolution
Type of memory card
* Max. detection range of an object measuring 1.7x0.5 m in natural night conditions (0.05 lux,
quarter moon).
** Depending on the region of sale.
Digital Night Vision
Recon 750/750R
Carrying case
Wrist strap
Video cable
SD memory card***
Tripod adapter***
Lens cloth
User manual
Warranty card
*** Supplied with Recon 750R. Capacity of the supplied memory card
is determined by the manufacturer.
For improvement purposes, design of this product is subject to change.
2
78023 78033
RECON 750 RECON 750R
4 4
50 mm, F/ 1.0 50 mm, F/ 1.0
350 / 383 350 / 383
5.5 5.5
±5 ±5
≥40 ≥40
6 (4xAA) 6 (4xAA)
12 / 9 / - 12 / 9 / 3.5
CCIR / EIA** CCIR / EIA**
500x582/510x492 500x582/510x492
Sony ICX-255AL,1/3" Sony ICX-255AL,1/3"
Sony ICX-254AL,1/3" Sony ICX-254AL,1/3"
0.005 / 30000 0.005 / 30000
¼ ¼
-10 °C ~ +45 °C / +14 °F +113 °F
176x83x62 176x83x62
7.4x3.3x2.4 7.4x3.3x2.4
0.4 / 17.6 0.42 / 14.8
780 780
125 125
1 1
-
PAL/NTSC
- AVI/JPG
-
640x480, 320x240
-
30 frames/sec
-
420 TV lines
-
SD (4Gb)
2
FEATURES
Built-in laser IR Illuminator
Video and photo function (Recon 750R)
Sensitive CCD array
High Aperture Lens (F/d=1.0)
High Resolution
Long Viewing Distance
New Eyepiece Enhancing Image Sharpness/ Contrast
Compact & Lightweight
Video Output
Resistant to Bright Light Exposure
Contrast Gain Function
User Choice of the LCD's Emission Color
Additional Weaver MIL-STD-1913 Rail for Accessories
Ergonomic eyeshade that protects against lateral ambient light
Your digital night vision monocular Recon 750/750R is perfectly suited
to a wide range of applications including:
Outdoor observation
Video recording and image capture
Hunting & camping
Sports and night navigation/observation
Search and rescue
Equipment maintenance
3

BATTERY INSTALLATION

Turn the lever of the battery compartment (12) 90 degrees in "Open"
position and remove the battery cap.
Install four AA batteries as indicated (see illustration). Rechargeable
batteries are recommended for use.
Replace the battery cap and
Attention! Please do not use batteries of different types or batteries
with various charge level.
turn the lever 90 degrees clockwise
