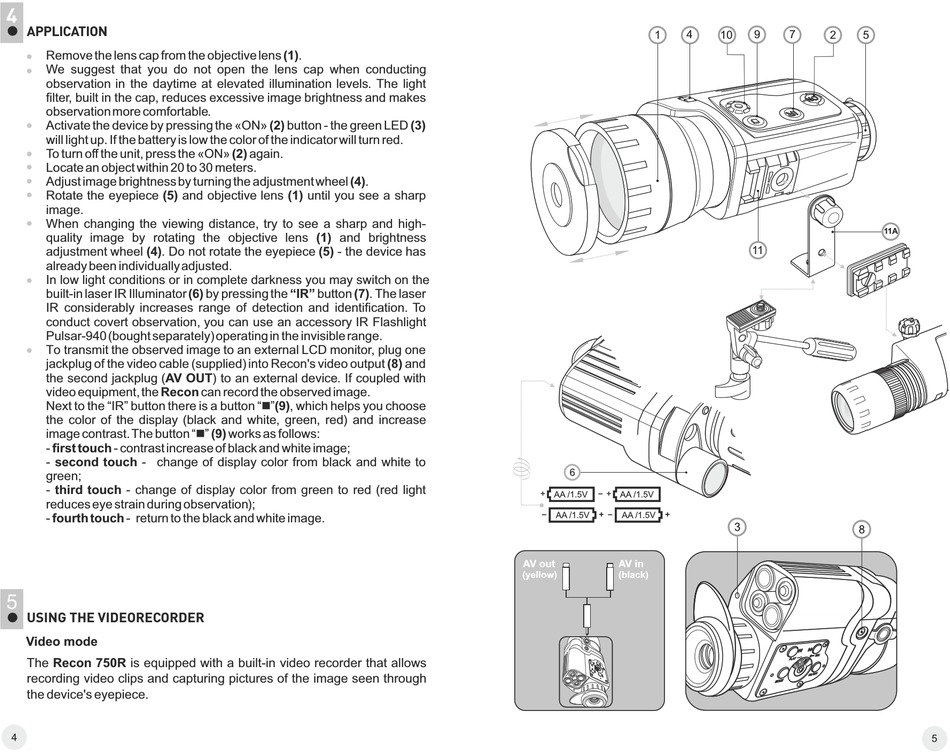

APPLICATION
Remove the lens cap from the objective lens (1).
We suggest that you do not open the lens cap when conducting
observation in the daytime at elevated illumination levels. The light
filter, built in the cap, reduces excessive image brightness and makes
observation more comfortable.
Activate the device by pressing the «ON» (2) button - the green LED (3)
will light up. If the battery is low the color of the indicator will turn red.
To turn off the unit, press the «ON» (2) again.
Locate an object within 20 to 30 meters.
Adjust image brightness by turning the adjustment wheel (4).
Rotate the eyepiece (5) and objective lens (1) until you see a sharp
image.
When changing the viewing distance, try to see a sharp and high-
quality image by rotating the objective lens (1) and brightness
adjustment wheel (4). Do not rotate the eyepiece (5) - the device has
already been individually adjusted.
In low light conditions or in complete darkness you may switch on the
built-in laser IR Illuminator (6) by pressing the "IR" button (7). The laser
IR considerably increases range of detection and identification. To
conduct covert observation, you can use an accessory IR Flashlight
Pulsar-940 (bought separately) operating in the invisible range.
To transmit the observed image to an external LCD monitor, plug one
jackplug of the video cable (supplied) into Recon's video output (8) and
the second jackplug (AV OUT) to an external device. If coupled with
video equipment, the Recon can record the observed image.
Next to the "IR" button there is a button ""(9), which helps you choose
the color of the display (black and white, green, red) and increase
image contrast. The button "" (9) works as follows:
- first touch - contrast increase of black and white image;
- second touch - change of display color from black and white to
green;
- third touch - change of display color from green to red (red light
reduces eye strain during observation);
- fourth touch - return to the black and white image.
5
USING THE VIDEORECORDER
Video mode
The Recon 750R is equipped with a built-in video recorder that allows
recording video clips and capturing pictures of the image seen through
the device's eyepiece.
4
1
4
-
+
+
-
-
+ +
+ +
AV out
AV in
(yellow)
(black)
10
9
7
2
5
11А
11
5
