Charging battery pack

The PROTON XQ30 thermal imager comes with
an APS 5 rechargeable Lithium-ion battery. APS 5
batteries support USB Power Delivery fast charging
technology when using a standard charging set
(charger, USB Type-C cable, power adapter). Before
first use, make sure the battery is fully charged.

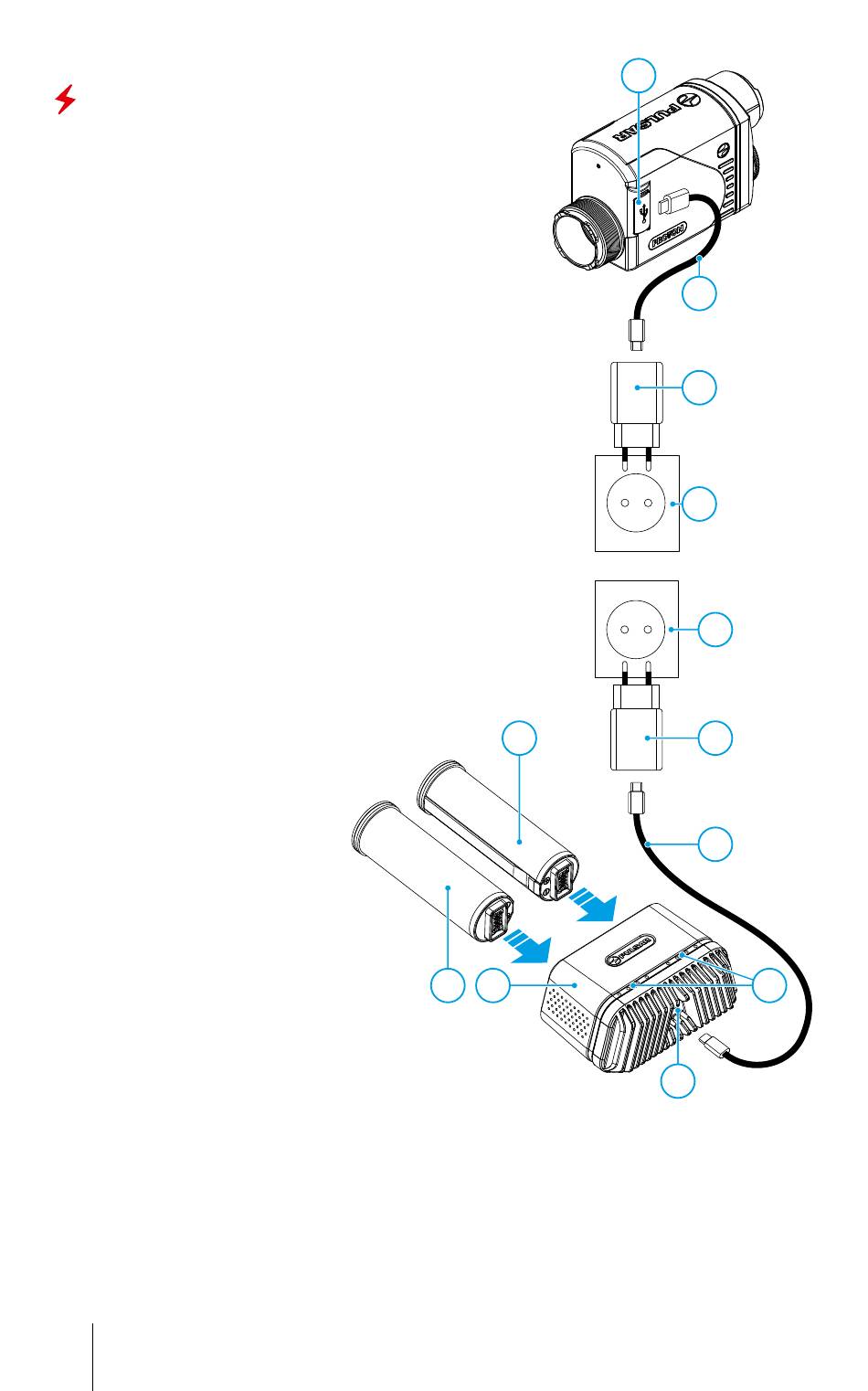

Option 1
•
Install the APS 5 battery (4) in the battery
compartment (5) of the device.
•
Connect the USB cable (22) to the USB Type-C
connector (9) of the device.
•
Connect the other end of the USB cable (22) to the
Power Adapter (23).
•
Plug the Power Adapter (23) into a 100-240 V
socket (24).
Option 2
•
Insert the APS 5 battery (4) along the guide into
the APS 5 charger (19) slot as far as it will go (see
Fig.). The APS charger is supplied with your device
and sold separately.
•
Connect the plug of the USB Type-C cable (22) to the
USB Type-C connector of the Power Adapter (21).
•
Plug the Power Adapter (23) into a 100-240 V socket
(24).
•
Connect the other end of the USB Type-C
cable (22) to the USB Type-C connector
(21) of the charger.
•
LED indicators (20) will
display the battery charge
level (see Table).
Note: Two batteries can be
charged at the same time,
a second slot is provided
for it.
