Conceptronic CKVM4P Schnellinstallationsanleitung Seite 8

ENGLISH

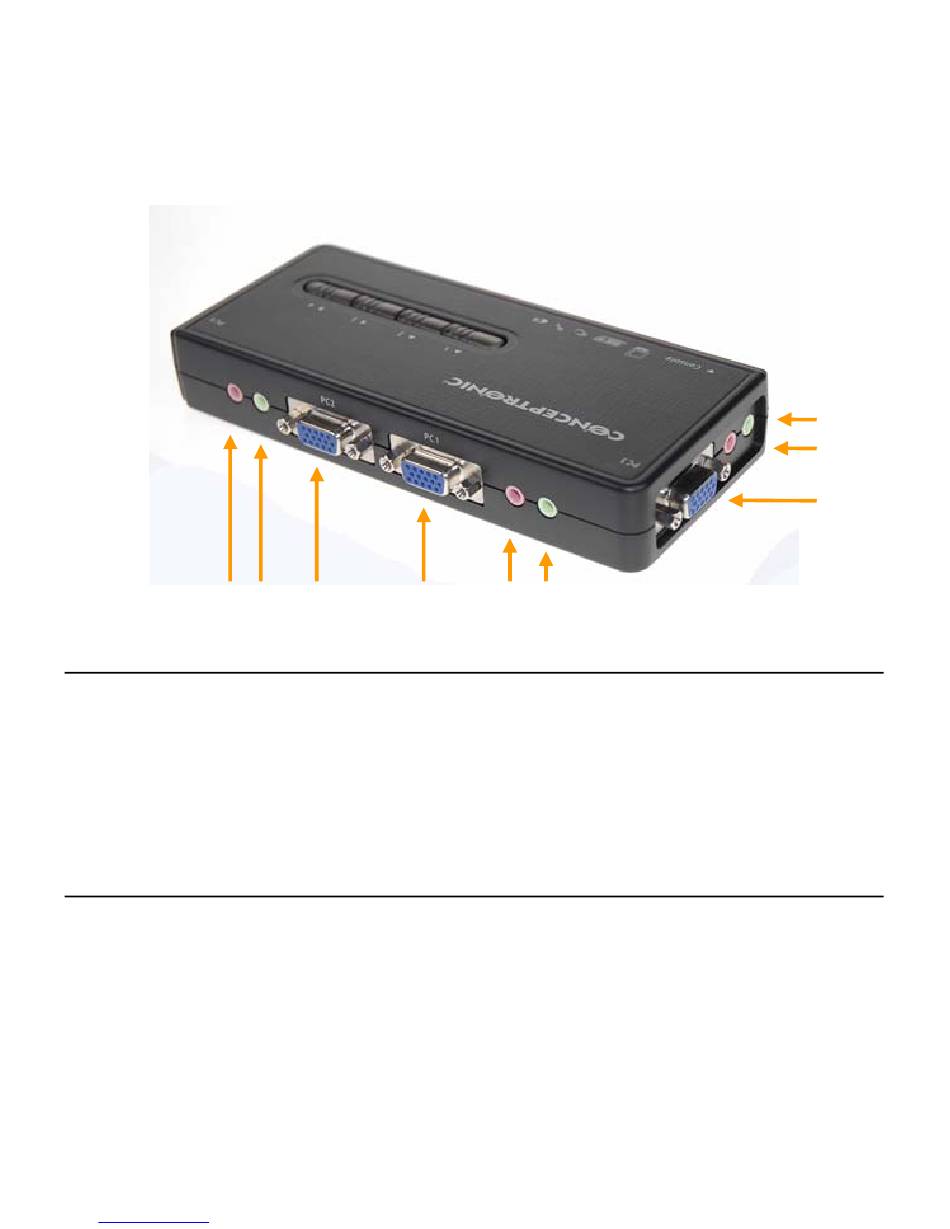

2.2 Device Explanation Back Side
Nr Description
1. Microphone (MIC) output to PC-2 Microphone (MIC) connection
2. Speaker (SPK) to PC-2 line out connection
3. Monitor (VGA) to PC-2 Monitor connection
4. Monitor (VGA) to PC-1 Monitor connection
5. Microphone (MIC) output to PC-1 Microphone (MIC) connection
6. Speaker (SPK) to PC-1 line out connection
7. Monitor (VGA) to PC-3 Monitor connection
8. Microphone (MIC) output to PC-3 Microphone (MIC) connection
9. Speaker (SPK) to PC-3 line out connection
